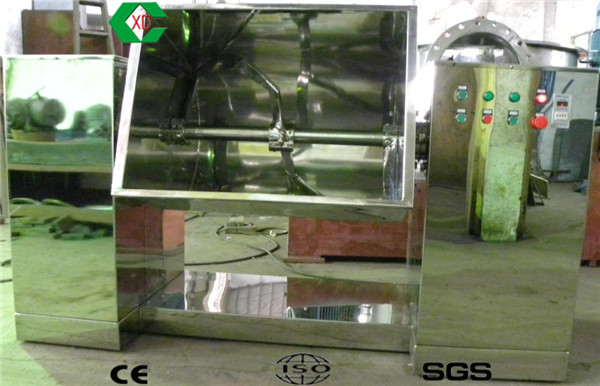

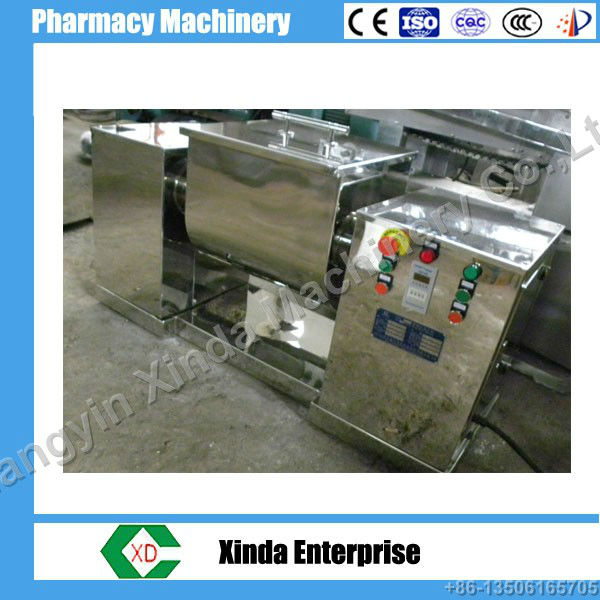

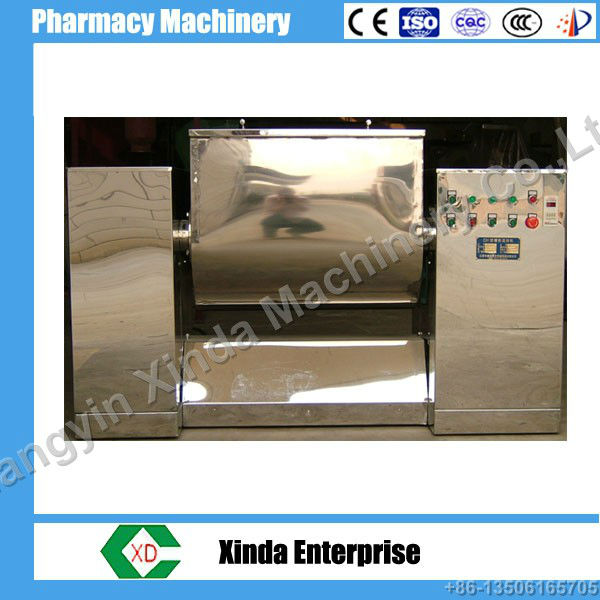

Trough Shaped Powder Food Mixing Machine
As a stainless steel horizontal mixing machine, the machine is suitable for mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.
Working Method
By driving of mechanism of the mixer, the stir paddle turns the target material to and fro to mix it evenly.Electric control is applied to set the mixing time and the mixer will stop automatically when time is up, so as to improve the mixing effect of materials.
| MODEL | CH-50 | CH-100 | CH-150 | CH-200 | CH-300 | CH-400 | CH-500 | CH-600 |
| Paddle shape | S single | |||||||
| Working volume (L) | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| mixing speed (r/min) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Stir angle (° ) | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 |
| Mixing power (kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Dumping power (kw) | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Weight(kg) | 280 | 350 | 410 | 450 | 520 | 580 | 680 | 750 |
| Overall size (L× W× H)(mm) | 1200× 500 × 950 | 1400× 580 × 1000 | 1600× 600 × 1150 | 1700× 650 × 1200 | 1800× 700 × 1250 | 2100× 750 × 1250 | 2250× 800 × 1300 | 2400× 850 × 1350 |
Solid Plywood Crate, your goods reach you saft and Sound!
If you are interested in the product, contact 2bvideo.com for more information for more information
