This equipment is new model developing base on integrated domestic and foreign vanguard technology it is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running, This machine is suitable for automatic feeding product of multi-varety multi- specifications into carton(either forblister or bottle).Adjust automatic feeding structure conveniently setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds)and feeding.leaflet detecting, canton opening and forming. product sand leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Performance and Features
International famous brand of electrical component suchas PLC touch screen frequency inverteres, etc.

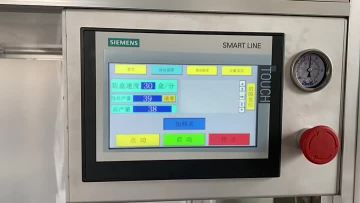

Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance, operation is easy.
|
Encasing Speed |
30-120Cartons/min |
|
|
Carton |
Quality requirement Dimension range(LxWxH) |
250-350g/㎡ Base on carton size (65-155)mmx(30-85)mmx(14-50)mm |
|
Leaflet |
Quality requirement Unfolded leaflet specification(LxW) Fold range(LxW) |
60-70g/㎡ (80-250)mmx(90-170)mm 1-4(Fold) |
|
Compressed air |
Working pressure Air consumption |
20.6mpa 120-160L/min |
|
Power supply Motor power |
220V/380V 50HZ 0.75kw |
|
|
Machine dimension Machine weight |
1200mmx990mmx1700mm About 1100kg |
|
If you are interested in the product, contact 2bvideo.com for more information for more information
