X7 Series Momentary Lock IP67 Rocker Switch

7 month ago

2 0

YESWITCH ELECTRONICS CO., LTD.

 7 year year

Product details

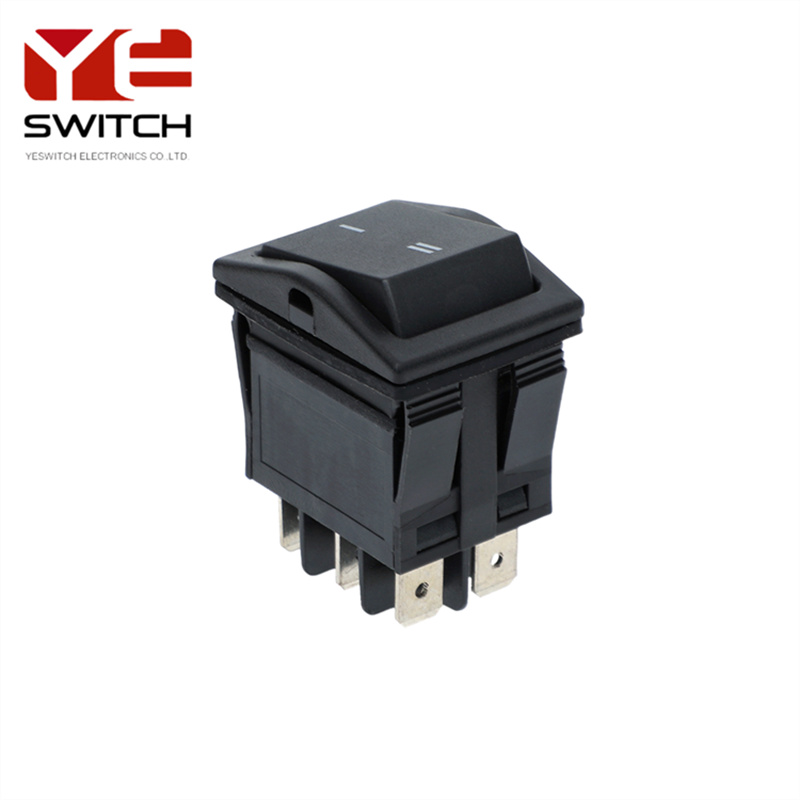

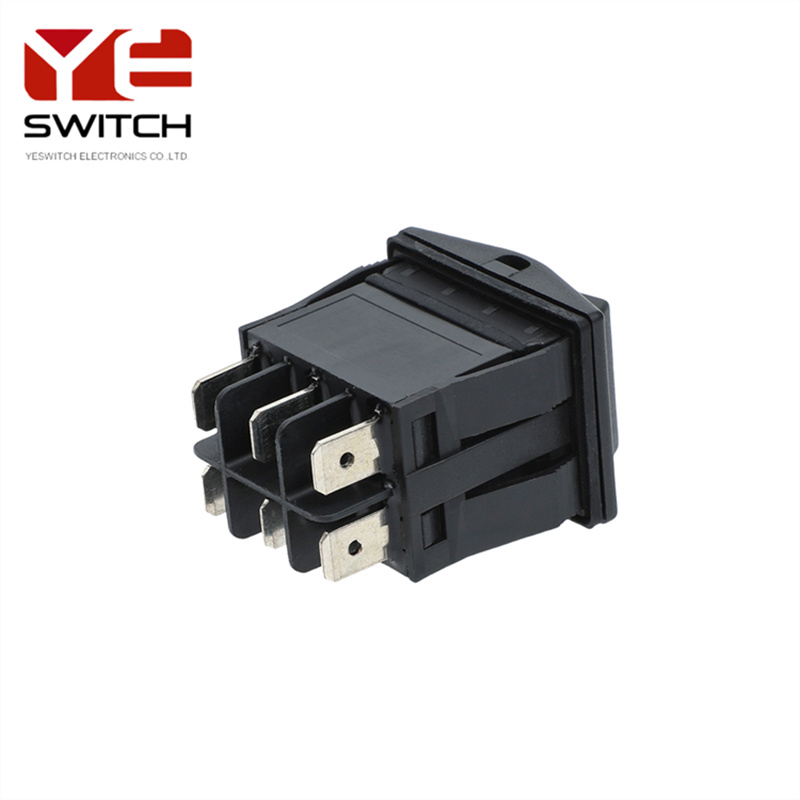

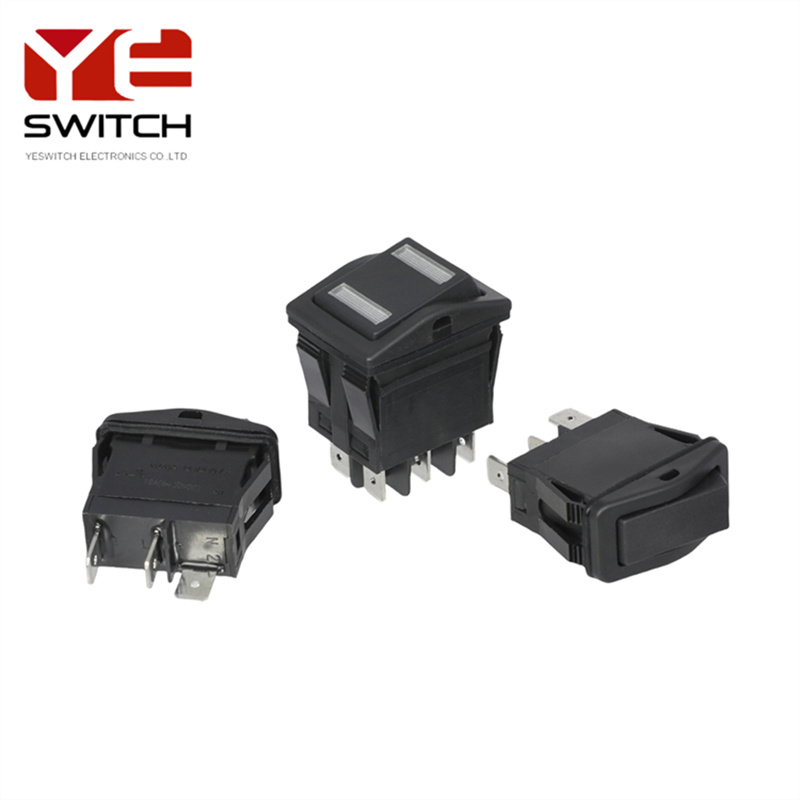

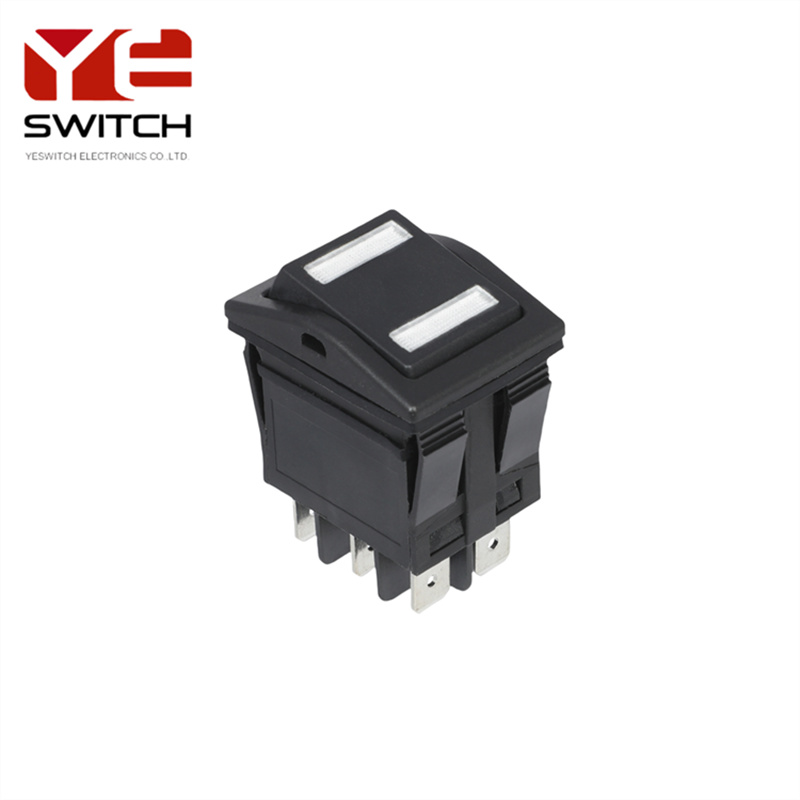

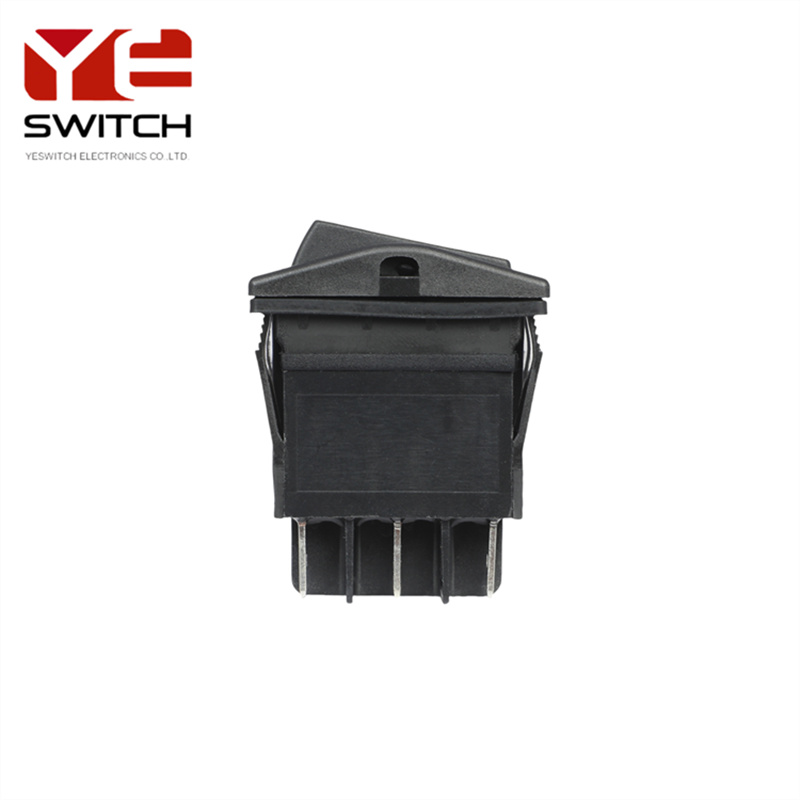

X7 Series Momentary Lock IP67 Waterproof Rocker Switch

The X7 series rocker switch is UL listed and rated to IP67 standards for total protection from dust and waterproof,which can effectively prevent water droplets, dust and other debris from entering the inside of the switch to ensure the normal use and safety performance of the switch.

The IP67 rocker switch has single pole and double pole function and moisture and dust resistant.Terminals are quick connect and solder terminal,contacts are copper alloy or silver plated copper alloy,base and actuator are black or white nylon.

The X7 series rocker switches offer styling and comfort. Oversized actuator magnifies visual appeal and the ease of user experience.The X7 series rocker switch has a high current of rated for 6(8)A 125/250VAC with cURus, 20(8)A 125/250VAC with cURus,which can meet the needs of various electrical appliances.The automotive rocker switch in non-illuminated versions featuring customizable,curved actuators.These custom automotive rocker switches come with multiple color and marking options for the actuator.

The full waterproof X7 series high current rocker switch is recommended for use in industrial controls,van conversions,marine panels,automotive,motor controls,trucks and buses.

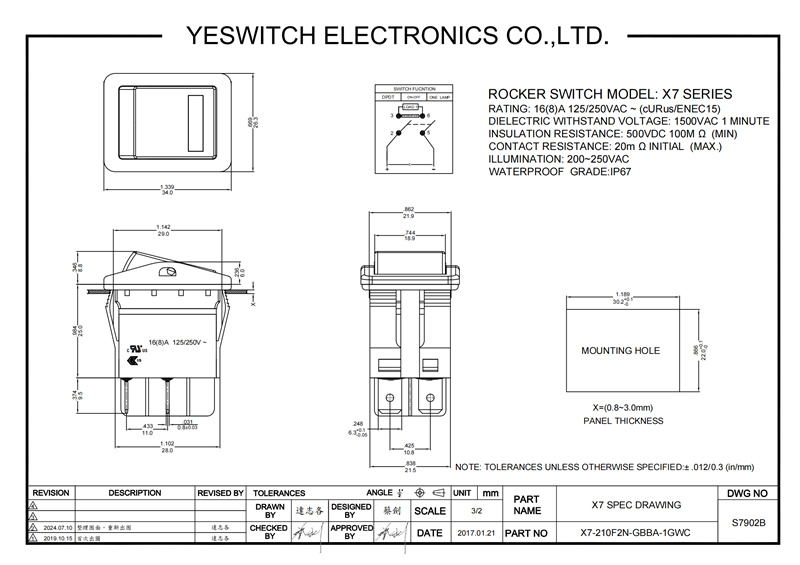

SPECIFICATION

MODEL: X7 SERIES
RATING:16(8)A125/250VAC-(cURus),20(8)A 125/250VAC~(cURus)
DIELECTRIC WITHSTAND VOLTAGE: 1500VAC 1 MINUTE
INSULATION RESISTANCE: 500VDC 100M ohm(MIN)
CONTACT RESISTANCE: 20m ohm INITIAL(MAX.)
ELECTRICAL LIFE:10,000 CYCLES
WATERPROOF GRADE:IP67
POLE:SINGLE POLE/DOUBLE POLE
TERMINAL TYPE:QUICK CONNECT/SOLDER
BASE COLOR:BLACK/WHITE
ACTUATOR COLOR:BLACK/WHITE
ILLUMINATED TYPE:NONE/LED
FUNCTION:ON-OFF/ON-ON/ON-OFF-ON/(ON)-OFF/(ON)-ON/(ON)-OFF-(ON)/(ON)-OFF-ON
