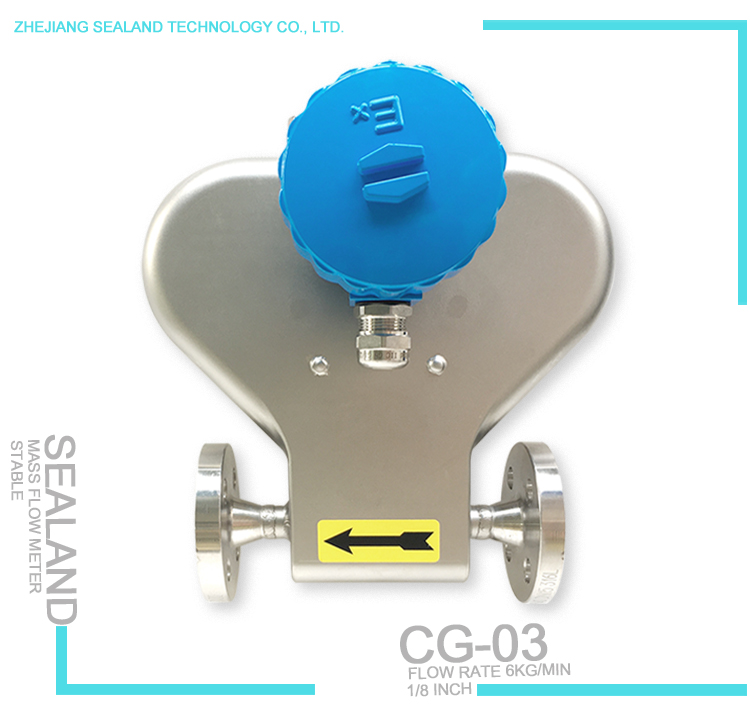

Specifications of Coriolis mass flow meter |
|
|
Model No. |
CG-03 |
|
Max. flow rate |
6kg/min |
|
Nominal diameter |
03mm (1/8 inch) |
|
Liquid accuracy |
±0.1%, ±0.15%, ±0.2%, ±0.5% |
|
Gas accuracy |
±0.5% |
|
MWP. |
4MPa |
|
Density accuracy |
0.002g/cm3 |
|
Temperature accuracy |
±1°C ± 0.5% of reading |
|
Zero stability |
0.012kg/h |
|
Repeatability |
0.05%, 0.075%, 0.1%, 0.25% |
|
Certificates |
ISO |
|
Ingress protection |
IP65/ IP67 |
|
Warranty |
2 years |
|
Packing |
1set/carton |
|
Package size |
515*305*235mm |
|
G.W. |
15.2kgs |
|
Specifications of Coriolis mass flow sensor |
|
|
Wetted parts |
Stainless steel 316L |
|
Sensor housing |
Stainless steel 304 |
|
Fluid temp. |
-70°C~+160°C, -200~+60ºC, -40~+300ºC |
|
End connection |
Customizable |
|
Ex-mark |
Ex II 2G Ex ib IIC T6...T1 Gb |
|
|
|
|
Specifications of Coriolis mass flow transmitter |
|
|
Temp. rating |
-30°C~+60°C |
|
RH |
≤95%, non condensing |
|
Atmospheric pressure |
86~106 kPa |
|
Operating voltage |
AC85~265V, DC12~24V |
|
Communication & output |
RS485 Modbus RTU, HART, 4-20mA, pulse |
|
Ex-mark |
Ex II 2G Ex db [ib] IIC T6...T1 Gb |
2 options are available, F231 with display & F210 without.
We have DN03~DN150 mass flow meter for the moment!
Model No.
Diameter
(mm)
Max. flow rate
(kg/min)
MWP.
(MPa)
Accuracy grade
(%)
Zero stability
(kg/h)
CG-03
03
6
4
0.1/ 0.2/ 0.5
0.012
CG-06
06
18
4
0.1/ 0.2/ 0.5
0.04
CG-15
15
50
25
0.1/ 0.2/ 0.5
0.12
CNG-20
20
120
25
0.1/ 0.2/ 0.5
0.36
CG-25
25
200
4
0.1/ 0.2/ 0.5
0.62
CG-40
40
500
4
0.1/ 0.2/ 0.5
1.60
CG-50
50
1000
4
0.1/ 0.2/ 0.5
2.38
CG-80
80
3000
4
0.1/ 0.2/ 0.5
7.05
CG-100
100
3600
4
0.1/ 0.2/ 0.5
12.00
CG-150
150
8000
4
0.1/ 0.2/ 0.5
50.00
Applications of Coriolis mass flow meter
Sealand Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
Advantages of Coriolis mass flow meter
1. Maintenance-free
2. High accuracy & reliability
3. Shows many parameters simultaneously, such as mass flow, temperature & density
4. Compact design with no moving parts, no special mounting and no flow conditioning required.
ATEX, IECEx, CE, SIL and all Chinese certificates approved.
Packed with specific foam, professional & safe.
Zhejiang Sealand Technology Co. Ltd. is a professional hi-tech enterprise, specialized in development, production & sales of Coriolis mass flow meter, located in Binhai ETDZ, Wenzhou, Zhejiang, China.
Calibration Lab of Coriolis mass flowmeter
The lab is equipped with world famous brand METTLER TOLEDO scales with accuracy 0.014%, ILAC approved.
Mass production of Coriolis mass flow meter
Why Sealand?
1. Sealand is professional, with senior engineers from the first research team in this field in China, and junior one from college, to keep improving.
2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here; even the production-line workers have worked here for more than 5 years.
3. Sealand strictly controls the quality from raw material to finished products, and all products will be inspected and tested for 3 times before shipment.
4. The warranty is 2 years, but technical support is always available.
FAQ.
1.Customer: May I release trial order, 1 pc for example?
Sealand: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
