Product details

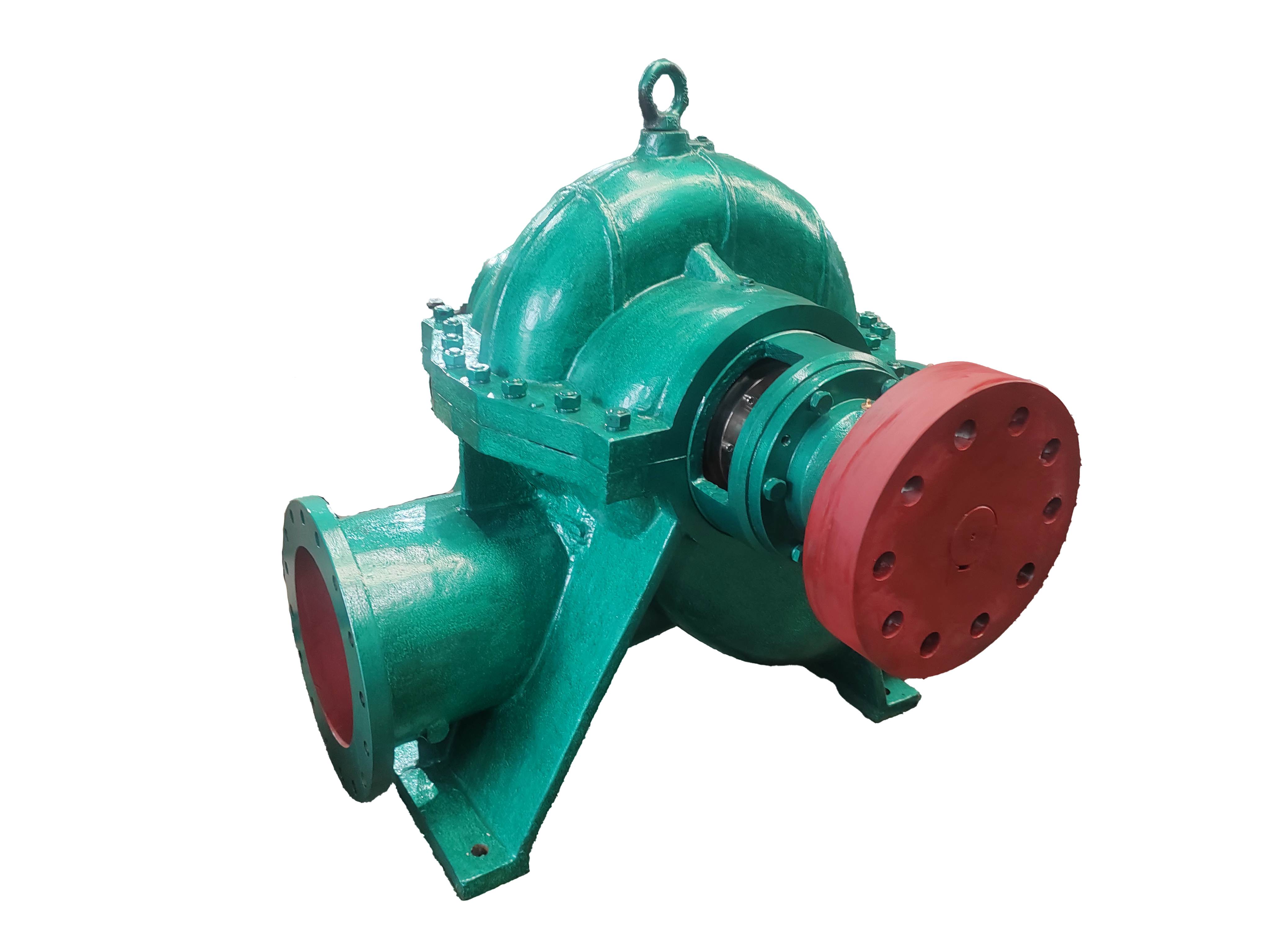

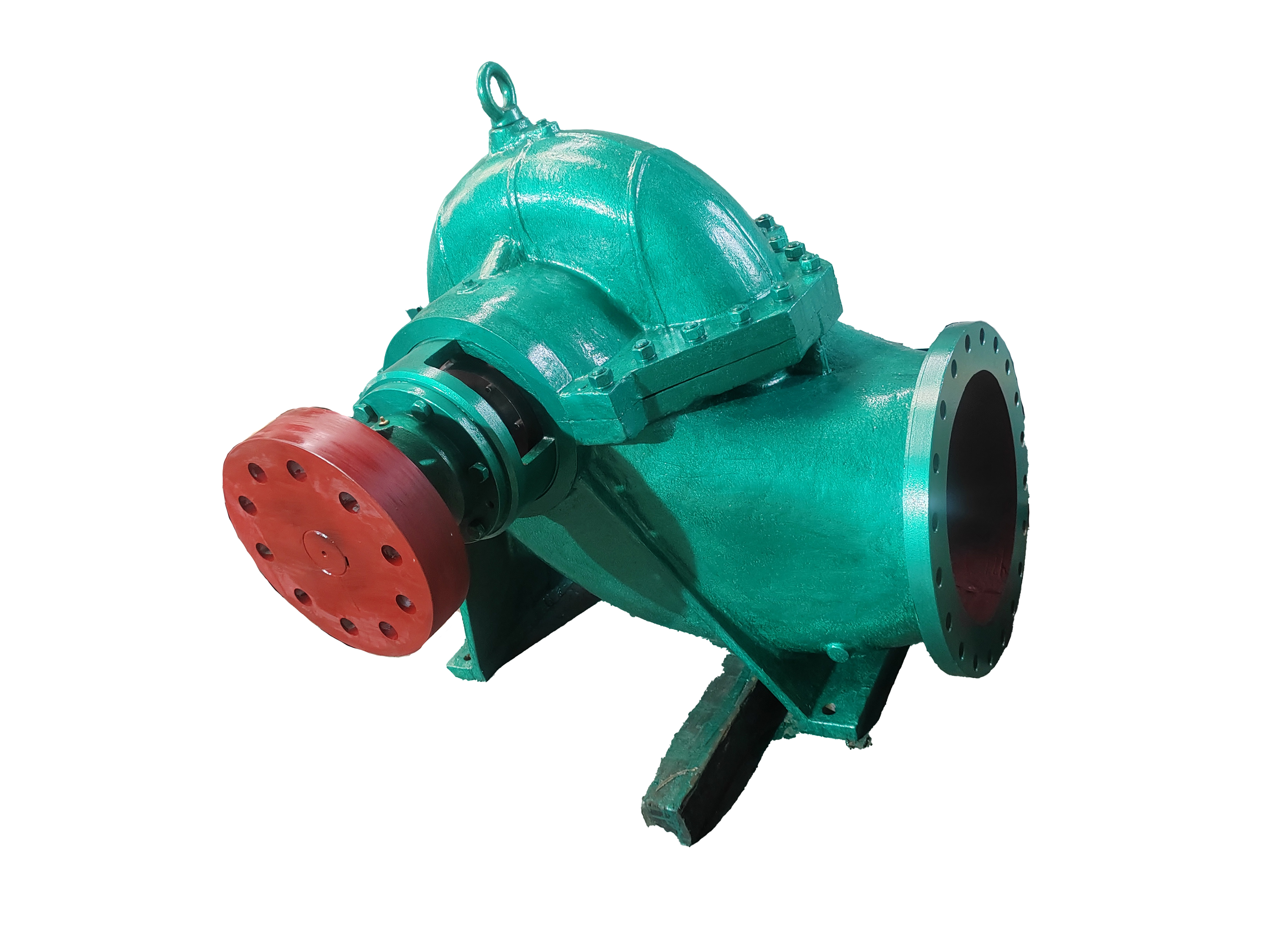

Single Stage Double Suction Horizontal Open Centrifugal Pump Overview

This pump is a crucial part of industrial pump types, designed with a horizontal orientation. It features a single-stage impeller and double suction mechanism, which allows for efficient fluid handling.
pump8.3pump8.2
Material Characteristics

Typically, the pump casing is made of cast iron or stainless steel. Cast iron offers good durability and cost-effectiveness, suitable for general industrial applications. Stainless steel provides excellent corrosion resistance, crucial for handling corrosive liquids like chemicals or seawater. The impeller is often aluminum bronze or stainless steel, ensuring strength and resistance to wear, maintaining performance over time.

Product Advantages

1. High Efficiency: The double suction design balances axial forces, reducing energy consumption and enhancing overall efficiency compared to single suction pumps.

2. Large Flow Capacity: It can handle significant volumes of fluid, making it ideal for applications requiring high flow rates in industrial processes.

3. Stable Operation: Horizontal open design facilitates easy maintenance. Mechanical seals for pumps, which are carefully selected, prevent leakage, ensuring reliable and continuous operation.

Application Areas

Widely used in water supply and drainage systems in cities, power plants for cooling water circulation, and industrial sectors such as petrochemical plants for transferring various liquids, including crude oil and refined products.

Product Specifications & Customization Requirements

Available in a range of sizes, with different flow rates from 110m³ to 7590m³ cubic meters per hour and head heights from 10m to 140m meters. Customization is possible based on specific industrial needs. For example, different materials can be chosen for extreme operating conditions. Special mechanical seal configurations can be designed to meet higher pressure or corrosive environment demands, ensuring the horizontal industrial pump aligns perfectly with the task at hand.
Contact Now

If you are interested in the product, contact 2bvideo.com for more information for more information
