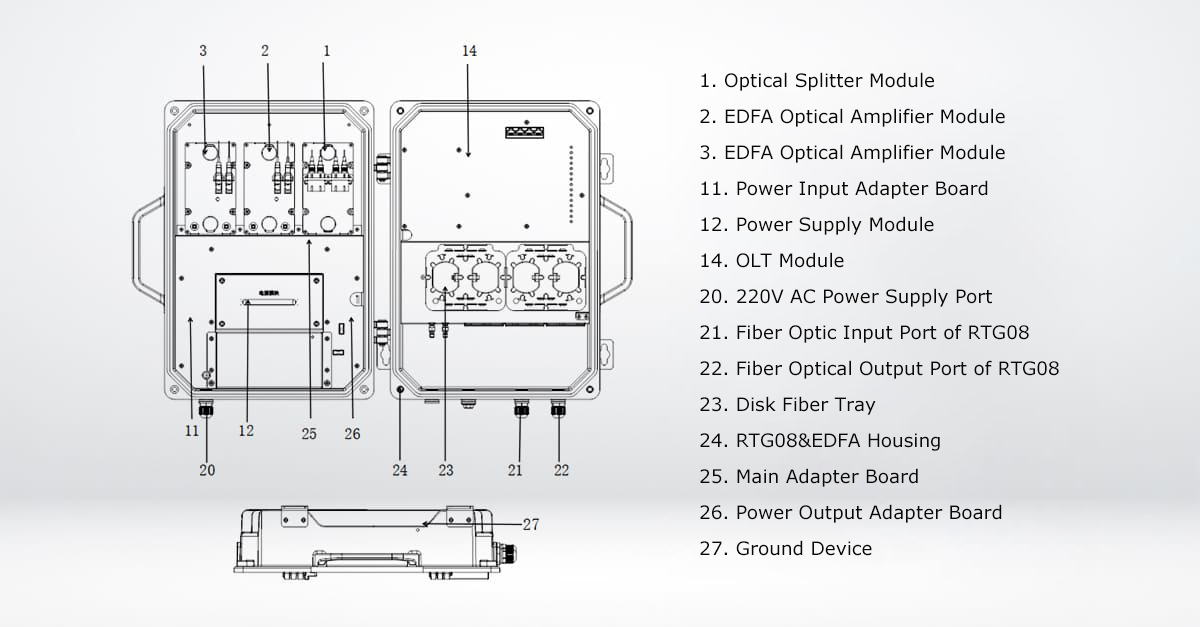

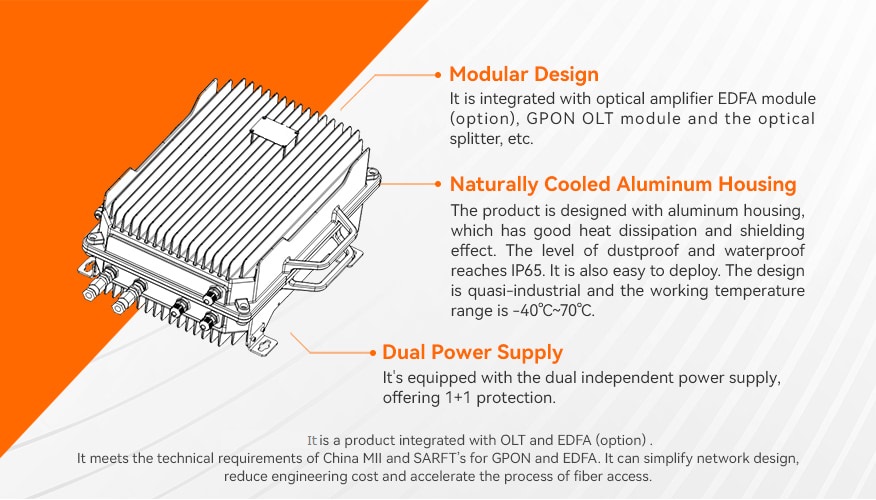

RTG08&EDFA GPON OLT with EDFA is the outdoor type GPON OLT product, with interface 8*GPON+2*SFP+2*SFP+, and an integrated EDFA (8ports*22dBm ), which is appropriate to be deployed in wild environment. This OLT Series can be used for “Triple-Play” , VPN, IP Camera, Enterprise LAN and ICT applications.
| GPON OLT Module | ||
| Chassis Type | Metal Shell Box (Outdoor Mounted) | |
| Uplink Port | SFP(GE) | 2*GE(SFP) |
| SFP+(10GE) | 2*10GE(SFP+) | |
| GPON Port | Quantity | 8 |
| Physical Interface | SFP Slot | |
| Interface type Class | Class C++/Class C+++ | |
| Max splitting ratio | 1:128 | |
| PON port attribute | Transmission Distance | 20KM |
| Speed | Upstream：1.244G; Downstream：2.488G | |
| Wavelength | TX 1490nm, RX 1310nm | |
| Interface | SC/UPC | |
| Fiber Type | 9/125μm SMF | |
| Backplane Bandwidth (Gbps) | 104 | |
| Port Forwarding Rate(Mpps) | 65.472 | |
| Management Ports | 1*10/100/1000BASE-T out-band port, 1*CONSOLE port | |
| Optical Amplifier EDFA Module | ||
| Working wavelength | 1535nm－1565nm | |
| Input optical power | -3dBm － +10dBm(ACC Mode) / -6dBm － +10dBm(APC Mode) | |
| Output optical power | stability ≤±0.25dB | |
| Output optical power | 13 dBm -22dBm | |
| Noise figure | ≤5.0dB(@Input optical power is +3dBm) | |
| Input /output reflection loss | ≥45dB | |
| Input/output pump light leakage | ≤-30dBm | |
| C/CTB | ≥63dB | EDFA input optical power is 3dBm, and the optical link composed of optical transmitter and receiver is tested. |
| C/CSO | ≥62dB | |
| C/N | ≥50dB | |
| Management Mode | WEB/SNMP/Telnet/CLI/SSHv2 | |
