The introduction of stainless steel bag filter:
Stainless steel bag filters range from single-bag, double-bag and multi-bag filters, all of which are closed filters, and their working principle is pressure filtration. The whole bag filter system includes three parts: filter container, support basket and filter bag. The liquid to be filtered flows in from the top of the filter bag supported by the support basket, which makes the liquid evenly distributed on the entire filter surface, so that the flow distribution in the entire filter medium is a uniform surface without the negative effect of turbulence.
Function and characteristics of stainless steel bag filter:
1. The filter bag side leakage machine has a small filter, which effectively guarantees the filter quality.
2. The bag filter can bear greater working pressure, with small pressure loss, low operating cost and obvious energy saving effect.
3. The filtration accuracy of the filter bag has been continuously improved, and has reached 0.5um at present
4. The bag filter has large processing capacity, small volume and large dirt holding capacity.
5. Based on the working principle and structure of the bag filter system, it is convenient and quick to replace the filter bag, and the filter is free of cleaning, saving labor and time. The filter bag can be used repeatedly after cleaning, saving cost. The bag filter has a wide range of applications, flexible use and various installation methods.
Technical parameters of stainless steel bag filter:
1. Shell material: stainless steel 304,316L
2. Shell diameter: Φ167-Φ1000mm
3. Shell height: 410-1500mm
4. Reference flow: 10T/H-300T/H
5. Working pressure: 1.0Mpa
6. Number of filter bags: 1-10
7. Interface mode: clamp type, flange type (ordinary flange, movable flange)
Application range of stainless steel bag filter:
Paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solution, milk, mineral water, hot melt, latex, industrial water, sugar water, resin, ink, industrial wastewater, fruit juice, edible Oils and waxes.

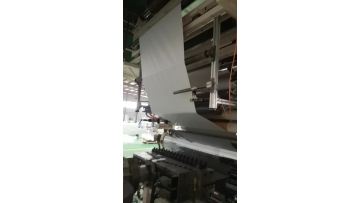

Factory shot:
Success case:
