Edm Die Sinking Machine Product Description
| Item | Unit | D7125 | D7132 | D7140 | D7145 | D7150 | D7160 |
| Worktable size | mm | 400x250 | 500x200 | 650x400 | 720x450 | 800x500 | 1000x600 |
| Worktank size | mm | 1030x520x320 | 1030x560x320 | 1050x630x410 | 1400x710x410 | 1450x780x500 | 1680x850x580 |
| X axis travel | mm | 250 | 320 | 400 | 450 | 500 | 600 |
| Y axis travel | mm | 150 | 250 | 300 | 350 | 400 | 450 |
| Z axis travel | mm | 240 | 240+240 | 250+250 | 250+250 | 250+300 | 250+350 |
|
Distance between Electrode &Worktable |
mm | 400 | 550 | 650 | 680 | 700 | 800 |
| Max. Workpiece Weight | kg | 250 | 550 | 750 | 800 | 800 | 1000 |
| Max. Electrode Weight | kg | 50 | 60 | 70 | 80 | 100 | 150 |
| Machine Weight | kg | 1100 | 1200 | 1800 | 2000 | 2200 | 3000 |
| Machine Dimension | mm |
1100x1200x 2040 |
1100x1400x 2120 |
1100x1200x 2040 |
1500x1500x 2250 |
1600x1500x 2300 |
1700x1600x 2400 |
| Homepage | Get back to homepage! | Price | Get the latest price here! | ||||

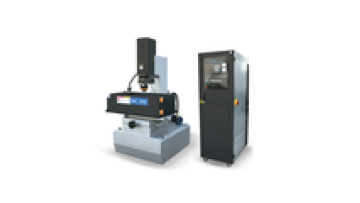

D71 SERIES DIE SINKING EDM:
This machine is used with the pulse electrical cabinet. Z axis is driven by Japanese Sanyo DC servo motor with the character of numerical control.
X,Y axes adopt precise ball screw and digital read out to identify coordinate, which insure higher positional accuracy of coordinate.
The electrical cabinet adots the most advanced industrial control board with strong function, high stability and easy operation. As long as you input a few parameters such as z-axis depth, it will bring up suitable data from the rich expert database system, processing from rough machining to finish machining automatically.
Cnc Edm Die Sinking Machine Main Features
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
1. 20 years experience in research, development and manufacture of cnc machine tool.
2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
Packing Details : To be packed in wooden cases,suitable for export
Delivery Details : 15-20 days after receipt of deposit
Q: What information will you need to make the proposal?
A: The worktable size and worktable travel, your special requirements.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 20 years.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for professional operation training.
