We are looking for dealers agent worldwide, Our company produce the Excavator and some Excavator spare parts. If you have business at these area, please contact us, we have the power and experience to make both of us with good profit.
Basic information：
Model:XN10,
Machine weight: 880kg
Bucket capacity: 0.025 cbm
Max digging depth: 1650mm
Features:
This product with stunning appearance,immoderate configuration,superior performance,low fuel consumption,sizable running range,it's miles suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments,digging the hollow for tree planting of fruit-land nurseries,concrete pavement crushing,sand-gravel cloth blending,manufacturing paintings inside the slim location and so on.use the short hitch can add the attachment system,like auger,hydraulic hammer,loading bucket,gripper and so forth.it may reduce safety and running costs,liberate the group of workers,beautify the mechanization,low funding,excessive flow back.

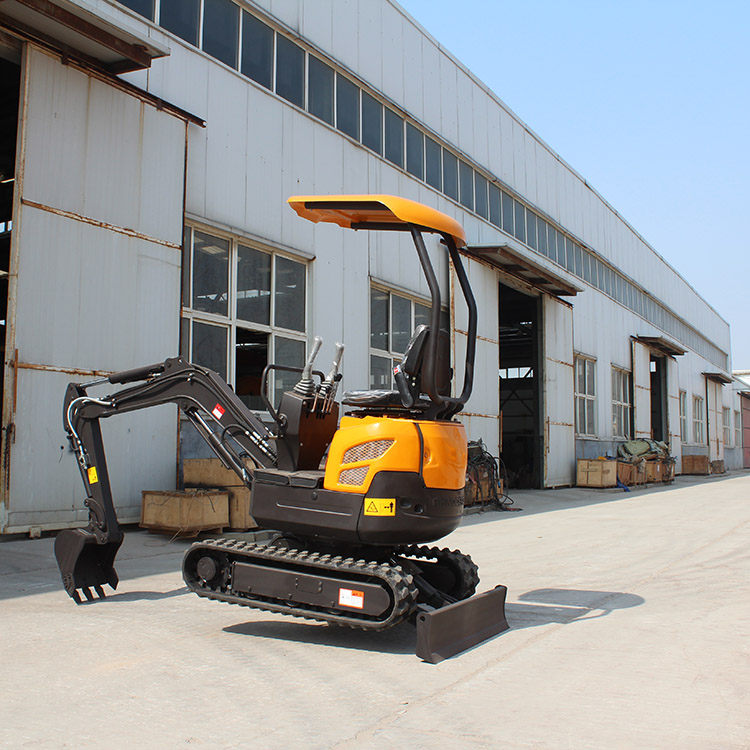

Rhinoceros mini excavator XN10 general information:
Brand
RHINOCEROS
Operating Weight
880kg
Digging bucket capacity
0.025cbm/120kg
Digging bucket width
350mm, can add narrow bucket is 200mm
Engine
CHANGCHAI (KD192FAM)
Rated power
8.6kw/3600r/min
Displacement
6.8ml/r
Bore stroke
single cylinder, fan cool
Main pump
SAISIDA
Valve
BEIFANG
Swing motor
SJ-TECH (MP-1-160)
Traveling motor
KERSEN (OMS-2450)
MAIN DEMENSIONS
Overall dimension( LxWxH)
2770x896x1490 mm
Wheelbase
910 mm
Total length of track on land
1230mm
Platform ground clearance
380 mm
Platform back turning radius
784 mm
Chassis width
896 mm
Track width
180 mm
Chassis ground clearance
132 mm
Track height
320 mm
OPERATING RANGE
Max. Digging depth
1650 mm
Max. Vertical digging depth
1375 mm
Max. Digging height
2610 mm
Max. Dumping height
1850 mm
Max. Digging radius on ground
2850 mm
Min. Rotation radius
1330 mm
Max. Upgrade height of bulldozer blade
345 mm
Max. Digging depth of bulldozer blade
255 mm

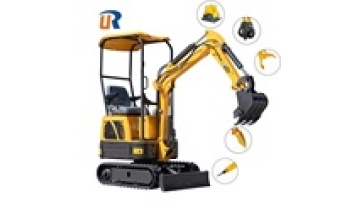

Mini excavator accessoires
Packaging& Shipping:
Company information:
Shandong Ken Stone Heavy Machinery Co.,Ltd since 1995 Years,2 factories,3 companies,700 workers,50000 m² workshop,more than 12 years export experience,We are a professional manufacturer of construction machinery, engineering machinery and trucks in china, the machines cover wheel excavator 5-15 ton, mini and big crawler excavator 6 -45 ton , backhoe loader 5-7 ton, wheel loader 0.5-5ton, concrete pump 21-55 meter, small trucks and mini dump. So i am confident there must be one model can meet to your needs. Most of the machines are with CE, TUV certificate,company ISO certificate. Every years more than 2000 units mini excavators sell in Europe market,1000 units sell in Australia market,more than 500 units to US ,Canada market.
