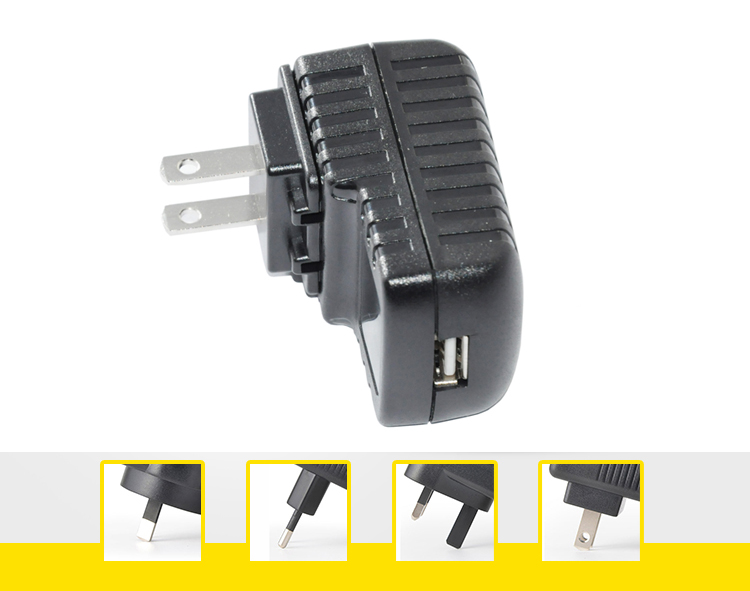

The 5V 2 AC/DC USB power adapter for devices with 5.5mm*2.1mm power jack,AC plugs are interchangeable type, we have US EU AU and UK plugs for replacement,it is widly applicated to such as Foscam FI9831W/FI8918W, Led strip lights, CCTV camera, CCTV monitor tester, keyboards, routers, tablets, USB hub, Hive hub.The AC to DC 5V 2A power supply gets official certification, which greatly ensures a safe charging to your devices.
Note: Please don't use this 5V 2A Power Supply under any wet condition.
| Specifications | ||
| Input Voltage Range | VAC | 100-240Vac 50/60Hz,1.0a |
| Inrush Current at 110VAC, 25℃ | A | |
| Output | A | 5v 2.0a, 10W |
| Power Factor | - | Meets EN62368-3-2 |
| Leakage Current(220VAC 60Hz) | mA | 200ma |
| Hold Up Time at 110VAC input, full load | ms | 2s |
| Temperature Coefficient | ℃ | ±0.05%/℃ |
| Voltage Accuracy | % | ±2% |
| Adjustment Range | - | None |
| Min. Load | A | None |
| Total Regulation | - | ±5% |
| Ripple & Noise | mV | 120mV |
| Short Circuit Protection | % | Continuous - hiccup mode |
| Over Voltage Protection | ℃ | 110-150% of nominal (Cycle input power to reset) |
| Efficiency at Average Load | - | 88% min |
| Operation Temperature | - | 0 to +60℃, derating linearly to 50% load above 40℃ |
| Storage Temperature | - | -10 to +85℃ |
| Humidity (non condensing) | - | 10-90% RH |
| Cooling | - | Convection |
| Withstand Voltage | - | Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground) |
| Vibration (non condensing) | - | 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour) |
| Shock | - | < 196.1 m/s2 (20G) |
| Safety Agency Certifications | - | UL60950-1, EN609501-1, IEC60950-1, CE Mark |
| DOE Regulation | - | VI |
| Off-Load Power Consumption | mW | <210mV |
| Conducted & Radiated EMI | - | EN55023-B, FCC Class B |
| Immunity | - | EN55024 |
| Weight | G | ≈110g |
| Size(WxLxH) | mm | 68x40x48mm |
| Cable Length and Thickness | mm | 1200mm |
| AC Input Connector | - | AU EU UK US KR JP AC Plug (Accept more request) |
| Output Connector | mm | 5.5x2.1mm (Accept more request) |
| MTBF 100%, 25℃ | Hours | 50,000 hours |
| Warranty | Years | 2 years |
|
Qty (pcs) |
Delivery Time (working days) |
|
less than 100 |
5-7 |
|
100-800 |
7-10 |
|
800-3K |
10-12 |
|
3K-10K |
15-18 |
|
10K-20k |
20-22 |
|
*Data is a reference for buyer, Specification situation will be given to you after asking us. |
|
|
Remark |
|
|
1.Samples (less than 10pcs) can be provied, lead time with 3days. |
|
|
2.Please carefully check all the details before you take a order. |
|
