Product Description

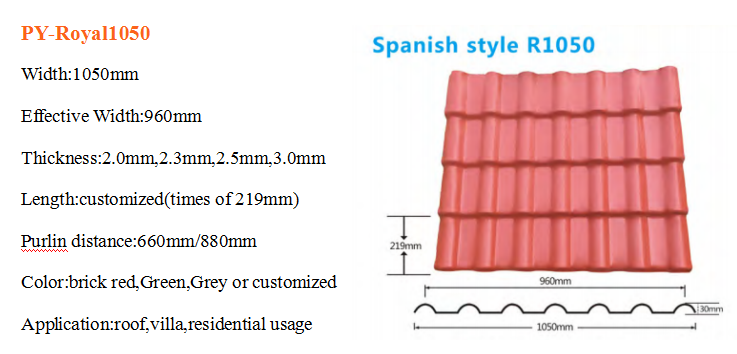

Spanish pvc plastic roof tile R1050 is a new design over the years.The width is 1050mm, the
length could be customized as times of 219mm. The common thickness is 2.5mm and 3.0mm.

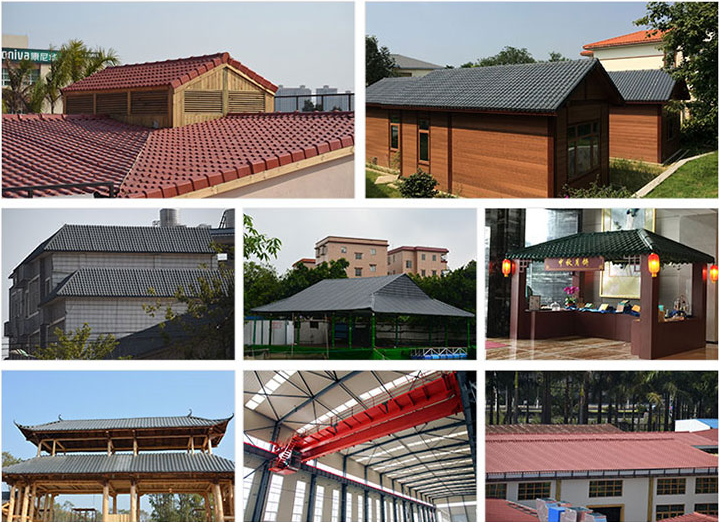

These are our customers’ projects.
Spanish pvc plastic roof tile is a good replacement of Spanish clay roof tile. It is suitable very
much for most residential house.
Technical Data
|
Material |
ASA PVC |
|
Length |
Max11.8m |
|
Width |
1050mm |
|
Thickness |
2.2mm, 2.3mm, 2.5mm, 3.0mm |
|
MOQ |
200 Square meters |
|
Quantity in one container |
4500-10000 Square meters |
|
Warranty Period |
10 years |
|
Applications |
villa, residential house, prefabricated house, pavilion, etc |
|
Screws and Caps |
4 sets for one square meter |
|

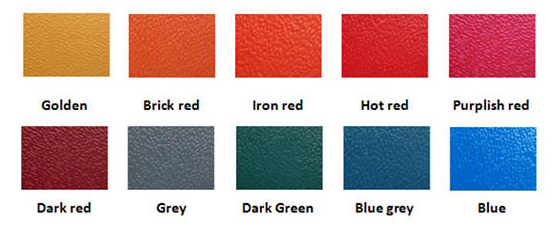

Common Colors |
|

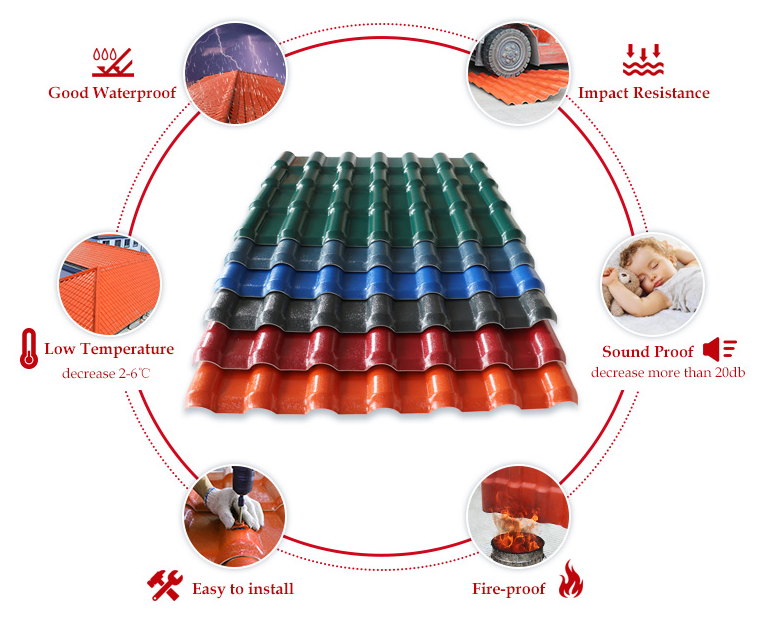

As a professional manufacturer of pvc roof sheet, we committed to solving various problems.
1.Heat insulation
The temperature difference indoor and outdoor could reach 8 to 10ºC. ASA PVC is 4 layers of PVC,
this is good for heat insulation.
2.Fire proof
PVC roof sheet is a kind of safe building material, it has passed the building fire protection grade.
3.Color stable
ASA coating could keep the color.
4.Water proof
Water cannot pass through the pvc roof sheet.
5.Anti-corrosive
PVC roof sheet is highly resistant against chemical corrosion of acid, alkali, etc.
6.Anti-impact
PVC roof sheet has excellent load bearing performance and could withstand 150kgs.
7.Sound proof
PVC roof sheet has much less noise than other roof materials for example when it rains. lt can
make noise 30db less than steel roof.

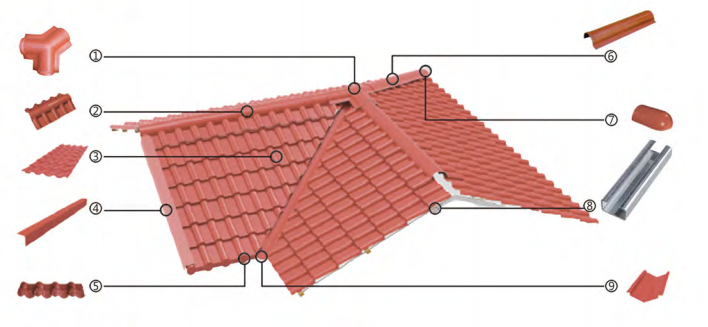

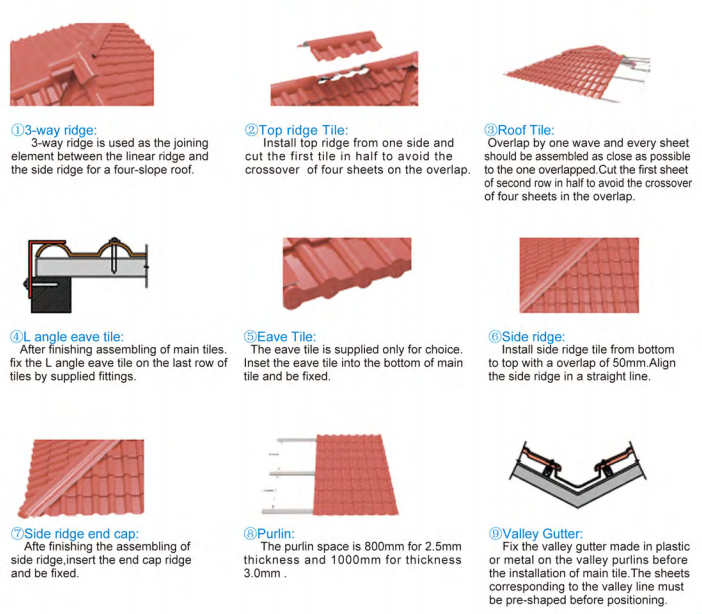

1.There way ridge:
3-way ridge is used as the joining the element side ridge between for a the linear four-slope
ridge roof.
2.Top ridge Tile ridge:
Install top ridge from one side cut the first tile in half to avoid the crossover of four sheets
on the overlap.
3.L angle eave tile:
After finishing assembling of main tiles. fix the L angle eave tile on the last row of tiles by supplied fittings.
4.Eave Tile:
The eave tile is supplied only for choice. Inset the eave tile into the bottom of main tile and be fixed.
5.Side ridge:
Install side ridge tile from bottom to top with a overlap of 50mm. Align the side ridge in a straight line.
6.Side ridge end cap:
After finishing the assembling of the side ridge,insert the end cap ridge and be fixed.
7.The Purlin:
The purlin space is 800mm for 2.5mm thickness and 1000mm for thickness 3.0mm.
8.Valley Gutter:
Fix the valley gutter made in plastic or metal on the of valley purlins before the installation of main
tile. The sheets corresponding to the valley line must be pte-shaped before positioning.

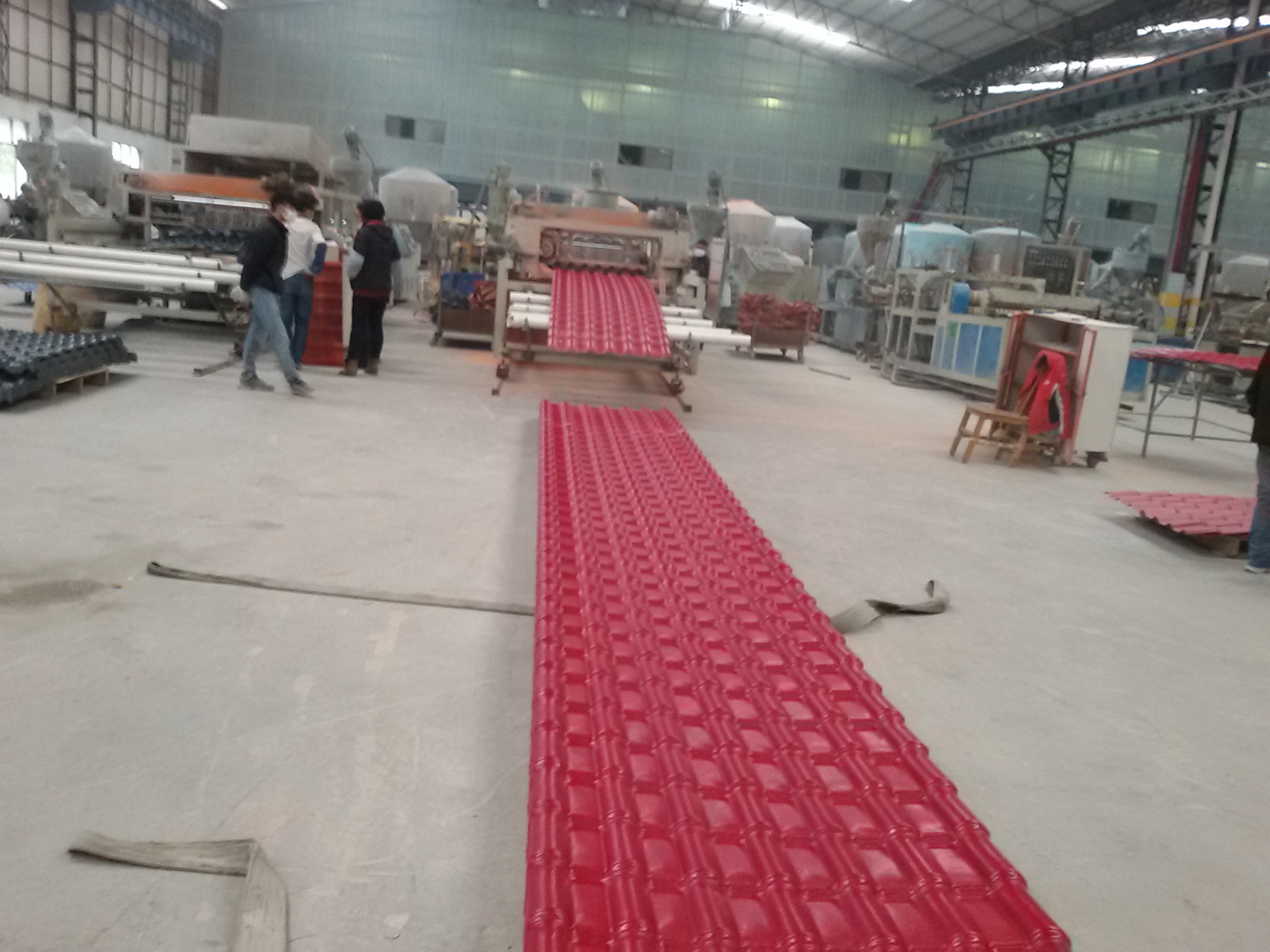

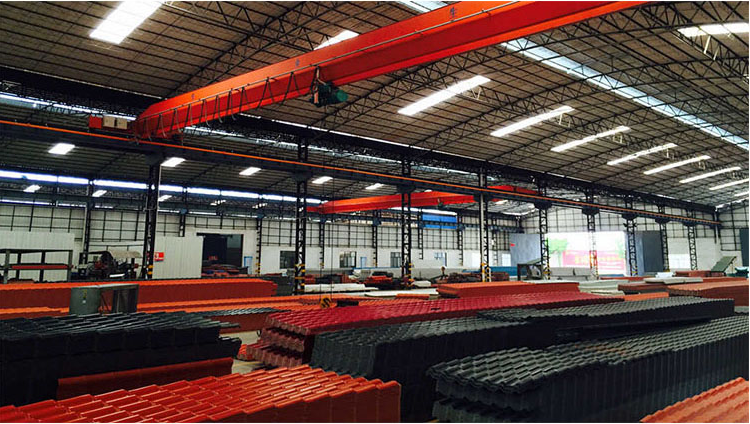

1. Factory's Scale
Area covered 25000 m2 , month capacity 100 containers, 200 skilled employ and 22 production lines.
2. Sales Volume
Occupy 35% market share, sales $16.2 million yearly, ship container monthly, and continuous supply
to large distributors.
3. Guarantee and Quick feedback for after-sales
The warranty period of our product is 10 years.
Q1. Can I have a sample?
A: Yes, free samples are available, we only need customer to afford the express freight.
Q2. What category do you have?
A: We mainly have Spanish and Roma styles for residential house, PVC trapezoidal and wave styles for
factory and warehouse, PVC hollow roof&wall sheet for kinds of buildings, PVC translucent roof sheet
for day lighting and so on.
