Waste Paper Hydrapulper Convey Equipment Belt Chain Conveyor

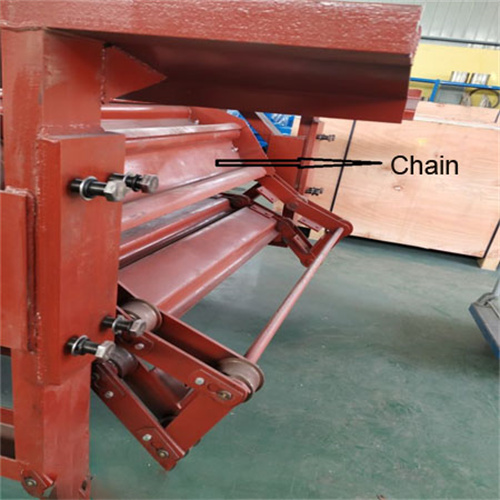

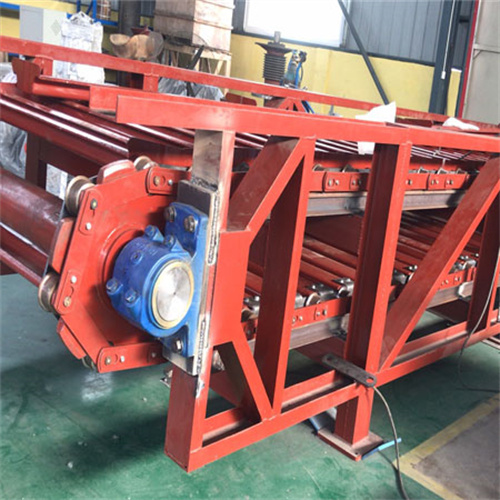

Chain conveyor is used for conveying waste paper and pulp board to the pulper. The conveying speed is adjustable.
Conveyor Width 1200-2400mm and the angel is ≤30°.
Chain Converyor Belt Introduction:
Feeding Chain Conveyor also called Chain Conveyor ,generally connect with Hydrapulper or Mid Consistency Pulper or High Consistency Pulper, for paper mill uses the continuous or intermittent movement of the chain to convey various weight items, and also can convey various bulk material, various cartons, bags and other single pieces of goods in a little weight. In the paper industry, it is mainly used to transport such materials as scattered or bundled paper pulp and waste paper plate.
Chain Conveyor Belt Technical Details：
|
Type |
HT-1200 |
HT-1400 |
HT-1600 |
HT-1800 |
HT-2000 |
HT-2200 |
HT-2400 |
|
Width of conveyor: mm |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
2400 |
|
Conveying speed:m/min |
0-6 |
||||||
|
Inclined angle: ° |
20-25 |
||||||
|
Power: kw |
11-15 |
15-22 |
22-30 |
30-37 |
37-45 |
||
1. Trough plate punch forming which high strength and excellent in crushing effect.
2. Chain board adopts closed design to prevent material leaking.
3. Two rows of idler traction chain and hollow roller shaft,and oil can be injected from pin roll to shaft sleeve and wear-resistant zinc-copper bushing.
4. Two rows of chain adopt long axis to prevent chain running deviation.
5. Chain wheel adopts cast steel to improve wear-resistant.
6. Raw material feeding plate adopts V design( more than effective conveying width 400mm) to improve raw material throughput
7. Orbit type running,operate steadily and reliably, with low friction and low power consumption.
If you are looking for any Paper machine spare parts, Machine or spare parts for stock preparation, pls do not hesitate to let us know.
Pre-Sales Service:
1. Offering comprehensive technical and business consultation services.
2. Proposing the most suitable scheme and equipment for our clients.
3. Designing and fabricating targeted products according to the special requirements of clients.
4. Training periodically high qualified service technician.
After-Sales Service:
1. Highly inspecting equipment in every working procedure,quality comes first.
2. Fast & Safe delivery.
3. Assisting our clients for foundation construction of equipment.
4. Dispatching engineers to install and debug equipment.
5. Training the first-line operators on site.
6. Regularly visit clients to solve production problems.
7. Providing good life-long maintenance service.
8. Providing technical service with a technical service team.
