Stainless Steel Upflow Coarse Pressure Screen For Pulping
Up Flow Pressure Screen is mainly used for coarse and fine screening of waste paper pulp in stock preparation system.
Upflow Pressure Screen Feature
1. Adopt up-flow structure: pulp inflow from bottom, heavy impurities are discharged from the bottom and light impurities from the top.
2. It shortens the dwell time of impurities in the screening area and avoids the abrasion to rotor and screen basket. So, it can prolong the service life of rotor and screen basket.
Huatao supply high quality pressure screen for your choice
1. Upflow presssure screen
Application: Used for coarse screening and fine screening of the deinking pulp,waste paper pulp.
2. Outflow presssure screen
Application: Outflow pressure screen used for coarse screening and fine screening of the chemical pulp,waste paper pulp
3. Inflow pressure screen
Application: Used for the screening of low consistency pulp before the paper machine.
Pressure screen technical specification
|
Type |
HT-100 |
HT-200 |
HT-300 |
Ht-400 |
HT-500 |
HT-600 |
HT-700 |
HT-800 |
|
Screen area: m2 |
0.6 |
0.8 |
1.2 |
2 |
3.2 |
4.2 |
4.7 |
5.7 |
|
Hole Dia.: mm |
1.4-3 |
|||||||
|
Slot width: mm |
0.12-0.25 |
|||||||
|
Screen consisency:% |
0.8-2.0 |
|||||||
|
Flow rate: t/d |
35-60 |
50-80 |
80-130 |
130-220 |
200-350 |
270-500 |
310-550 |
360-650 |
|
Power of motor: kw |
30 |
37 |
45 |
90 |
132 |
160 |
200 |
250 |

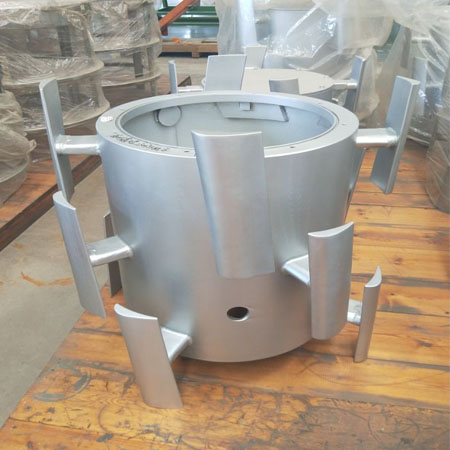

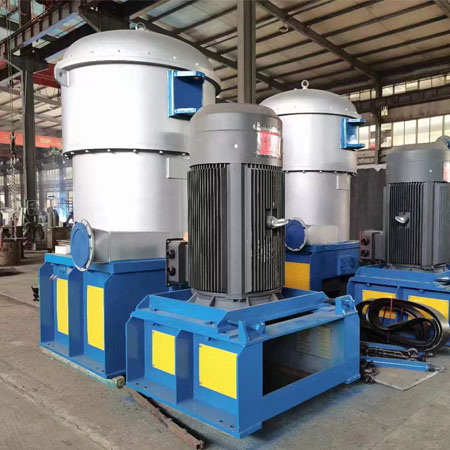

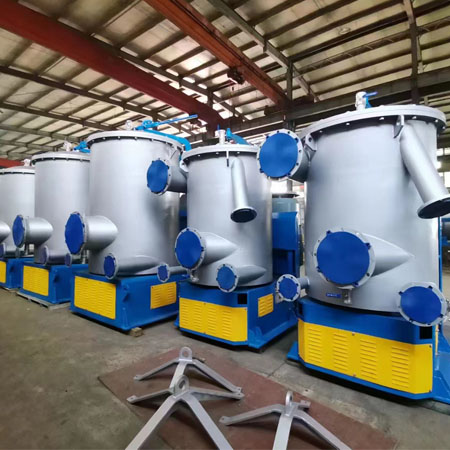

Pressure Screen Detailed Pictures:
Screening And Cleaner including following screens:
Fine Screen Pressure Screen Fibernet Screen Fiber Fractionating Screen Float Purger Reject Separator Vibrating Screen
Heavy Reject Cleaner
Welcome to contact us if you have any interested.
