Inclined Screw Thickener For Kraft Paper Industries
Inclined Screw Thickener Introudction:
Inclined Screw Thickener belong to Thickener And Washer Equipments, mainly used for concentrating and washing of slurry in papermaking and chemical fiber industry, especially suitable for dehydration and concentration of waster paper slurry. It has the advantages of high production capacity and dehydration effect, small square, convenient operation and maintenance, etc.
Feature & benefit of Inclined Screw Thickener
1. Simple structure,
2. Easy operation and maintenance.
3. High capacity, less area required.
Inclined Screw Thickener Specifications:
|
Type |
HT-1 |
HT-2 |
HT-3 |
HT-8 |
HT9 |
HT-12 |
|
|
Normal filtrating area: m2 |
1X1 |
1X2 |
1X3 |
1.5X2 |
1.5X3 |
2X3 |
|
|
Consistency of inflow pulp: % |
3-4 |
||||||
|
Consistency of outflow pulp: % |
10-14 |
||||||
|
Capacity of production: t/d |
OCC |
18-23 |
35-45 |
50-70 |
50-70 |
80-100 |
100-130 |
|
ONP |
10-15 |
20-30 |
30-45 |
30-45 |
50-60 |
60-80 |
|
|
Power of main motor: kw |
4 |
4X20 |
4X3 |
7.5X2 |
7.5X3 |
11X3 |
|
Huatao Supply all the spare parts and Pulp cleaning equipment, Pulp screening equipment for Paper mills.
Stock preparation: Conveyor belt, Pulper, D Pulper, hydrapulper, Cleaner, HD Cleaner, LD clenaer, Pressure screen, Screen basket, Hole type screen basket, Slot screen basket, , Pressure Screen, Cleaner,Fine Screen, Vibrating Screen, High Consistency Cleaner, Low Consistency Cleaner, Reject Separator, Float Purger, Fiber Fractionating Screen, Washer, Disc thickener, Refiner, DDR, Refiner disc, Refiner plate, Screen plate, and so on.
Paper machine spare parts: PMC - Paper machine clothing, forming fabric, dryer screen, press felt, polyester fabric, SS wire mesh, shrinking mesh, Dewatering elements, Breast roll, Guide roll, Forward roll, Vacuum couch roll, Drive roll, Curved roll, Calender roll, Pope reel, Rewinder, Slitter machine, Sizing machine, Calender machine, Cylinder mould, Dryer cylinder, and so on.

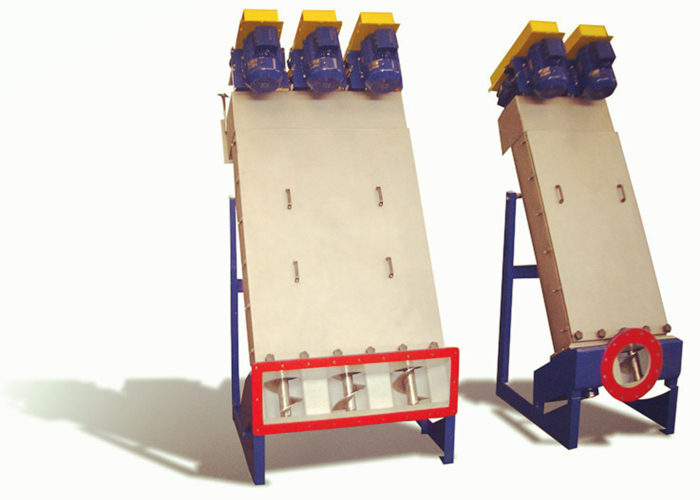

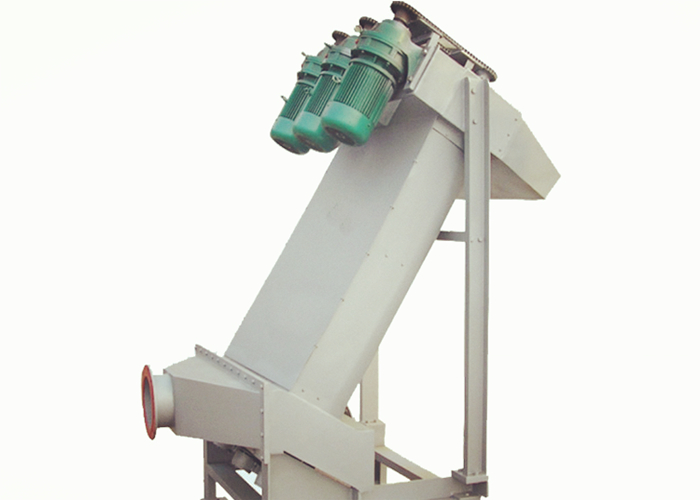

Photos Showing:
