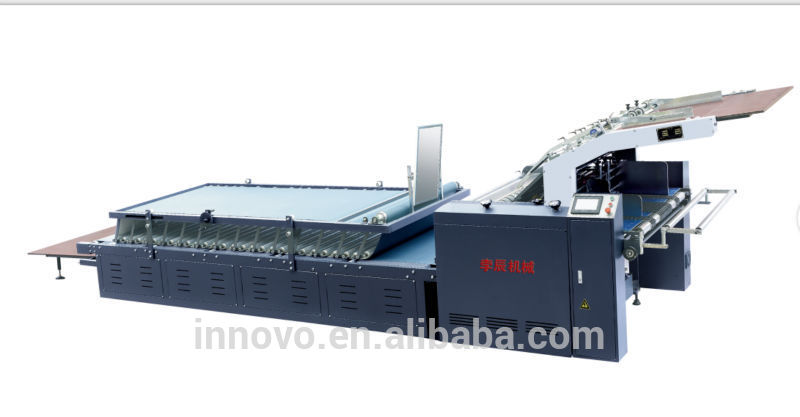

Semi-automatic flute laminator
Description:
Auto body paper feeding and the tissue is designed humanization by pushing in front, with the grade standards adjusted automatically, easier for feeding and more stable for fixing.
Controlled by PLC of the whole unit, providing more stable and accurate of paper feeding.
Flexible front guide fixing, with no body paper speeding up; besides, adjusting the statuses before or after body paper and tissue are available.
Suitable for adhering between the card paper and A/B/C/E/F corrugated paper, and between card paper and card paper.
Equipped with auto gluing device, saving the quantity of glue.
The air draft is controlled by single motor, providing stable conveying of body paper; single side adjustment of the whole unit, convenient and rapid to adjust it.
Designed with no scraper, with the water roll cleaned automatically and the gluing action transferred independently, offering persistent gluing while machine closing down.
Feature:
|
Name |
Semi-automatic flute laminator Shanghai Bochen machinery CO., LTD |
||
|
Model |
ZXBZ-1100D |
ZXBZ-1300D |
ZXBZ-1450D |
|
Max sheet size |
1100*1100 mm |
1300*1200 mm |
1450*1200 mm |
|
Min sheet size |
400*400 mm |
400*400 mm |
400*400 mm |
|
Bottom sheet material |
A/B/C/E/F corrugated paper thickness≤8mm |
A/B/C/E/F corrugated paper thickness≤8mm |
A/B/C/E/F corrugated paper thickness≤8mm |
|
Paper weight |
120-500 g/m2 |
120-500 g/m2 |
120-500 g/m2 |
|
Speed |
0-153 m/min |
0-153 m/min |
0-153 m/min |
|
Total power |
8.7 KW |
8.7 KW |
8.7 KW |
|
Overall dimension |
7000*1740*1800 mm |
7000*1940*1800 mm |
7000*2090*1800 mm |
|
weight |
3500 KG |
4500 KG |
5000 KG |
Packaging & Shipping
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Services
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
Company Information
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!
FAQ
1.What is Innovo company machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
