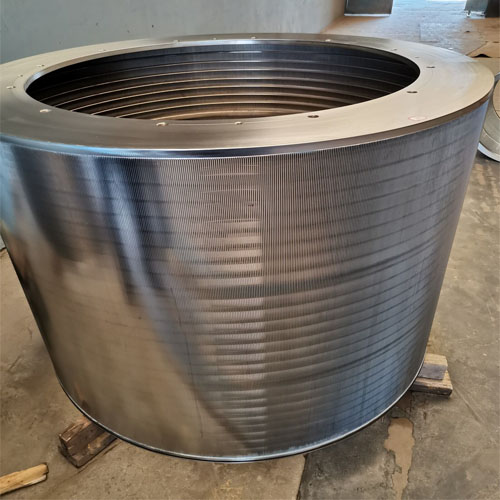

SS304 Slot Screen Basket For Pressure Screen
Screen Basket Product Description:
Paper mill stainless steel wedge wire drum Screen Basket including Inflow and outflow Screen Basket mainly used for wood pulp screen .From the slag removal to the coarse Screen Basket, the combination of the hole screen and slotted screen can achieve high quality screening results.With advanced technology, high machining accuracy, long service life.
Slot Screen Basket is widely used for pre-net pressure screen before headbox with slurry consistency 0.3-0.8%. Chorme coating 0.2-0.25mm to make the lifetime longer.
Screen Basket Parameters:
|
Model NO. |
Screen Area(m2) |
Sieve hole size (mm) |
Seam Size (mm) |
Screen Hole (T/D) |
Screen Slot (T/D) |
Inlet pulp consistency (%) |
Motor Power (Kw) |
|
HT0.3 |
0.3 |
Φ1.6-Φ3.5 |
0.1-0.55 |
50-80 |
30-50 |
1-4 |
22-55 |
|
HT0.6 |
0.6 |
Φ1.3-Φ3.5 |
0.1-0.55 |
90-160 |
60-100 |
1-4 |
30-75 |
|
HT0.9 |
0.9 |
Φ1.6-Φ3.5 |
0.1-0.55 |
135-250 |
90-150 |
1-4 |
37-90 |
|
HT1.2 |
1.2 |
Φ1.6-Φ3.5 |
0.1-0.55 |
180-320 |
120-190 |
1-4 |
45-110 |
|
HT1.5 |
1.5 |
Φ1.6-Φ3.5 |
0.1-0.55 |
200-380 |
140-230 |
1-4 |
55-132 |
|
HT2 |
2 |
Φ1.6-Φ3.5 |
0.1-0.55 |
260-500 |
220-300 |
1-4 |
75-160 |
|
HT3 |
3 |
Φ1.6-Φ3.5 |
0.1-0.55 |
400-700 |
300-450 |
1-4 |
90-220 |
|
HT4 |
4 |
Φ1.6-Φ3.5 |
0.1-0.55 |
500-1000 |
350-730 |
1-4 |
132-280 |
Huatao Supply all the spare parts and Pulp cleaning equipment, Pulp screening equipment for Paper mills.
Stock preparation: Conveyor belt, Pulper, D Pulper, hydrapulper, Cleaner, HD Cleaner, LD clenaer, Pressure screen, Screen basket, Hole type screen basket, Slot screen basket, , Pressure Screen, Cleaner,Fine Screen, Vibrating Screen, High Consistency Cleaner, Low Consistency Cleaner, Reject Separator, Float Purger, Fiber Fractionating Screen, Washer, Disc thickener, Refiner, DDR, Refiner disc, Refiner plate, Screen plate, and so on.
Paper machine spare parts: PMC - Paper machine clothing, forming fabric, dryer screen, press felt, polyester fabric, SS wire mesh, shrinking mesh, Dewatering elements, Breast roll, Guide roll, Forward roll, Vacuum couch roll, Drive roll, Curved roll, Calender roll, Pope reel, Rewinder, Slitter machine, Sizing machine, Calender machine, Cylinder mould, Dryer cylinder, and so on.
