Heavy Duty Hanging Suspension Roller

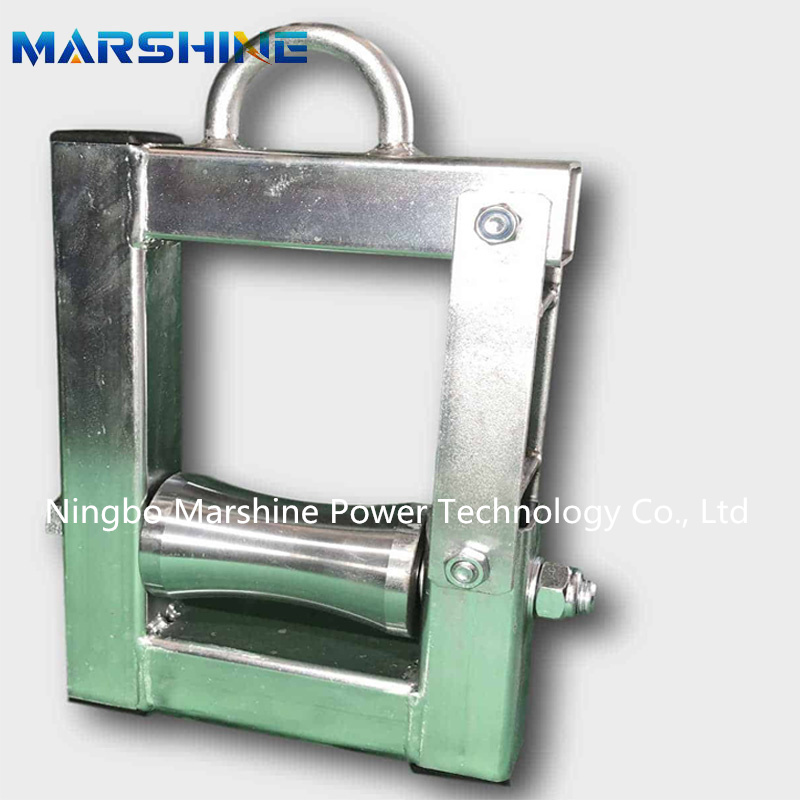

The SL12 Hanging Cable Laying Roller, heavy duty suspension roller, cable roller for sale, which enables cable to be installed and suspended in elevated positions.

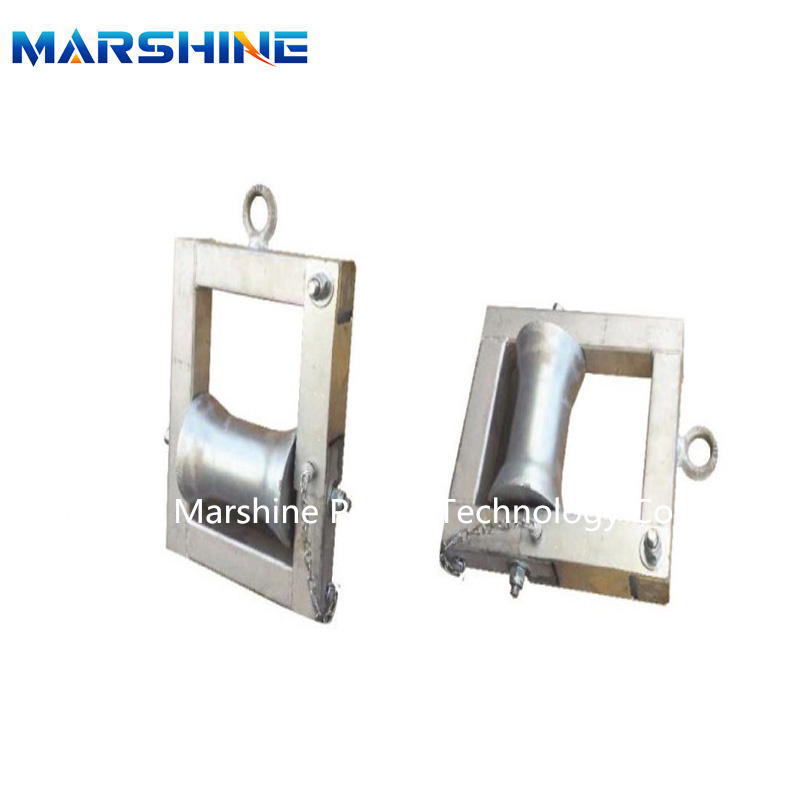

Suspension Rollers can be supplied as shown or with [pigs tail" fixings for attaching to a straining wire. Cable Rollers can as an option be supplied with an heavy duty roller for the heaviest of cables or for taking the initial elevation strain . Heavy Duty Cable Roller Frame Hinged gate for cable entry or exit
Specification
Product number
21229
21228
Model
SHD4K250
SHD8K250
Maximum cable diameter(mm)
200
Rated load(Kn)
20
Ldler diameter(mm)
61
Number of idlers
4
8
Weight(kg)
21
36
Usege:It is used for large diameter power cable laying construction, surface, bridge erection and other occasions.
Feature:
1.Idlers strengthened with aluminum alloy;
2.Dust proof rolling bearing;
3.Anti corrosion paint for steel frame structure;
4.It can be fixed with the ground or bridge through the foundation hole.
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, cable mesh sock grip, line stringing swivel- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
