H-beam Assembling Machine

H-beam Assembling Machine structural principles:

H-beam assembling Machine is composed of main machine, a draw bar centering system, input and output roller conveyor, hydraulic system, and electric control system.

The main machine is made of a gantry frame, a buck-boost beam, an upper cylinder and a base, a web and flanges automatically centering system, aligning equipment, welding torch fixtures, a main transmission mechanism and a conductive device.

The gantry frame is a door-type one, with four rectangular rails on the gantry column, through which the buck-boost beams can make smooth movements.

The upper press roller is fixed on the up-down press beam, pressed down on the H beam by the push of upper press oil cylinder. The material of the roller is 35CrMo, which precision and abrasion resistance improves significantly after heat treatment and the grinding machining.

The base is steel plate welded frame type structure, the two side walls of the base install a flange and web automatically centering device, which installed holes are made by boring machine, which ensures the precision and reliability.

The flange and web automatically centering device is a key component of assembling machine; its structure determines the processing precision and efficiency of the assembling machine. The assembling machine made in our company adopts hydraulic drives and the structural principle of centering both sides simultaneously, i.e. the flange and web centering device installed on both sides of the wall moves to the middle by the driving of the hydraulic system, automatically clamping flanges and web of the H-beam together to the middle position, which significantly improves the working efficiency, and also makes the operation easier and more convenient.

Aligning device mainly plays the role of aligning the ends of flange and web, and meanwhile the wheel on the aligning device can support the flanges, eliminating the welding line welded by welding machine between the flanges and web.

The torch fixing device is mainly used for fixing and guiding the welding torch in order to keep a rational distance between the torch and the seam. The hydraulic cylinder on the torch fixing device can drive the weld torch close to or away from the seam to achieve the automation of the process of assembling.

The assembling machine has automatic welding and manual welding in order to satisfy the users’ requirements. The manual welding has no welding torch fixing device and CO2 Gas shielded welders. And the electric control box also does not have PLC programmable controller. So the users are asked to choose their own CO2 Gas Shielded welders, and the spot welding process should be operated by two workers, thus the user's purchase cost can be reduced.

The main driving mechanism is driving by the motor and cycloid pinwheel reducer through jointer and the turning speed of motor is controlled by the inverter, so that stepless speed adjust can be realized. The transmission speed is controlled by the PLC programmable controller, which can achieve automatic exchange between spot-welding speed and no-load running speed. The main driving roller corresponded with the upper press roller, is made of 40Cr, which precision and abrasion resistance improves significantly through heat treatment and grinding.

A conduct device is installed on the inferior-side of the main driving roller, and it is made of a carbon brush, copper cables and fix device. The Brush directly contact with the surface of the main drive roller directly, conducting the welding current of the workpiece to the base in order to avoid the burning when the welding current flows through the bearings.

Draw-bar box centering system is mainly used to center the flanges and webs initially, which consists of one drive draw-bar box and two idler one. Inside the box, there are one set of flange centering device and one set of web centering device, and the draw-bar boxes are driven by the two hydraulic cylinders installed behind the two boxes. And the two boxes transmit power and link with each other through the rod between them.

The input and output roller conveyor are made of rollers and frame, the two input roller conveyor and two output roller conveyor close to the main machine are driven by the chain linked with the main transmission roller, which ensures the linear speed of the roller and roller conveyor coming in line with the main driving roller.

The Hydraulic system controls the up and down of the press roller, the welding gun and the aligning device, the centering of the clamping wheel of the flanges and the webs, and the pre-centering movement of the draw-bar box. It is the power source of centering and clamping actions of the assembling machine.

Electric control system consists of an electronic control box, an operating box and cables, of which the main transmission frequency converter controls the motor speed, and the PLC programmable controller can make different application procedures according to the H-beam assembling process requirements. The inverter’s output frequency is selected by the PLC, and operation of them can realize circulation automatically. (Manual-welding assembling machine does not have a PLC programmable controller).

H-beam Assembling Machine Technical parameters:

Model	HZJ-15	HZJ-18	HZJ-20
Web height	200-1500mm	200-1800mm	200-2000mm
Web thickness	6-32mm	6-32mm	6-32mm
Flange width	200-800mm	200-800mm	200-800mm
Flange thickness	6-40mm	6-40mm	6-40mm
Workpiece length	4000-15000mm	4000-15000mm	4000-15000mm
Assembling speed	0.5-6m/min	0.5-6m/min	0.5-6m/min
Main machine power	5.5KW	5.5KW	5.5KW
Hydraulic station power	4KW	4KW	4KW

H-beam Assembling Machine goods supply range:

a．Main machine: upper frame, base, main transmission motor speed-reducer etc.

b．Roller conveyor: 2.6m length total 6 pcs for input and output

c．Draw bar box: 1 group including 3 sets

d．Hydraulic system: hydraulic station, high pressure glue pipe, hydraulic cylinder etc.

e．Electrical system: electrical control box, operational cabinet, AC converter.

f. Welding system: Zhouxiang ZKR-350 welder 2 sets with wire feeder and welding torch assembly

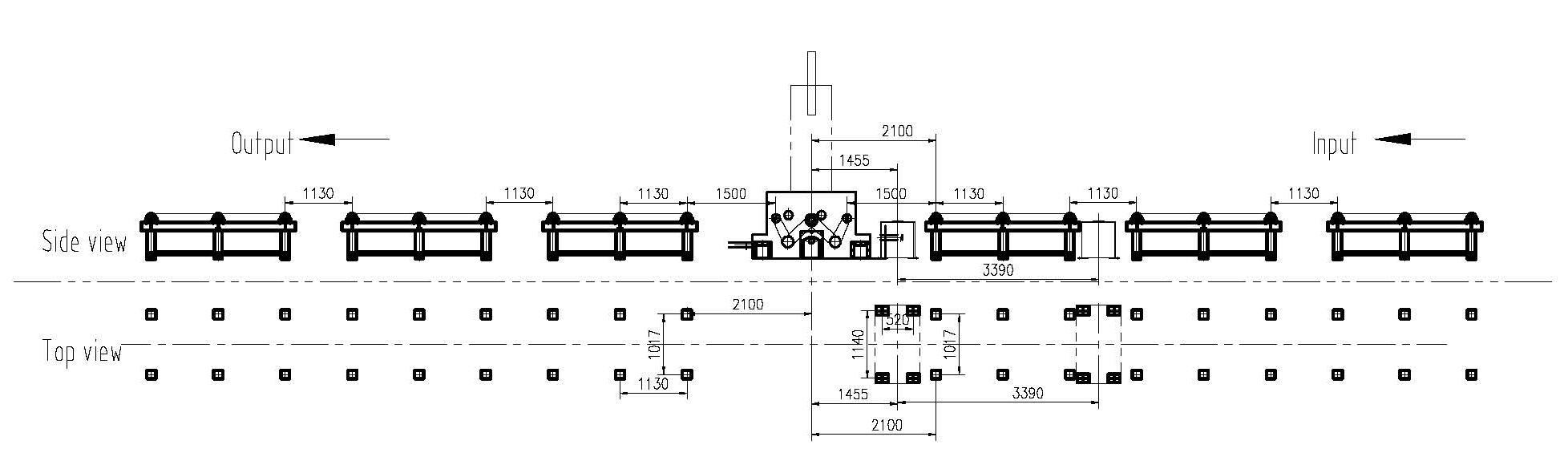

H-beam Assembling Machine layout drawing:

HZJ-1800 Layout

H beam Assembly Machine Details:

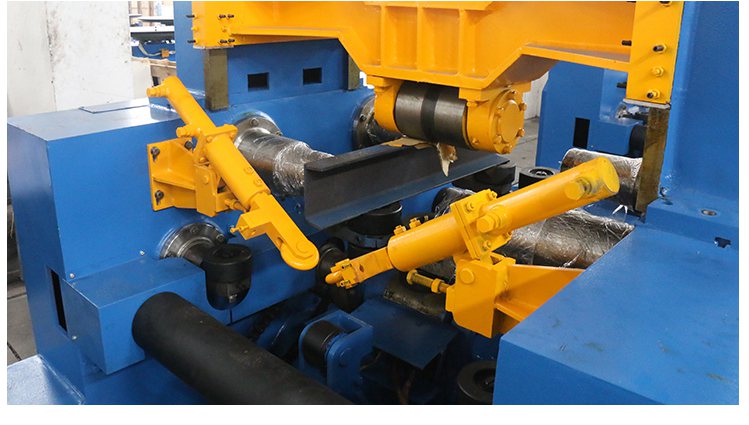

Two sets welding gun can be adjusted by hydraulic guider

H 3 Jpg

Core of the H beam assembly machine: The material of pressing wheels,web wheels and guide wheels are 40Cr. Main drive wheels material is 45#.High hardness and good wear resistance.

H 2 Jpg

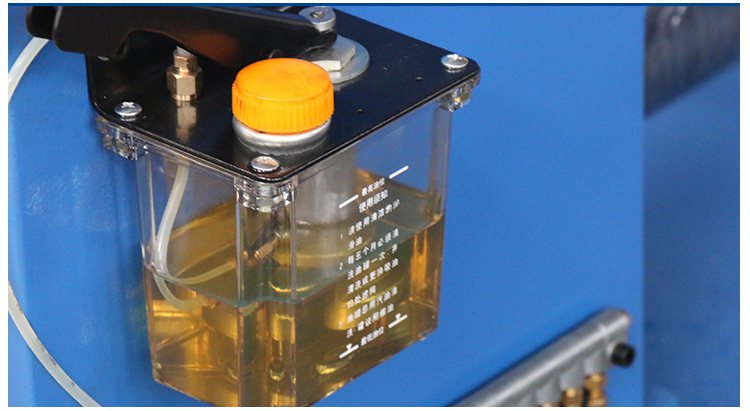

Lubrication of the oil cup.All lubrication points can be lubricated well.
