H-beam Flange Plate Hydraulic Straightening Machine
H-beam Flange Hydraulic Straightening Machine Structure principle:
H beam flange plate hydraulic straightening machine working principle : two upper straightening roller hydraulic press two side edge of the flange plate, one bottom roller support the center of the flange plate , control the upper rollers to press the deformed flange plate that reach to line position.
The H beam hydraulic straightening machine is composed of base bed, upper frame(upper straightening roller mechanism, web plate guiding device, H beam transmission mechanism).
The base bed、the upper machine frame and input/output transmission tables are welded by plate and channel section steel, and then do the process of welded stress relief.
Upper straightening roller is the main part for doing straightening work, it is composed of upper press roller, straightening shaft, shaft box, down press screw-bar, bevel gear and motor speed reducer. The material of upper roller is 35CrMo, the wear resistance has been improved after the process of heat treatment and grinding. The contact part, where the bottom of the screw-bar and the shaft box, is sphere structure. It can avoid the influence of shaft box to the screw-bar.
Web guide wheels can position the H-beam so that the H-beam is in the center of the main drive roller.
Upper frames moving device is a manual screw mechanism. It can adjust the distance of the two parts according to the H-beam flange plate size.
The main bottom roller part is driven by a AC motor with hardness gear reducer. The passive transmission roller transports the H Beam to the main machine.
The electric control system is composed of control box and operation box. The control box is installed on the upper frame. The electrical control system controls the forward/reverse turning of the main transmission motor and the straightening motor.
The upper hydraulic press cylinder adopts high quality sealing ring with good sealing performance, which can ensure long service time. There’s fine filter equipped on the pump station which can ensure electromagnetic valve is more e for long-term use.
H-beam Flange Straightening Machine Technical Parameters:
Model
YJZ60B
YJZ60C
YZJ60D
YJZ80B
Flange width
200~800mm
200~1000mm
200-800mm
200~1000mm
Flange thickness
≤60mm
≤60mm
≤60mm
≤80mm
Minimum web height
350mm
350mm
200mm
380mm
Material of plate
Q345(16Mn)
Q345(16Mn)
Q345(16Mn)
Straightening speed
6.15m/min
6.28m/min
9.8m/min
6.1m/min
Total Power
26kW
16.5kW
21kw
22kW
Above are our standard model, it can be designed and manufactured according to customer’s request.
Q235-A
H-beam Flange Straightening Machine Details

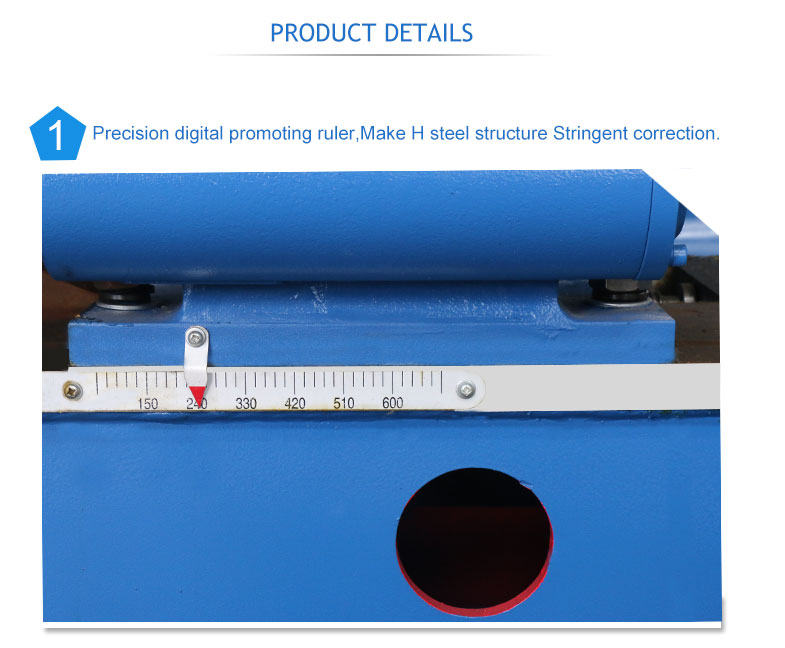

With a ruler, we can know exactly the distance between the two hydraulic straightening rollers

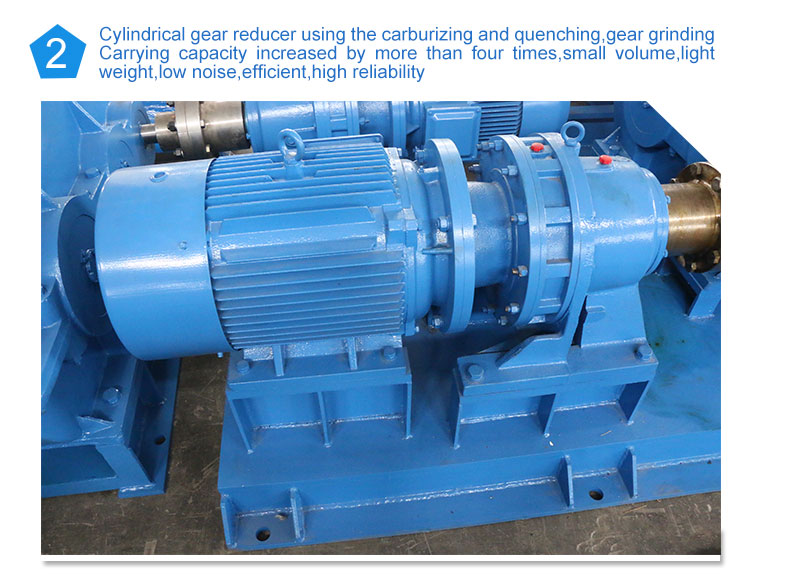

The heavy-duty reducer and motor can provide super torque to drive the rectified H-beam to move

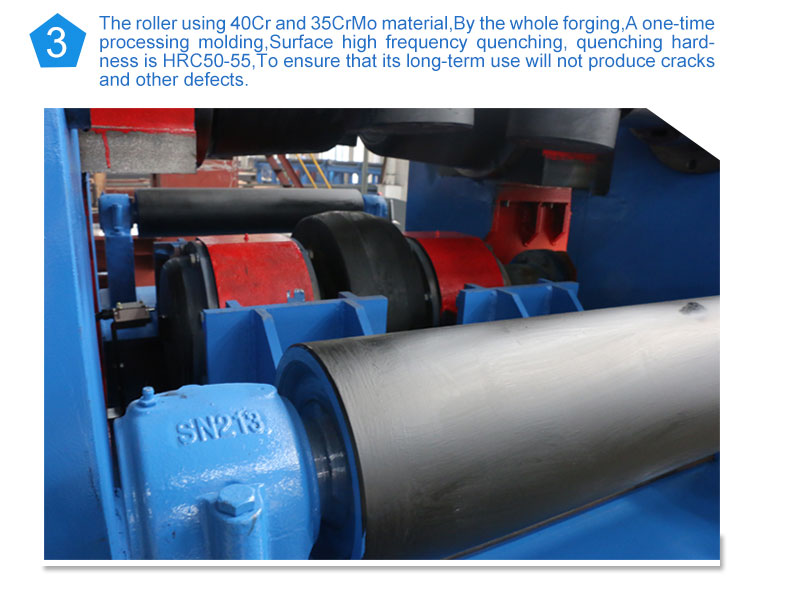

High-quality wear-resistant straightening rollers ensure long-term use of the equipment
How to choose H beam flange plate straightening machine？
As a professional welded H section steel equipment manufacturer, we provide various models of H-beam flange plate straightening machine. We generally choose the straightening machine according to the thickness and material of the flange plate.
|
Flange plate thickness |
Model |
Flange plate correction way |
|
20 mm(Q235) |
JZJ600 |
Mechanical |
|
40 mm(Q235) |
JZJ800 |
Mechanical |
|
40 mm(Q345) |
YJZ-60D |
Hydraulic |
|
60 mm(Q345) |
YJZ-60B |
Hydraulic |
|
60 mm(Q345) |
YJZ-60C |
Hydraulic |
|
80 mm(Q345) |
YJZ-80B |
Hydraulic |
If you are interested in the product, contact 2bvideo.com for more information for more information
