Product details

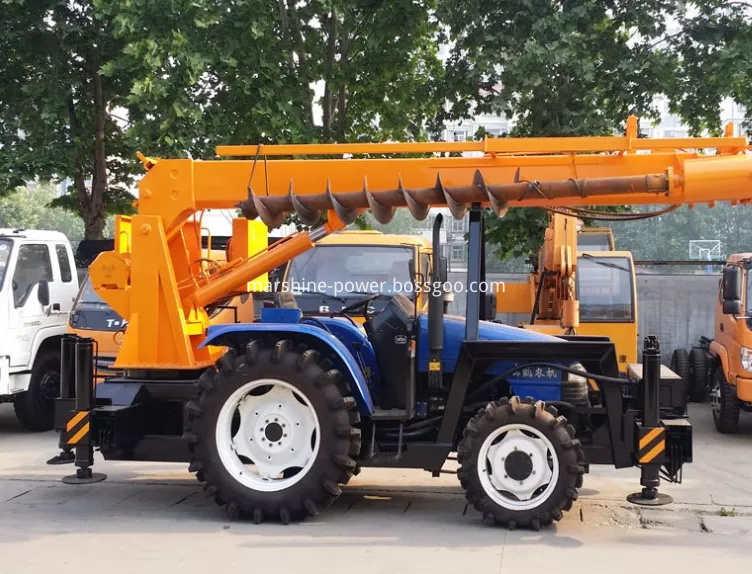

Tractor Crane Tower Erection Tools with Earth Auger

This device has the function of digging ,vertical pole, put line ,bulldozing ,grinding, traction, referred to as the put line integrated machine,widely used in electric power ,telec-ommunications,municipal energingconstruction,planting trees,cement poles pit digging ,solar photov-olatic power generation project in solar panel rack ,screw pile,vertical drilling rod,ditching,put line,backfill soil,ground of traction and lifting 3-8Tobject,is the ideal choice for individuals and units of construction eq-uipment.Suitable for all kinds of terrain.the losser layer,clay layer,containing pebbles,grave soil, weathered rock and soil,frozen soil building garbage,backfill sand,garbage layer

Feature

1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires

2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.

3. YTO tractor as power, strong enough , strong cross-country power. Fully hydraulic driving. Full-automatic put and upright the pole.

Benefits of Pole Erection Machine

(1) Huge cost saving , very high speed of work and reduce the burden of labor management

(2) Eliminate the prevailing labor problem completely thus leads to project on time execution.

(3) High production capacity with proper planning and execution per shift of 8 working hours,

(4) which can complete the pole installation of 25 to 30 poles per shift by two labors only.

(5) Pole erection working can be done by two labors only against the current manual practice of 12 to 14 labors.

(6) Takes a little time to make a pit against the time taken by manual labor is 5 to 6 hours.

(7) Cost Saving for contractor.

Technical Parameters

Drilling depth	0 -6m
Drilling diameter	1m-2m
Standard drill pipe	300mmx3M,600mmx3M
Lifting method	Full hydraulic
Standard drilling time	40s (diameter of 300mm-500mm)
Drill Head Material	Tungsten alloy
Auger Material	High-manganese carbon steel
Crane	3T/5T/8ton crane
Tractor	Model 1004 BOMR tractor, 100HP, four wheel drive
Dimension	L5900W2000H2600mm
Weight	7.3 t
Application	loess, clay, pebble sand, weathered granite, tundra.
Not suitable for	Rocks, whole sand bed ,household garbage and so on.
Operator needed	1 person

PRODUCT DISPLAY

2345 Image File Copy 33 Jpg

To support the Transmission work, Marshine Power has Tubular Gin Pole , Come Along Clamp , Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like Emergency Restoration Tower And Crossing Structure, we can customized, and the Safety Tools And Accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks
