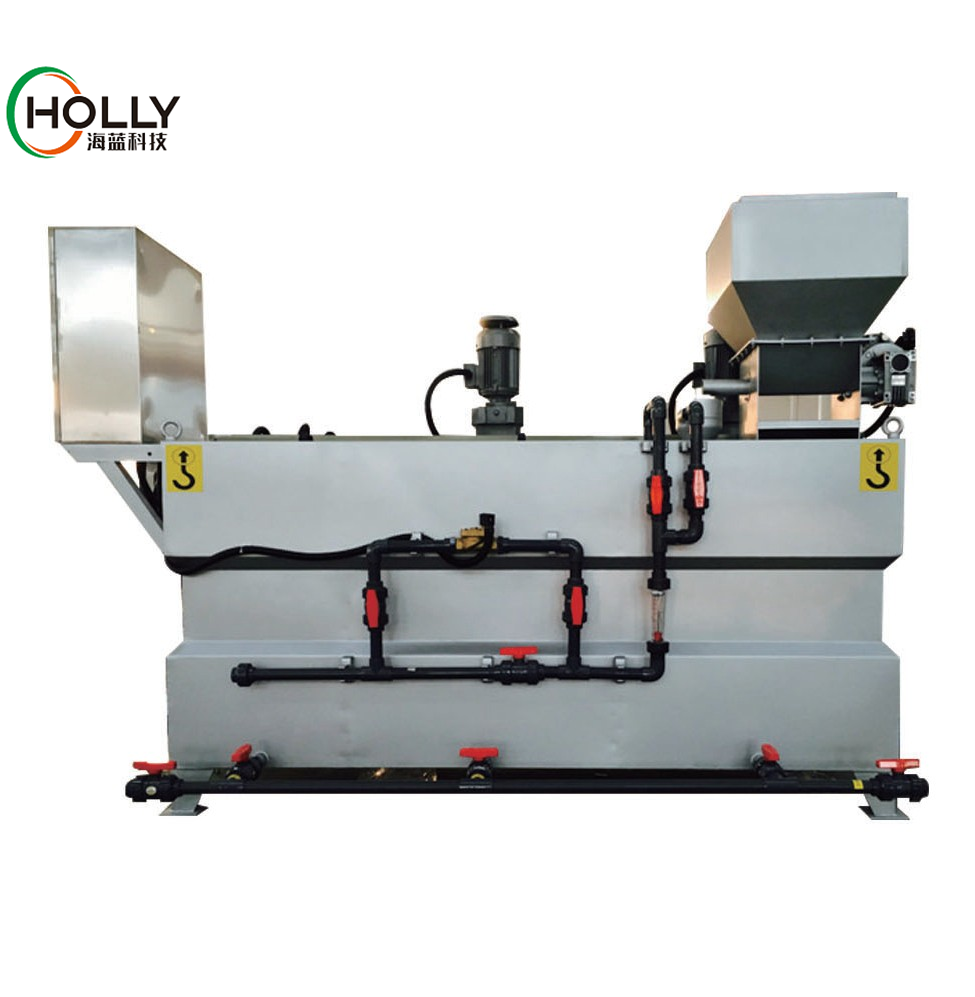

Polymer Dosing System
Short Description
The Polymer dosing system is range of simple and flexible as well as economic and efficient preparation systems for polymers. The product range cover from 1 to 3 chamber systems and associated dosing stations for both dry and liquid polymers. The systems are equipped with precise water and level material to secure efficient and economic operation of the systems. We customize the systems to match the application and customer needs, i.e. volume of polymers in kilogram per hour or concentration of polymers in the prepared solution or ripening time.
Features
Main Features of Feeding Medicines Chemical Treatment Polymer Dosing System
9.Ability to engineer-to-order: Customers get custom tailored solutions

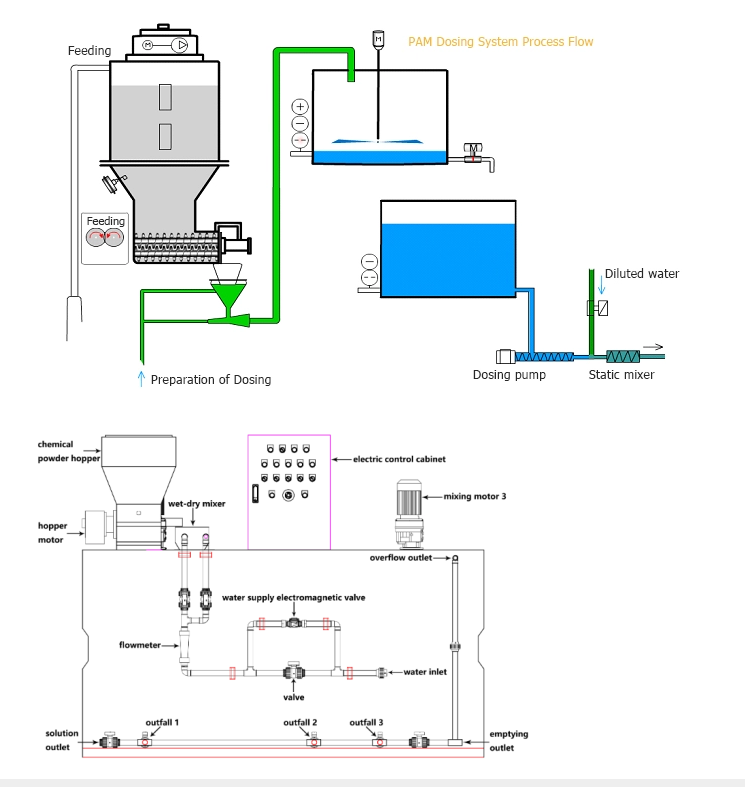

Chemical dosing system-Product Princple
Powder dosing system-Product parameter
|
parameter |
HLJY500 |
HLJY1000 |
HLJY1500 |
HLJY2000 |
HLJY3000 |
|
|
Capacity(L/H) |
500 | 1000 | 1500 | 2000 | 3000 | |
|
Dimension(mm) |
900*1500*1650 |
1000*1625*1750 |
1000*2240*1800 |
1220*2440*1800 |
1220*3200*2000 |
|
|
Power N(KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
|
|
Paddle Dia(mm)φ |
200 | 200 | 300 | 300 | 400 | |
|
Mixing Motor |
Spindle Speedn (r/min) |
120 | 120 |
120 |
120 | 120 |
|
Power N(KW) |
0.2*2 |
0.2*2 |
0.37*2 |
0.37*2 |
0.37*2 |
|
|
Inlet Pipe Dia DN1(mm) |
25 | 25 | 32 | 32 | 50 | |
|
Outlet Pipe Dia DN2(mm) |
25 | 25 | 25 | 25 | 40 | |
