Rhinoceros mini excavator XN10-8 XN12-8 with Swing boom
Chinese Koop / Changchai engine, Japanese Kubota engine for option;Swing boom & extendable chassis for option;1000kg,0.25cbm
1. Imported Japanese Kubota engine, low noise and high power
2. The four-pillar ceiling is stronger.
3. New style seat, more comfortable.
4. Optional side swing, more flexible for narrow space operation
5. Water-cooled engine, able to operate in high temperature areas for a long time
6. Wide range of application, saving time and fuel.

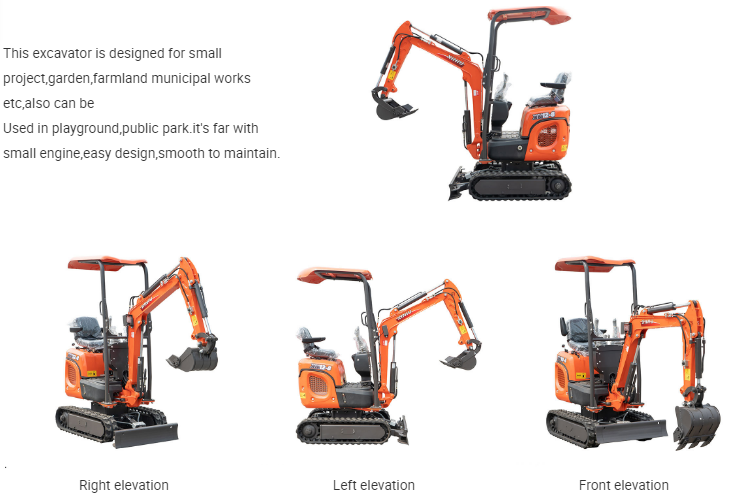

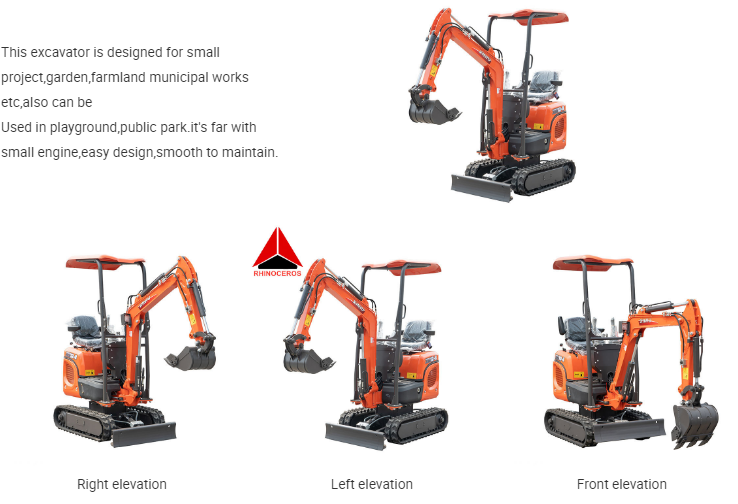

Mini excavator XN10-8 XN128 XN126 Photos:
Available attachments:
XN10-8 Specification:
|
SPECIFICATION
|
|
|
Model
|
XN12-8
|
|
Brand
|
RHINOCEROS
|
|
Machine Weight
|
1000kg
|
|
Bucket capacity
|
0.025cbm
|
|
Bucket width
|
380mm
|
|
Engine
|
Kubota |
|
Rated power
|
7.5 kw/3000r/min
|
|
Swing speed
|
10.5rpm
|
|
Max. Grade ability
|
30°
|
|
Pump type
|
Gear pump
|
|
Pressure
|
16MPa
|
|
Flow rate
|
16.6L/min
|
|
MAIN DEMENSIONS
|
|
|
Overall dimension( LxWxH)
|
2850x954/800x2211 mm
|
|
Wheelbase
|
914 mm
|
|
Total length of track
|
1234mm
|
|
Upper chassis ground clearance
|
453mm
|
|
Counterweight turning radius
|
660 mm
|
|
Track width
|
180 mm
|
|
Track height
|
320 mm
|
|
Height of seat to ground
|
1525mm
|
|
Boom swing - left
|
363mm
|
|
Boom swing - right
|
325mm
|
|
OPERATING RANGE
|
|
|
Max. Digging depth
|
1568 mm
|
|
Max. Vertical digging depth
|
1377mm
|
|
Max. Digging height
|
2646 mm
|
|
Max. Dumping height
|
1876mm
|
|
Max. Digging radius on ground
|
3039mm
|
|
Min. Rotation radius
|
1510mm
|
|
Max. Lifting height of dozer blade
|
141 mm
|
|
Max. Digging depth of bulldozer blade
|
200mm
|
Details Images
The upper hood can be fully opened to facilitate daily inspection and maintenance
Stronger ROPS Anti-roll steel frame can ensures operator safety, and the frame can folded when the excavator is transported.
Solid cast iron counterweight, greatly improves the stability of the excavator
