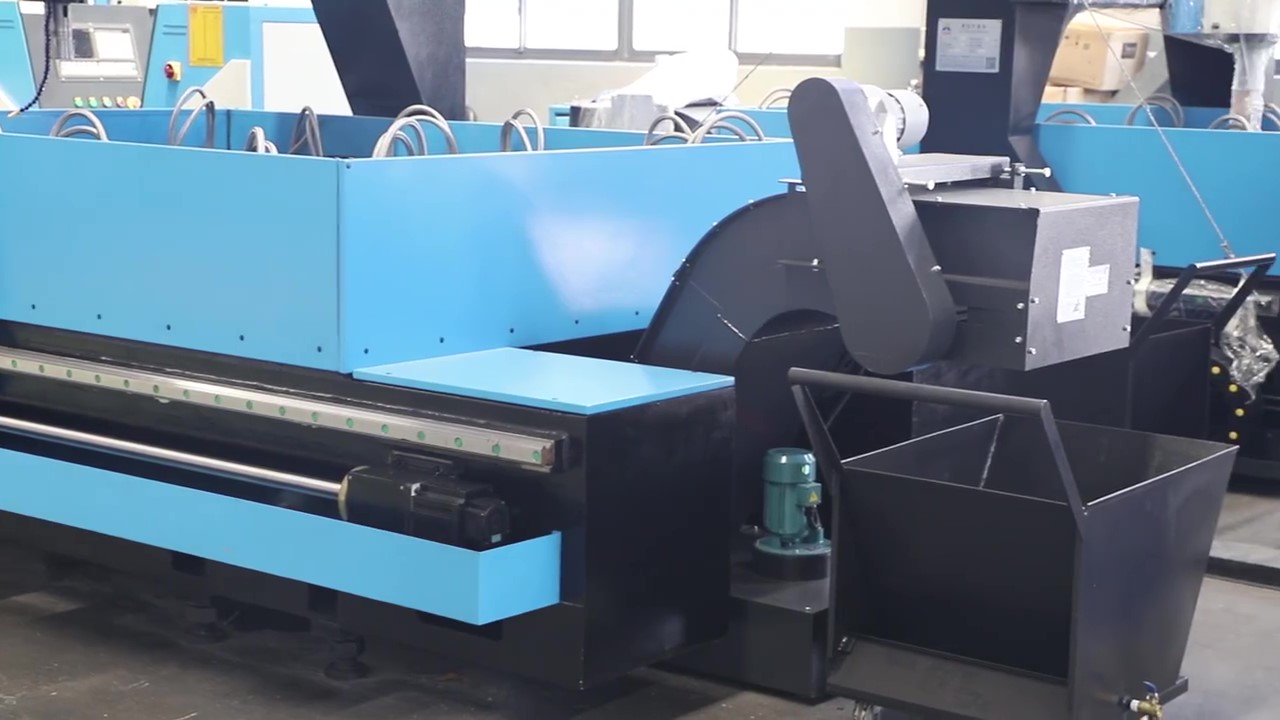

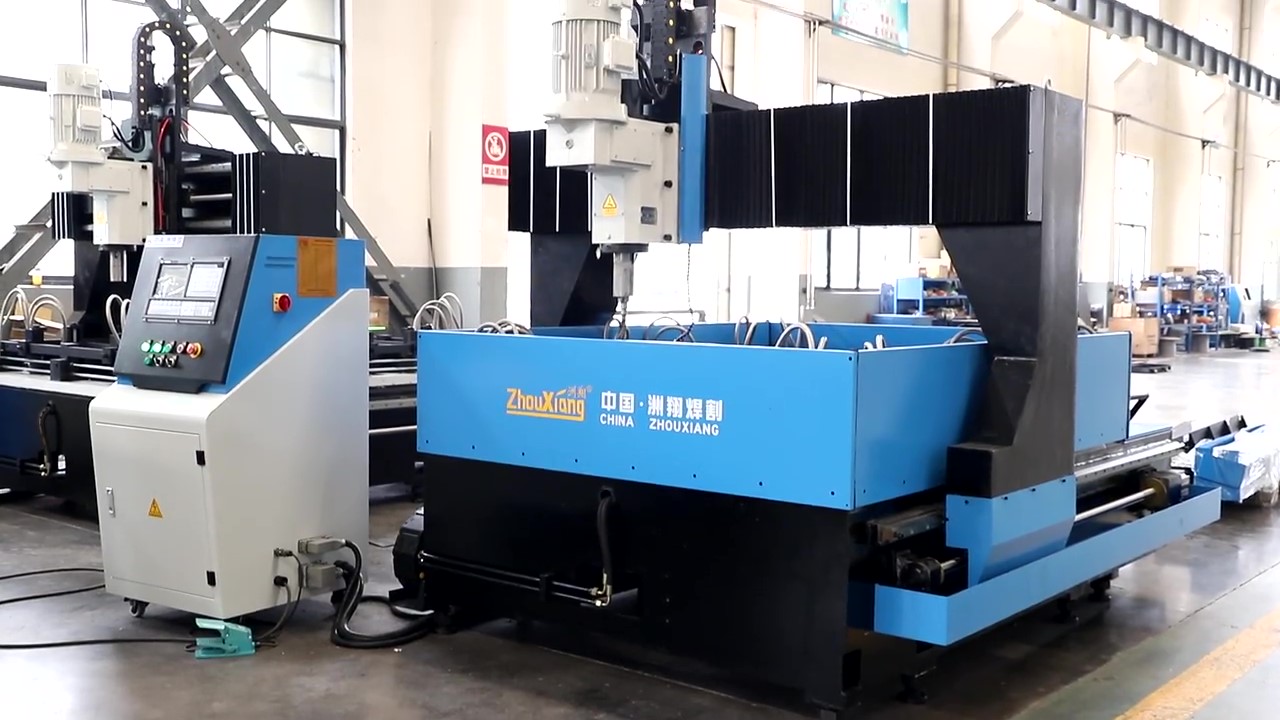

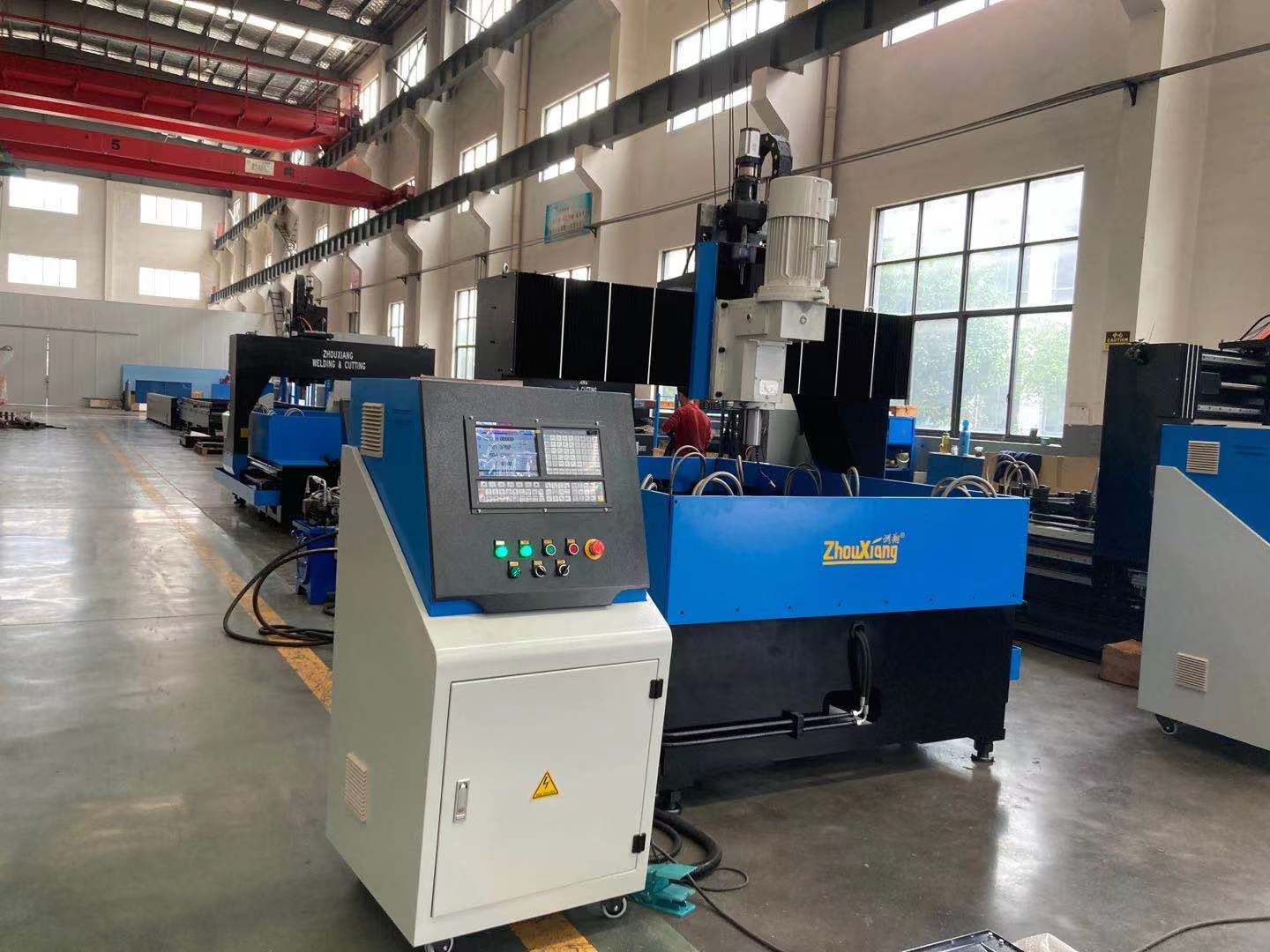

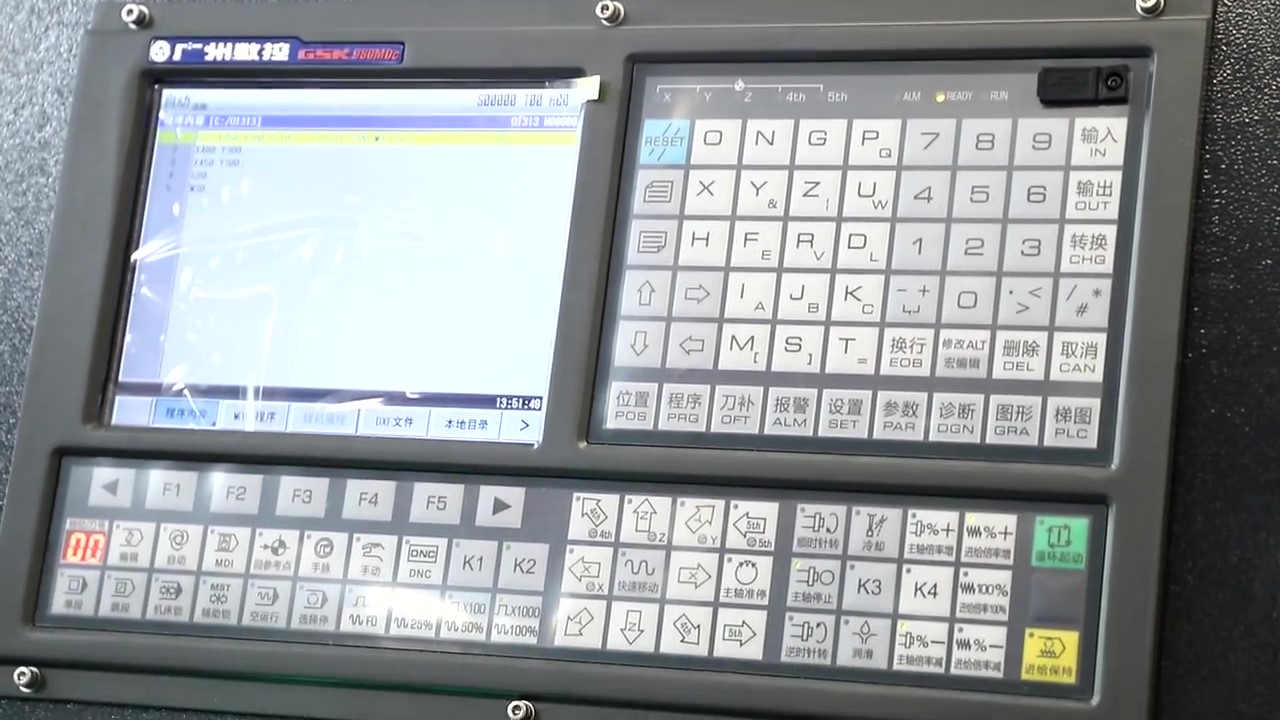

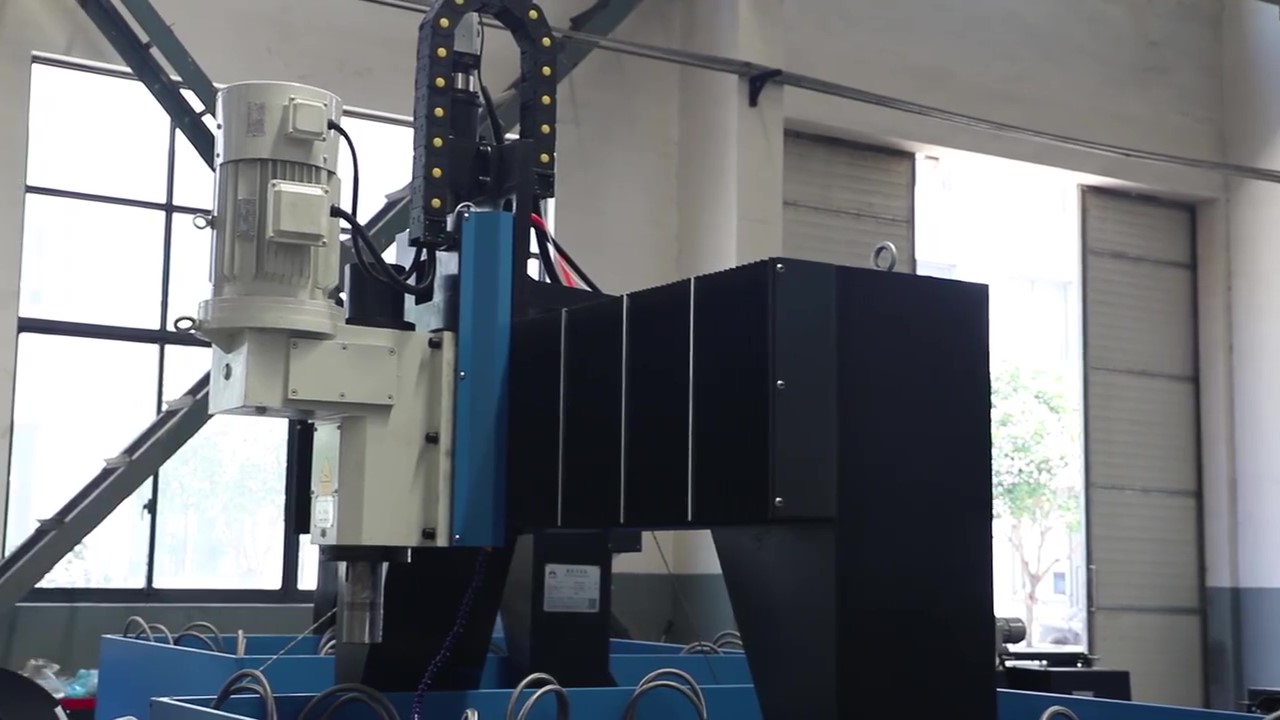

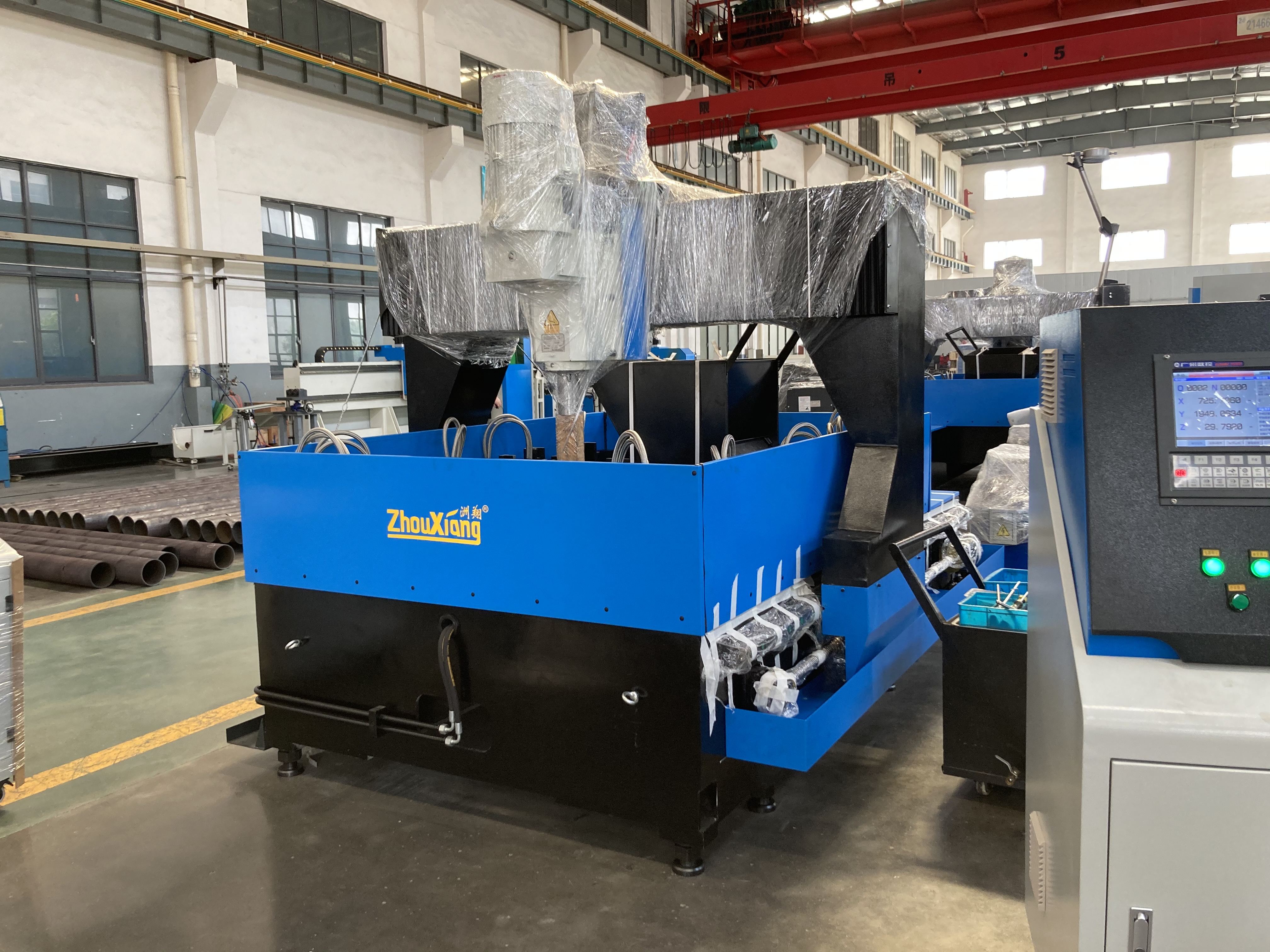

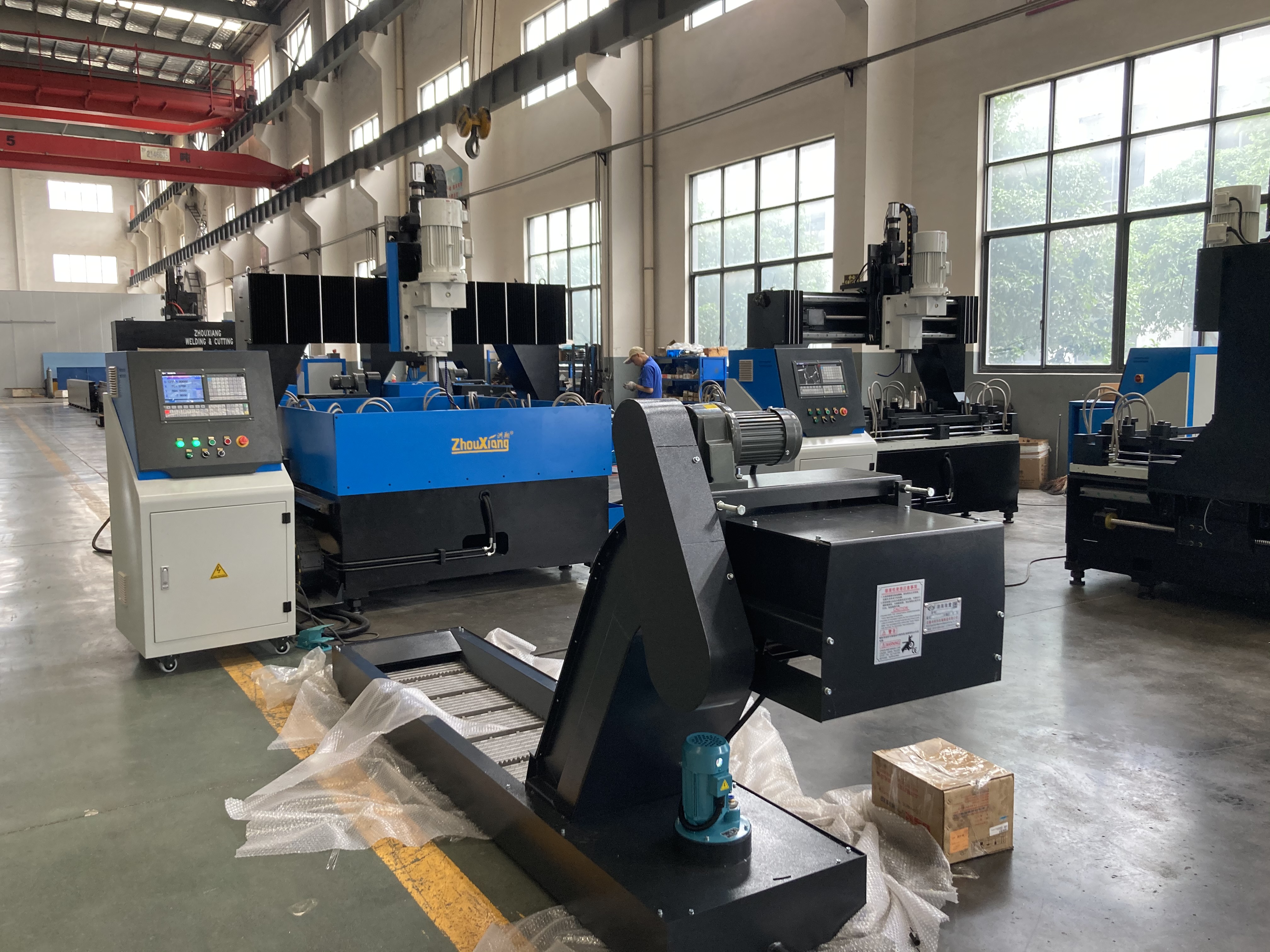

ZPZ digital driller employs AC srevo motor to drive the X axis and Y axis, while its Z axis is positioned by high accuracy raster.By using semi-closed closure digital control system,the machine has reliable performance.The operation of the machine can either be automatic or manual. This machine is widely used in steel frame contruction.
|
Technical Parameter
|
||||
|
Model
|
ZPZ160
|
ZPZ200
|
ZPZ400
|
ZX1520H
|
|
Drilling diameter
|
φ50
|
φ60
|
φ60
|
φ50
|
|
Max dimension of workpiece
|
1600×1000×80
|
2000×1500×80
|
2000×1500×80
|
2000x1500x80
|
|
Rotary speed of main shaft
|
130-400r/min
|
130-400r/min
|
130-400r/min
|
300-3000r/min
|
|
Feeding type of main shaft
|
Hydraulic
|
lead screw
|
lead screw
|
Servo
|
|
Quality of moveable working platform
|
2
|
2
|
2
|
1
|
|
Workpiece can be tooled for once
|
4pcs
|
4pcs
|
4pcs
|
4pcs
|
|

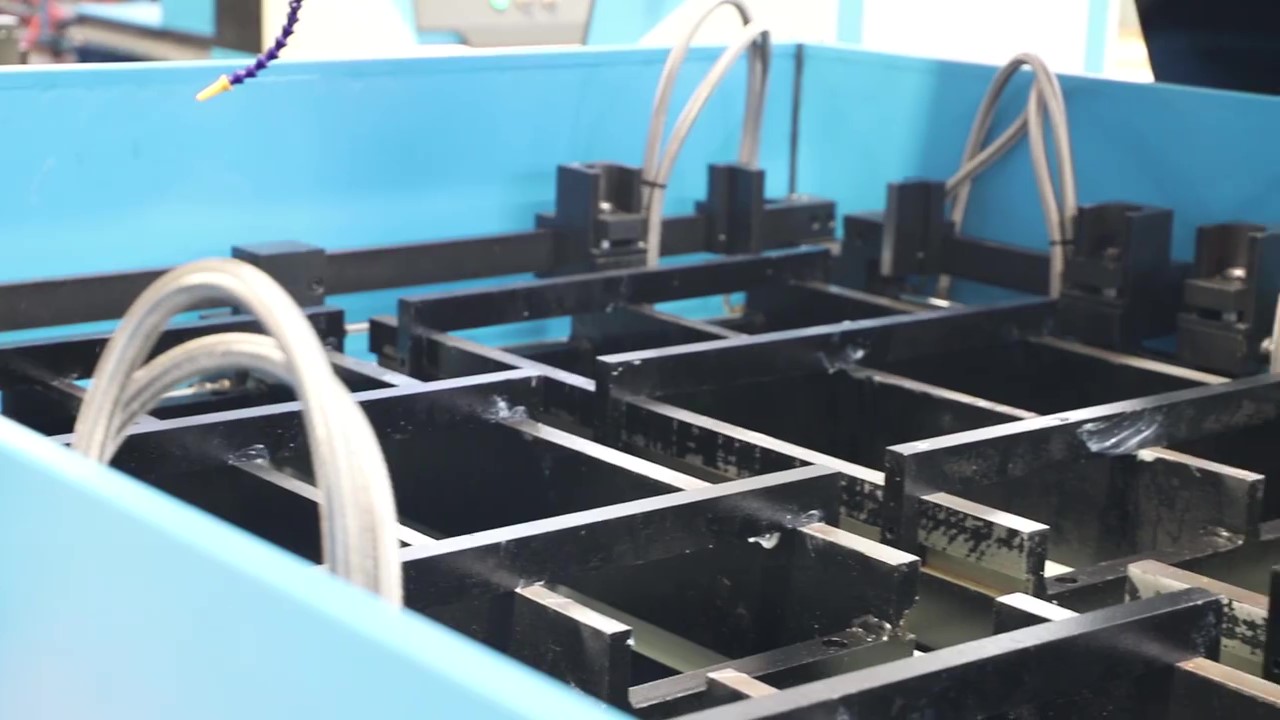

Clamping type
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
|
X and Y axis fast moving speed
|
12m/min
|
12m/min
|
12m/min
|
6m/min
|
Wuxi Zhouxiang complete set of welding equipment plant is a famous China manufacturer of H beam Welding equipment. Our factory is located in Wuxi city, China---was established in 1991. The company has fixed assets of more than 20 million US dollars, a factory area of 100,000 square meters, and annual sales of more than 40 million US dollars.We have full control of production from steel plate delivery, through to site installation and commissioning,design and manufacture highly sophisticated heavy engineering machinery, our research and development weld centre also more than 100 engineering. Zhouxiang Complete Set of Welding Equipment Co., Ltd is a national high-tech enterprise, with China's national CCC certification, CE, TüV, GS certification, ISO9001 international quality system certification, etc. Main products of Zhouxiang plant: 1)H beam productions line: CNC control Flame/ plasma cutting machine .H beam assembly machine.H Beam Welding Machine.H beam flange plate straightening machine. H beam shot blasting machine.H beam End Face Milling Machine.H beam assembly-welding-straightening machine.Horizontal H beam productions line etc. 2)BOX column production line: Steel plate groove milling machine.Box column assembly machine.Box column welding machine.Box column electroslag welding.Box beam shot blasting machine.Box beam end Face Milling Machine etc. 3)Welding Rotator: Portable pipe rotator.Conventional rotator.Self-aligned welding rotator.Wind tower productions line etc.Anti-creeping welding rotato etc. 4)Welding Manipulator: Column and Boom.Platform welding manipulator 5)Welding Positioner: Tilting positioner.L type welding positioner.Head and tail stock welding positioner etc.
