Box Column End Face Milling Machine

Box Column End Face Milling Machine Structure Introduction:

           The H Beam and Box Column End Face Milling Machine is composed of horizontal driving, horizontal sliding table, vertical driving, vertical rotating sliding table and electrical control system

1.  Horizontal driving

          This is composed of table, horizontal feed motor, speed reducer, horizontal driving screw mandrel and screw nut. The table adopted welding structure and through annealing, and then through rough process and precision process. Its characteristics: high strength, little deformation, reasonable structure and good technology; one good load capacity rectangle track and one precision V-type track.

Horizontal driving mechanism is composed of feed box, trapezoidal feed screw driving and support frame; feed box adopted double speed motor, each used for horizontal feed and horizontal quick forward and backward during milling process; feed screw driving use drive and idle screw nut to guarantee the precision of horizontal driving; the two screw nuts fixed on the screw nut base frame at the same time, the screw nut base frame is connected with horizontal sliding table which drive the sliding table moving forward and backward along the track.

2.  Horizontal sliding table

    It is mainly composed of sliding table and track guard plate; the sliding table is casting; vertical mechanism such as column fixed on the sliding table.The track guard device adopted telescopic cover superposition has good leak tightness and long service life. There’s sight hole on the guard plate, so you can see the lubrication station and cleanliness and also can add oil to track; there’s cover plate on the sight hole, so you can cover the sight hole after finished.

3.   Vertical driving

    It is composed of column, driving motor, speed reducer, trapezoidal screw mandrel and screw nut; the column is welding structure member and through welding, stress relief, mechanical milling process; it has advantages of stability structure and high mechanical strength.

Vertical driving mechanism is composed of vertical driving motor, speed reducer, and screw mandrel and nut; screw driving used drive and idle screw nut to guarantee the driving precision.

4.    Vertical rotating sliding table

    It is composed of elevating carriage, rotating worm gear and standard milling head;the elevating carriage is made of gray cast-iron and match with the vertical track on the column, it has advantages of good wearable and shock proof; rotating worm gear is made of nodular cast iron, it has advantages of good wearable and high strength, and drive the milling head rotating 0-450 on the elevating carriage so that can enlarge the process range; the milling head has advantages of reasonable structure, reliable performance, large speed range( the speed of main shaft is 125-630rpm), good rigidity, low noise, high efficiency and convenient operation, and reduce users’ difficulty on choosing tools.

5.   Electrical control system

          It is composed of electrical control box and operation system.


Box Column End Face Milling Machine Technical parameter:

Model

DX1215

DX1220

DX1520

DX1525

DX2025

DX3030

Milling motor power(Kw)

7.5

7.5

7.5

7.5

7.5

7.5

sliding table dimension (mm)

1200×750

1200×750

1500×750

1500×750

2000×750

3000×750

sliding table stroke(mm)

1500

2000

2000

2500

2500

3000

Moving speed(mm/min)

54.8~548

54.8~548

54.8~548

54.8~548

54.8~548

54.8~548

Quick return speed(mm/min)

822

822

822

822

822

822

Horizontal driving motor power(Kw)

4

4

4

4

4

4

Vertical driving motor power(Kw)

1.5

1.5

1.5

1.5

1.5

1.5

Milling head

1TX32

1TX32

1TX32

1TX32

1TX32

1TX32

Milling cutter diameter(mm)

200-320

200-320

200-320

200-320

200-320

200-320

Quick elevating speed(mm/min)

530

530

530

530

530

530


 Box Column End Face Milling Machine Goods supply range:

a.   Elevating column: 1TX32 milling head, elevating slide plate, elevating column, balance, elevating transmission mechanism.

b.   Horizontal sliding table: working table, body, feeding power box, feeding screw mandrel.

c.    Electrical control system: electrical control box, operation table and import AC converter.

d.   Tool holding: drag bar, core shaft, Φ200 facing cutter

e.    Box column or H beam holding device: hydraulic support frame, pump and oil pipe

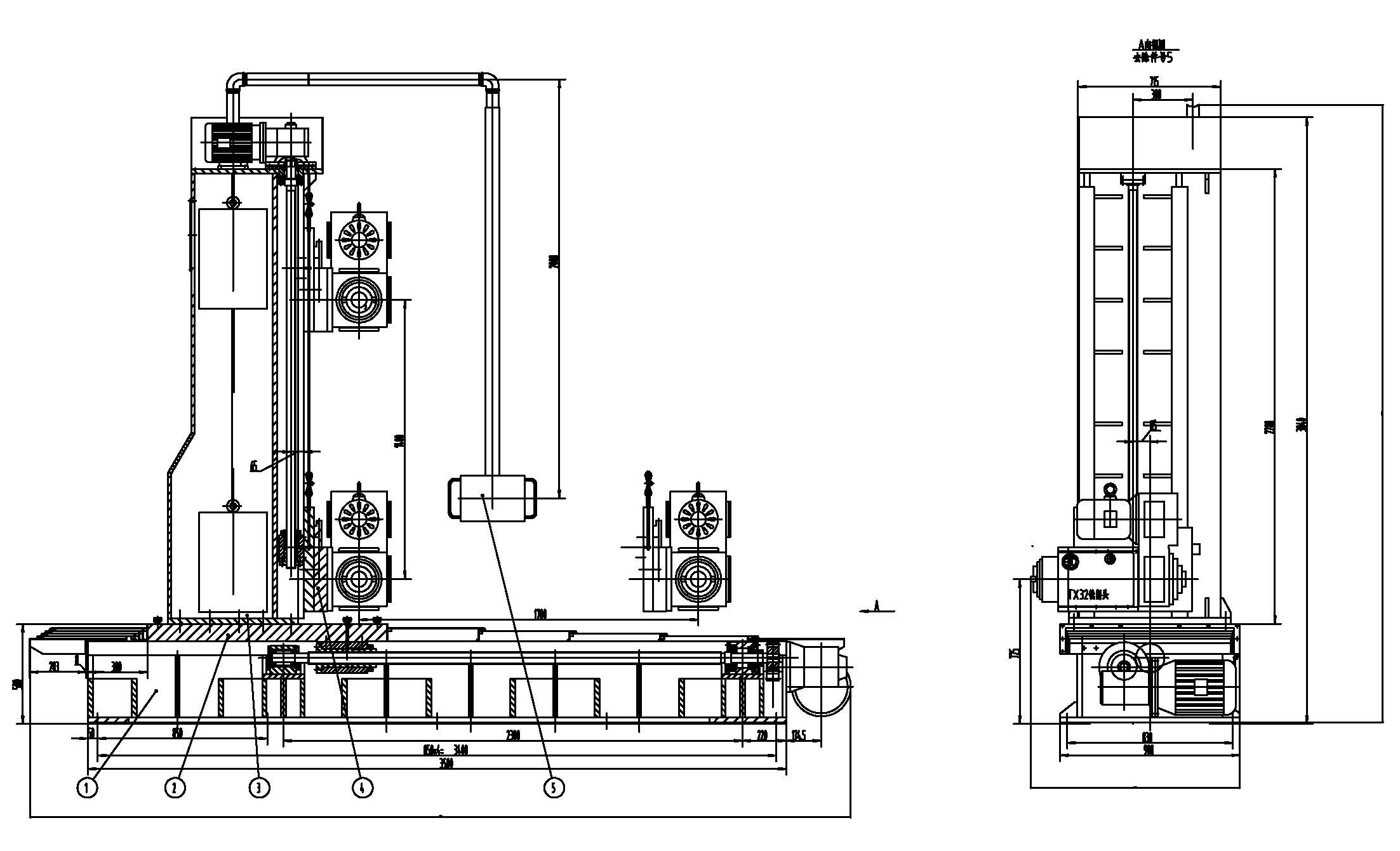

 Box Column End Face Milling Machine Drawing:

DX1215-00

Box Column End Face Milling Machine Details:

1c284267ab3ede212c79a8a279cc211

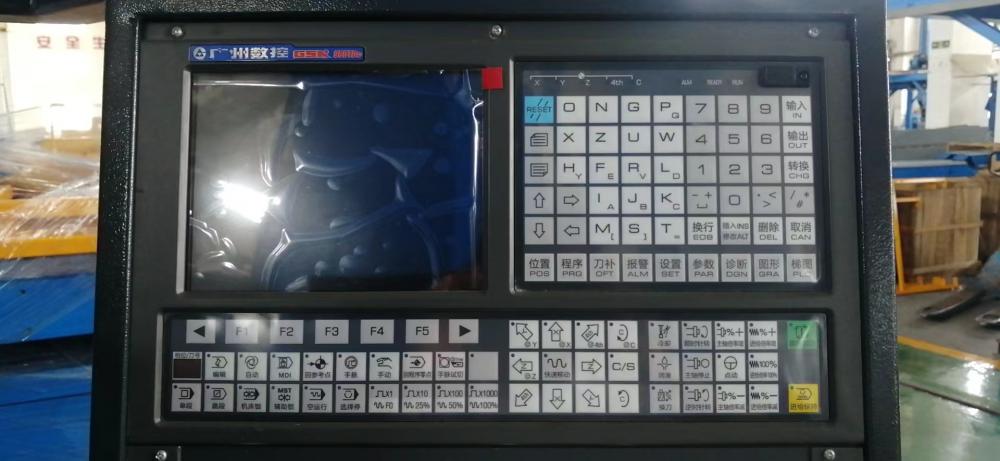

GSK CNC Controller control the movement of the servo motor, which greatly improves the milling accuracy of BOX column.


4e71b13035ba99f8c78f3f6f51131c0

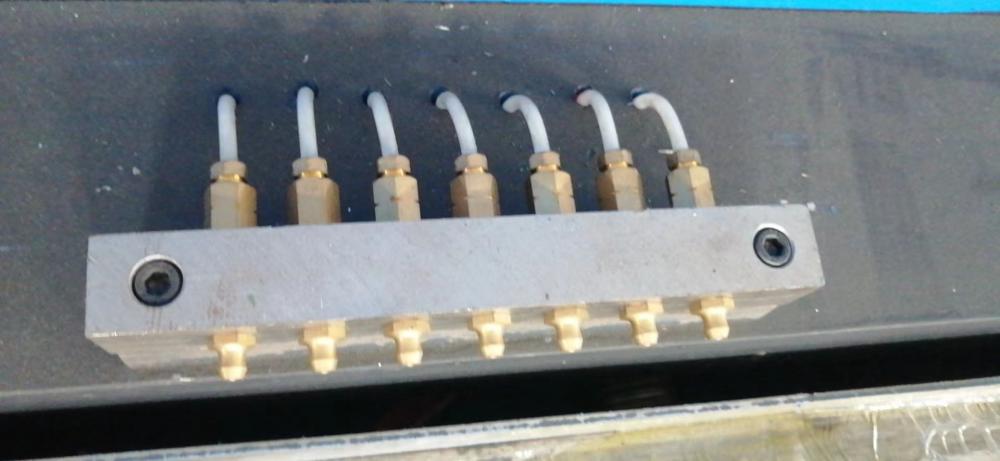

The centralized oil supply lubrication system keeps each lubrication point in a good lubrication state at all times.


469545076859306b73b3c7fe7778715

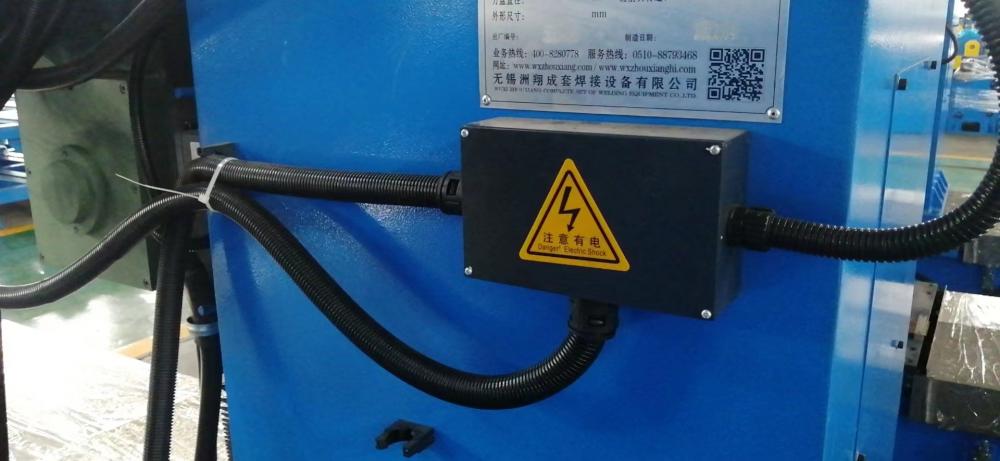

Professional electrical control junction box and cable protection device to ensure that the wires are not worn and long life.


Why choose us--- China Zhouxiang Complete Set of Welding Equipment Co.,Ltd ?

As the largest H-beam manufacturing equipment manufacturer in China, we have strong design and manufacturing capabilities, with an annual production capacity of US$40 million.

How to produce qualified H-beam? It is an important category of our continuous research for 30 years. Our main products are: CNC Control Flame/Plasma cutting machineH beam assembling machineH beam welding machineH beam straightening machineH beam shot blasting machineH beam assembly-welding-straightening multi-functions machineH beam horizontal productions lineautomation welding machine etc.
