The UKK 80A is a DIN Rail Terminal Block designed for secure and efficient power distribution in electrical panels. As a Terminal Connector, it ensures reliable connections for high-current applications, making it ideal for industrial control systems, power distribution networks, and machinery. Its Power Supply Terminal Block design supports stable and durable connections for both solid and stranded copper wires. Constructed from high-quality, flame-retardant materials, it offers excellent resistance to heat, impact, and electrical tracking, ensuring long-term performance in demanding environments. The DIN rail mounting simplifies installation, while its robust design ensures vibration resistance and gas-tight connections.
The UKK 80A stands out for its high current capacity (80A), compact design, and ease of installation. Compared to competitors, it provides superior durability, reliability, and cost-effectiveness. Each unit undergoes rigorous testing to ensure compliance with industry standards, delivering consistent performance and safety. Perfect for professional electrical systems, the UKK 80A combines advanced engineering, user-friendly features, and robust construction, making it a top choice for efficient and dependable power distribution.

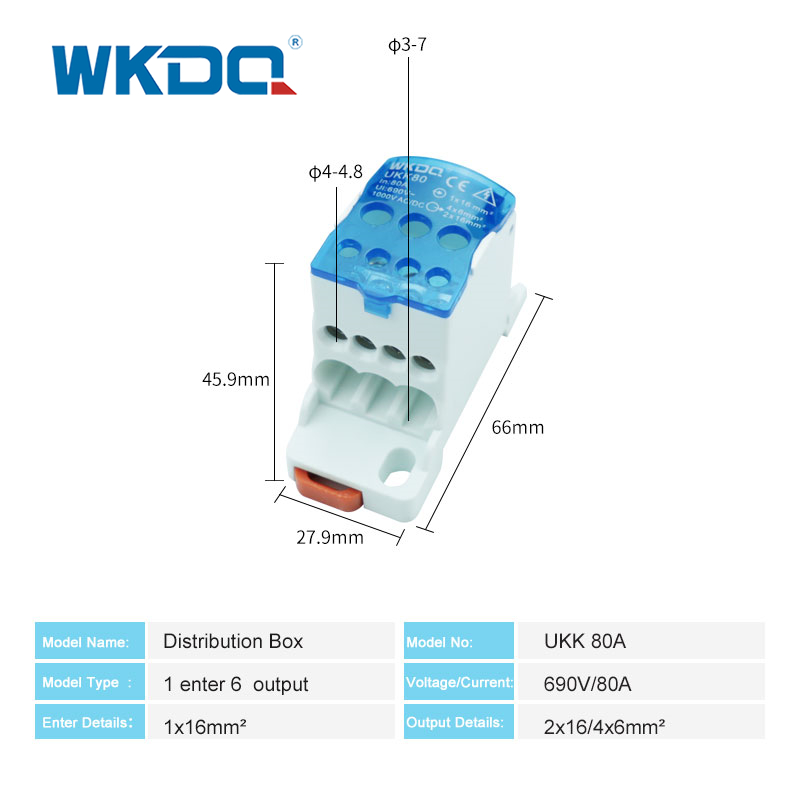

| Model No. | UKK 80A |
| Color | Blue,Gray,Red,Yellow,Green |
| Length/Height/Wide (mm) | 29.5/47/65 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 690V/80A |
| Entry Specification | 1X16 mm² |
| Output Specification | 2X16/ 4X16 mm² |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
