Product details

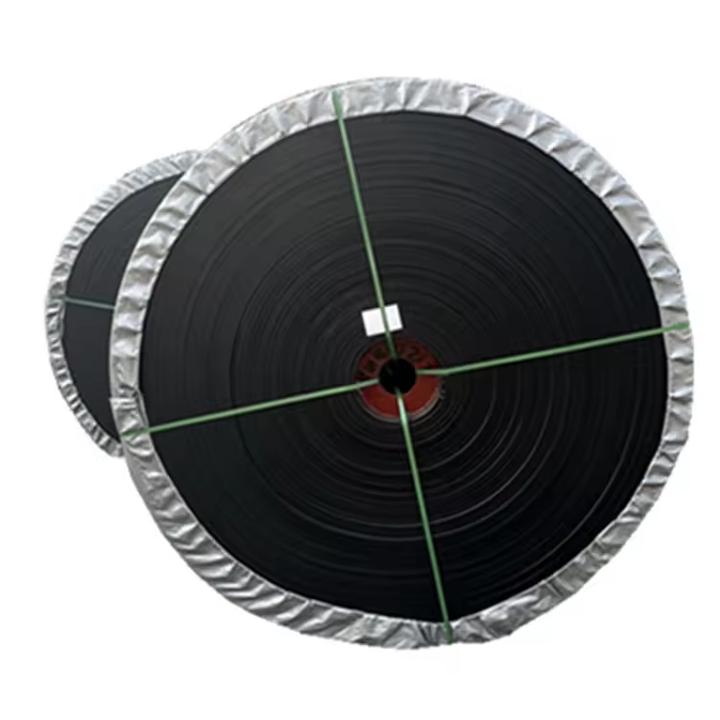

ST/S2500 1000(5+6+6) conveyor belt

Technical Specifications and Composition

Strength Rating: The “ST/S2500” indicates the strength of the Flame Retardant Belt. “ST” stands for Steel - Cord conveyor belt. The number “2500” represents the longitudinal tensile strength of the belt, which is 2500 N/mm. This high - strength rating means that the belt can withstand significant pulling forces, making it suitable for heavy - duty applications.

Steel - Cord Construction: The core of an ST/S2500 conveyor belt consists of parallel steel cords. These cords are the main load - bearing elements. They are evenly spaced and embedded in a rubber matrix. The rubber not only holds the cords in place but also provides protection against abrasion, moisture, and other environmental factors.

Cover Layers: The conveyor belt has top and bottom cover layers. These covers are made of rubber compounds formulated to meet specific requirements. The top cover, which comes into contact with the conveyed material, is typically designed for high abrasion resistance. For example, in a mining operation where the belt is transporting sharp - edged rocks, the top cover needs to be able to withstand the scraping and rubbing action. The bottom cover, on the other hand, is more focused on providing protection against wear as the belt runs over pulleys and idlers.

Advantages

High Load - Carrying Capacity: Due to its high tensile strength, the ST/S2500 conveyor belt can carry large volumes of heavy materials. In a large - scale mining or quarrying operation, it can transport tons of ore, coal, or aggregate over long distances without the risk of breaking or excessive stretching.

Long Service Life: The combination of high - quality steel cords and durable rubber covers results in a long - lasting conveyor belt. The steel cords maintain the structural integrity of the Flame Retardant Conveyor Belt, while the rubber covers protect against wear and tear. This reduces the frequency of belt replacements, leading to lower maintenance costs and increased productivity.

Smooth Operation: The uniform distribution of steel cords in the

General Purpose Flame Retardant Steel Cord Conveyor Belt ensures smooth running. There is less likelihood of belt (running off - center) compared to some other types of conveyor belts. This smooth operation is beneficial for maintaining the efficiency of the conveyor system and reducing damage to the belt and other conveyor components.
