Description:

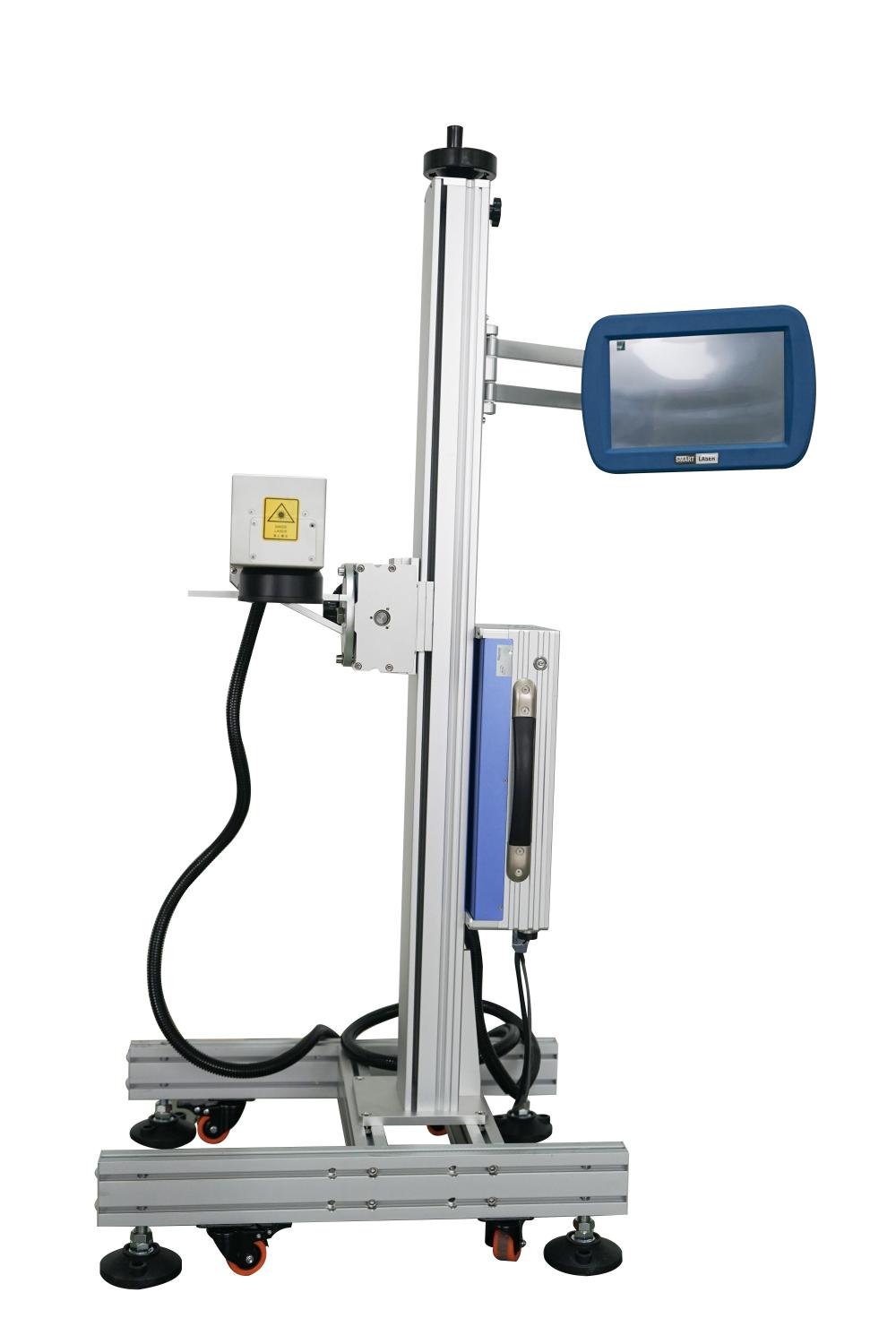

The flying laser marking system and assembly line marking are related to the process of the production line.
The laser marking machine replaces the inkjet printer to work on the assembly line products in the process flow of the production line. When the product passes through the induction area of the laser marking machine, it triggers the laser marking machine and makes it complete the marking work.
The workable product material can be selected according to whether the laser source is carbon dioxide laser or fiber laser.
The visual system is an additional function equipped with laser marking as required.
Product Feature:
●It is easy to maintain, more efficient and more stable.
●It can be customized according to actual needs, so that the laser marking machine can better meet the needs of industrial production, greatly improve efficiency and save production costs.
●Because of its unique visual and tactile effects and the characteristics of never being erased, it has strong anti-counterfeiting and can prevent the occurrence of fleeing goods.
●The machine has a long service life and can be used continuously for a long time.
●The machine is widely used in the tobacco industry, biopharmaceuticals, wine industry, food and beverage, health care products, electronics industry, defense industry, auto parts, card manufacturing, crafts, clothing accessories, building materials and some special fields.
|
Product Name |
Flying Laser Marking Machine |
|
Model |
FMF30W |
|
Output Power |
30W |
|
Repetition Frequency |
30~60kHz |
|
Max. Single Pulse Energy |
1MJ |
|
Beam Quality |
TEM00(M2≤1.5) |
|
Wavelength |
1064nm |
|
Cooling Type |
Air Cooling |
|
Marking Area |
70x70mm/110x110mm/150x150mm/ |
|
Focus Mode |
Double Red Light |
|
Marking Depth Single Time |
0.03~0.08mm |
|
Marking Speed |
7000~8000mm/s |
|
Repeat Accuracy |
<20μrad |
|
Mini Linear Width |
0.01mm |
|
Mini Character Size |
0.2mm |
|
Repeatability |
±0.001mm |
|
Ambient Temperature |
0~40℃ |
|
Voltage |
AC220/110V±10% 50/60Hz |
|
Power Consumption |
<800W |
We are a manufacturer of fiber laser marking machine, we also have a wide range of laser welding machines, laser cutting machines and laser cleaning machine. Contact for detailed specification and direct factory wholesale price for all laser machines.
