Product name
|
: multi-parallel Biology and pharmacy fermentation system
|
|
|
|
|||
|
Material
|
stainless steel
|
|
|
|
|||
|
MOQ
|
1 set
|
|
|
|
|||
|
OEM
|
Accept customization
|
|
|
|
|||

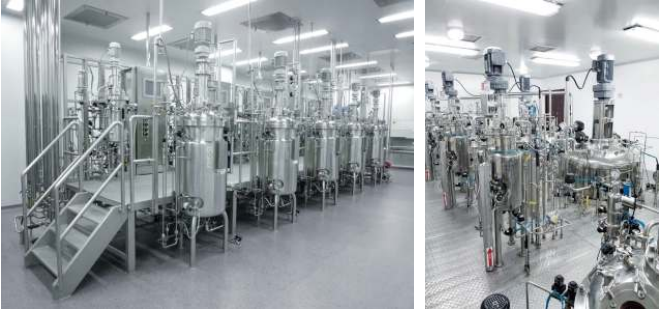

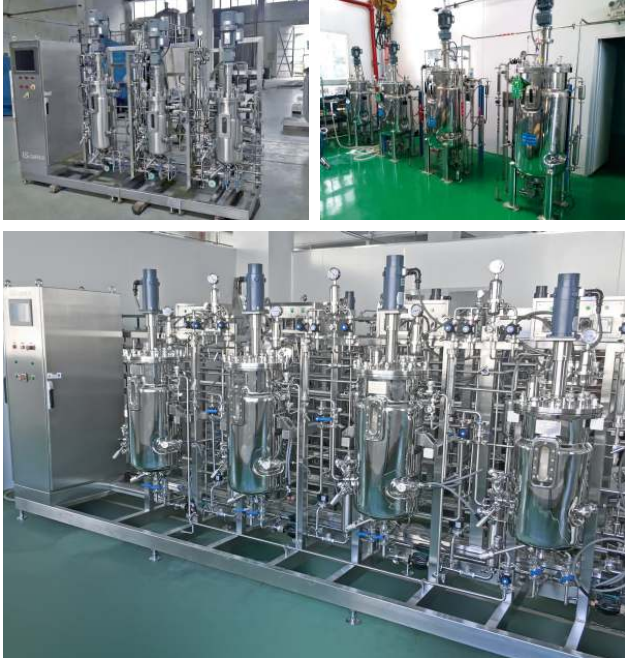

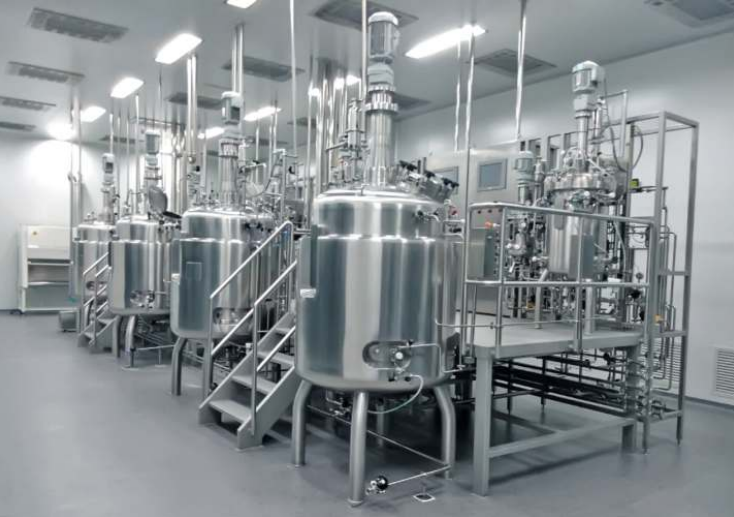

Product Show
1. Equipment name: three-stage mechanical stirring stainless steel liquid fermentation tank system
2. Model: BL-BJ-5L-50L-500L
3. Technical parameters
1. System composition: air filtration system, steam filtration system, constant temperature system, pipeline system, auxiliary system, sensor and primary instrument system, lower computer field control system (PLC control system, including secondary instrument) and other components.
2. Tank system
Tank body: full capacity: 5L-50L-500L; liquid filling coefficient 70-80%
Tank material: SUS316L/SUS304 high-quality stainless steel, can be sterilized at high temperature, acid and alkali resistance.
Design pressure: 0.3Mpa, working pressure: 0.15Mpa.
Tank structure: 1 side-view mirror/top-view mirror, 1 feeding port, 1 inoculating port, 1 standard temperature, pH, DO sensor socket, 1 defoaming electrode interface, 2 standard universal feeding ports, out 1 material inlet, the inner surface polishing Ra≤0.4um, the outer surface polishing Ra≤0.6um.
Sterilization method: steam sterilization in place.
3. Mechanical system
Mechanical stirring: The second-speed straight blade, the turbine-type pressing inclined blade, the blade height can be adjusted, and different types of stirring paddles and speed controllers can be replaced according to the special requirements of the fermentation process.
Stirring speed: 150-1000rpm, 50-740rpm, 30-350rpm;
4. Piping system: stainless steel pipes and stainless steel valves, and diaphragm valves are used in key parts.
5. Control system: It adopts the newly developed BL-BIO6000 series fermentation process automation control system, which is composed of Siemens PLC programmable controller, Kunlun Tong-state 7-inch color LCD screen and electrical components of international famous brands such as Schneider and ABB. Realize temperature, rotational speed, defoaming, feeding, pH, DO control and monitoring; can switch between manual control and automatic control at any time; the system consists of lower computer control system, sensors and actuators, etc., floor-standing control cabinet, Chinese Menu and interface, can record and display multiple parameter curves.
6. Supporting equipment: supporting oil-free air compressor and steam generator.
