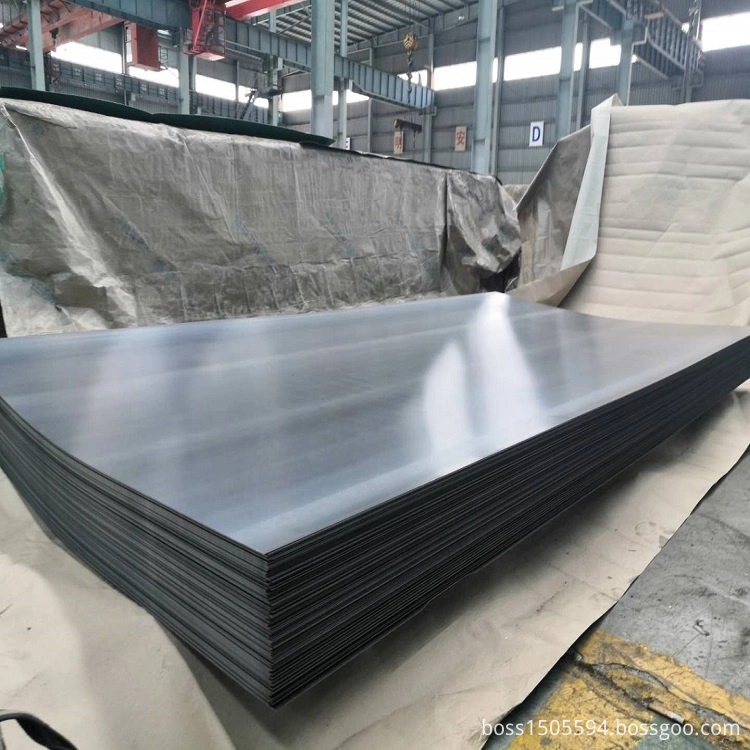

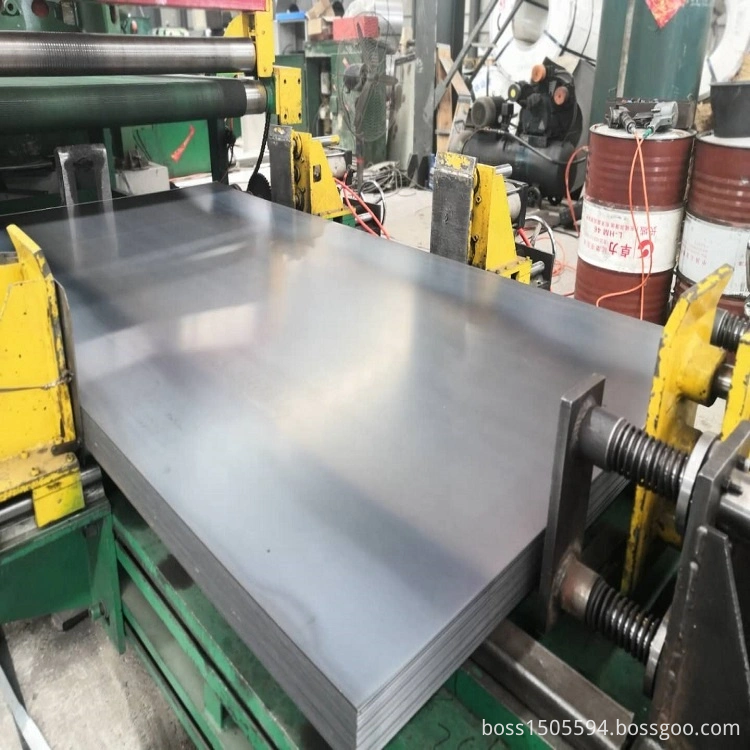

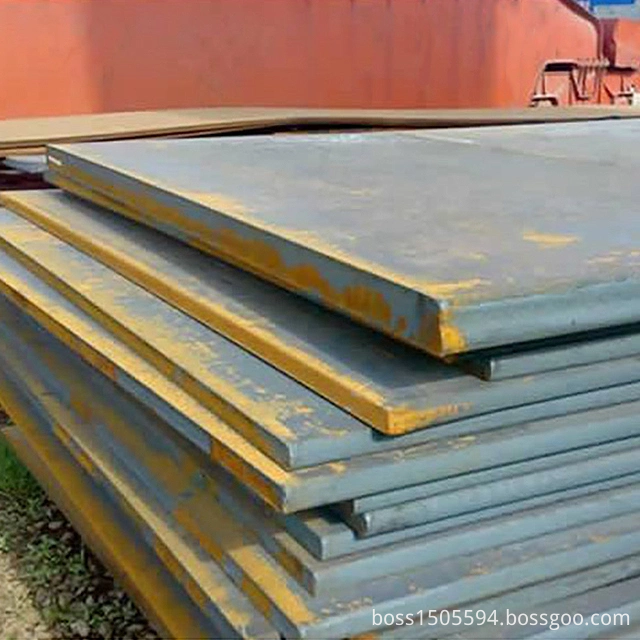

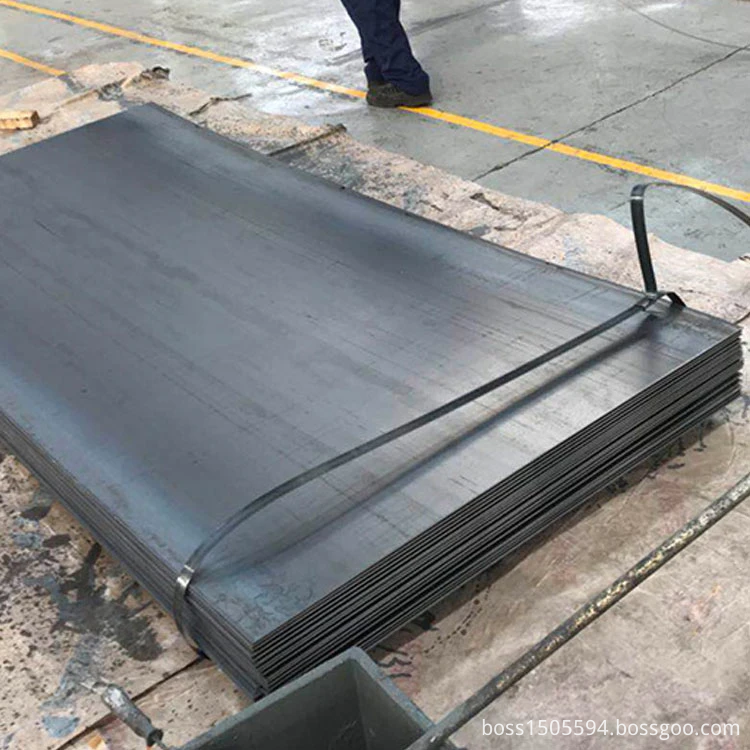

SA516 is a carbon steel plate grade utilized primarily in welded pressure vessels for moderate to lower temperature service. This material is produced in grades 55, 60, 65 and 70. This material is also offered in the normalized condition where improved notch toughness is required. We also offer wear resistant steel plate.
ASTM A516 Pressure Vessle Steel Plate is one mainly of Steel for boiler steels.asme a516 Alloy Steel Plate is mainly used for boilers and pressure vessels with elevated temperatures equivalent to.Ship building plate is widely used.including weather resistant steel plate.
| Steel Grade | Maximum C for Thickness t(mm) | Mn forthickness t(mm) | Si | P max | S max | ||||
| 6 ≤ t≤ 12.5 | 12.5<t≤25 | 25<t≤50 | 50<t ≤ 63 | t<12.5 | t>12.5 | ||||
| ASTM A516 Grade 55 | 0.18 | 0.23 | 0.26 | 0.26 | 0.55-0.98 | 0.55-1.3 | 0.13-0.45 | 0.035 | 0.035 |
| ASTM A516 Grade 60 | 0.21 | 0.23 | 0.23 | 0.25 | 0.60-0.90 | 0.85-1.20 | 0.13-0.45 | 0.035 | 0.035 |
| ASTM A516 Grade 65 | 0.24 | 0.26 | 0.26 | 0.28 | 0.85-1.20 | 0.85-1.20 | 0.13-0.45 | 0.035 | 0.035 |
| ASTM A516 Grade 70 | 0.27 | 0.28 | 0.28 | 0.3 | 0.85-1.20 | 0.85-1.20 | 0.13-0.45 | 0.035 | 0.035 |
| ASTM A516 | Tensile Strength(MPa) | Minimum yieldstrength (MPa) | Minimum elongation (%) In agauge length of: | |
| 50mm | 200mm | |||
| Grade 55 | 380-515 | 205 | 23 | 27 |
| Grade 60 | 415-550 | 220 | 25 | 21 |
| Grade 65 | 450 | 240 | 23 | 19 |
| Grade 70 | 485 | 260 | 21 | 17 |
| ASME | ASTM | DIN 17155 | EN 10028 | BS1501 | |
| Steel Grade | Steel Grade | Name | Number | ||
| SA516Gr60 | A516Gr60 | HII | P265GH | 1.0425 | 161 430A |
| SA516Gr65 | A516Gr65 | 17Mn4 | P295GH | 1.0481 | |
| SA516Gr70 | A516Gr70 | P355GH | 224-490 A & B | ||
| ASTM A515 | A515Gr70 | 5-20 * 2300-2500 * C | Boron added or Black Condition |
| ASTM A516 | A516Gr70 | 5-20 * 2300-2500 * C | Boron added or Black Condition |
If you are interested in the product, contact 2bvideo.com for more information for more information
