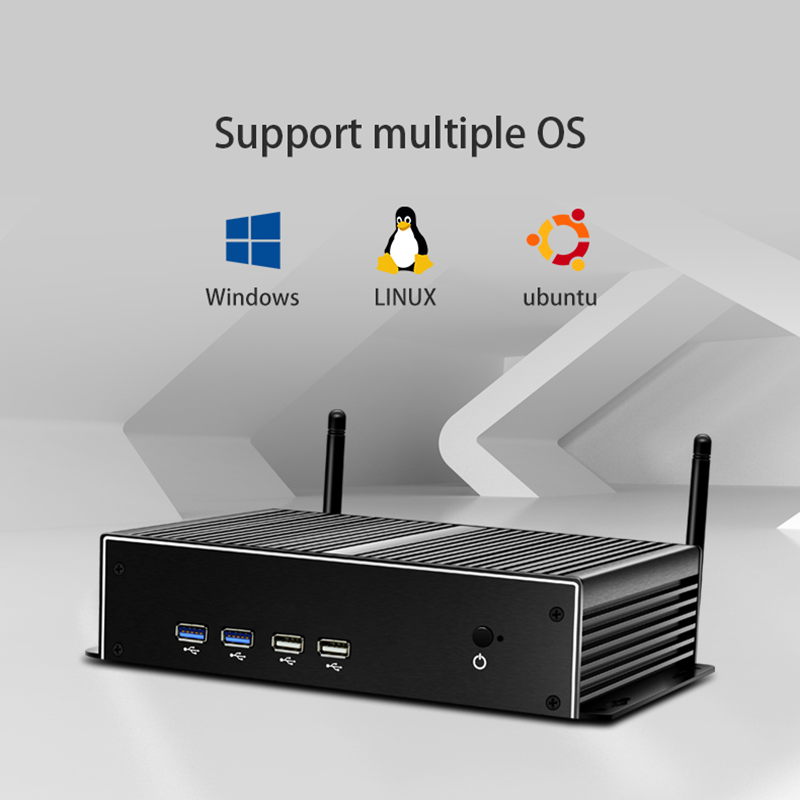

This Industrial Computer adopt fanless cooling system, fast heat dissipation, totally silence, 7*24 hours working.This Industrial PC onboard I7 processor, it is high performance and low power comsumption.And this Industrial Mini Computer with 6RS232 COM port, the COM serial port is general-purpose port, which can be used for various communication equipment.The last but not the least, this Mini Industrial PC support multipe operating system, including windows 7, window 8, windows 10, LINUX and other operating system.
Product Details
CPU: Intel Core i7-5500U Processor,4M Cache, up to 3.00 GHz,2 Core 4 threads,TDP:15W
Intel Core i7-4500U Processor,4M Cache, up to 3.00 GHz,2 Core 4 threads,TDP:15W
Intel Core i5-4200U Processor,3M Cache, up to 2.60 GHz,2 Core 4 threads,TDP:15W
Intel Core i3-4010U Processor,3M Cache, 1.70 GHz,2 Core 4 threads,TDP:15W
Intel Pentium Processor 3805U,2M Cache, 1.90 GHz,2 Core 2 threads,TDP:15W
Intel Celeron Processor 2955U,2M Cache, 1.40 GHz,2 Core 2 threads,TDP:15W
Intel Celeron Processor J1900,2M Cache, up to 2.42 GHz, 4 Core
GPU: GPU: 3805U/2955U/J1900：HD Graphics | i7-4500U/i5-4200U/i3-4010U：HD Graphics 4400 | i7-5500U：HD Graphics 5500
VGA: Maximum resolution 1920*1080@60Hz
HDMI: Maximum resolution 2560×1600@60Hz
Dual display: VGA + HDMI,Support for Synchronous or Asynchronous Display
Memory: 2GB/4GB/8GB DDR3L 1333/1600MHz 1.35V, 2*204 pins SO-DIMM slot, Max support 2 x 8GB（3805U/2955U/J1900 Max to 8G）
Hard Disk: SSD:1*Full Height mSATA socket, HDD:1*SATA.

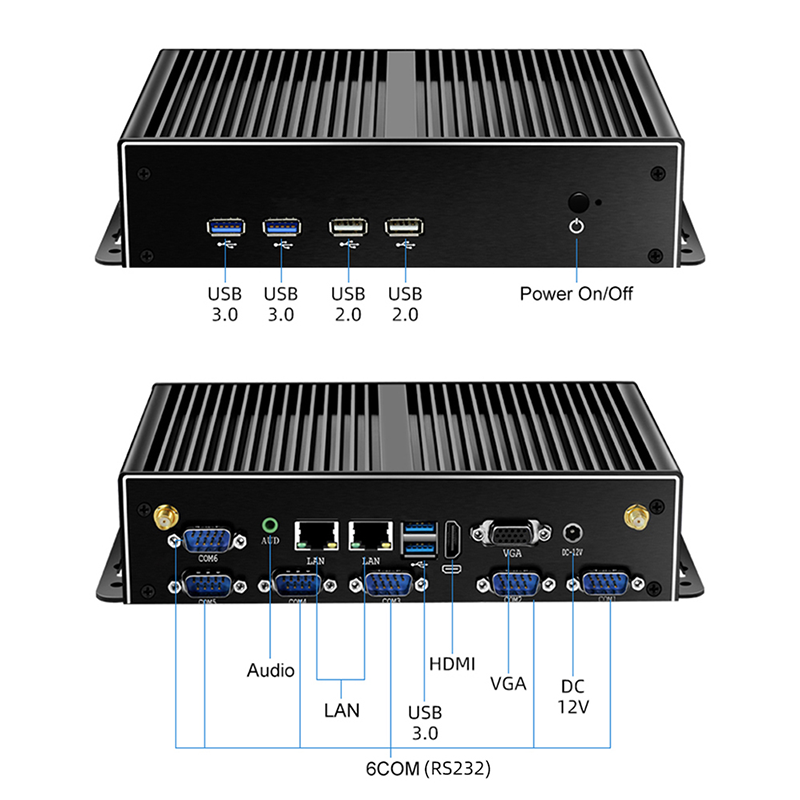

Port: 4 x USB3.0, 2 x USB2.0, 6 x COM (2 x RS232, 4 x RS232/422/485), 2 x Lan, 1 x HDMI, 1 x VGA, 1 x MIC, 1 X SPK
LAN: 10/100/1000/ Mbps Intel 211AT
Audio: Main system:Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out
Extension: 1× full height size Mini PCIE for WiFi/3G/4G module, 1× SIM card slot
Power Requirement: Power Type:DC-IN5.5*2.5, Power Input Vol:12V, Power Input Ampere:5A, Power Supply:DC 12V 5A
Working Environment: Operating Temperature -20℃-65℃, Storage,Temperature 15℃-35℃, Relative Humidity 5%~95% (non-condensing)
If you are interested in the product, contact 2bvideo.com for more information for more information
