Tips
- There is only one MPPT, and the dual PV input is to facilitate solar panel wiring and reduce the use of combiner box.
- The benefits of comparing dual MPPT: single entry, good consistency of machine control.
- The secondary output in the dual output is for emergency use, the power is only one-third of the main output, when there is no PV utility input, and the battery voltage is too low, only when the secondary output will be used, under normal circumstances do not need to connect.
-There is a detailed tutorial on the product manual, or you can contact us.
Data Sheet
|
Model
|
JSN-H4872E160
|
JSN-H4882E160
|
JSN-H48102E160
|
|
Rated Output Power
|
7200W/7200VA
|
8200W/8000VA
|
10200W/10200VA
|
|
Max. PV Input Power
|
8200W
|
8200W
|
10200W
|
|
Max. Solar Charging Current
|
160A
|
160A
|
160A
|
|
Grid Tie Operation
|
|||
|
PV Input(DC)
|
|||
|
Normal DC Voltage / Max. DC Voltage
|
360VDC/500VDC
|
||
|
Start-up Voltage / Initial Feeding Voltage
|
90VDC/120VDC
|
||
|
MPPT Voltage Range
|
90VDC~450VDC
|
||
|
Number of MPPT Tracker / Max. Input Current
|
1/27A
|
||
|
Grid Output(AC)
|
|||
|
Nominal Output Voltage
|
220/230/240VAC
|
||
|
Output Voltage Range
|
195~253VAC
|
||
|
Nominal Output Current
|
31.3A
|
35.6A
|
44.3A
|
|
Power Factor
|
＞0.99
|
||
|
Feed-in Grid Frequency Range
|
49~51±1HZ
|
||
|
Efficiency
|
|||
|
Max. Conversion Effeciency(DC/AC)
|
98%
|
||
|
Two Load Output Power
|
|||
|
Full Load
|
7200W
|
8200W
|
10200W
|
|
Max. Main Load
|
7500W
|
8200W
|
10200W
|
|
Max. Second Load(Battery Mode)
|
2400W
|
2733W
|
3400W
|
|
Main Load Cut Off Voltage
|
44VDC
|
44VDC
|
44VDC
|
|
Main Load Return Voltage
|
48VDC
|
48VDC
|
48VDC
|
|
Off Grid Operation
|
|||
|
AC Input
|
|||
|
AC Start-up Voltage / Auto Restart Voltage
|
120-140VAC/180VAC
|
||
|
Acceptable Input Voltage Range
|
90-280VAC/170-280VAC
|
||
|
Max. AC Input Current
|
40A
|
40A
|
50A
|
|
Nominal Operatiing Frequency
|
50/60HZ
|
||
|
Super Power
|
14400W
|
16400W
|
20400W
|
|
PV Input(DC)
|
|||
|
Max. DC Voltage
|
500VDC
|
||
|
MPPT Voltage Range
|
90VDC~450VDC
|
||
|
Number Of MPPT Tracker/Max. Input Current
|
1/27A
|
||
|
Battery Mode Output(AC)
|
|||
|
Normal Output Voltage
|
48VDC
|
||
|
Output Waveform
|
Pure Sine Wave
|
||
|
Efficiency(DC to AC)
|
94%
|
||
|
Battery & Charger
|
|||
|
Nominal DC Voltage
|
48VDC
|
||
|
Max. Solar Charging Current
|
160A
|
160A
|
160A
|
|
Max. AC Charging Current
|
140A
|
140A
|
140A
|
|
General
|
|||
|
Physical
|
|||
|
Product Dimension
|
420*310*110mm
|
||
|
Carton Dimension
|
588*463*205mm
|
||
|
Net Weight
|
14.2KGS
|
14.2KGS
|
14.5KGS
|
|
Gross Weight
|
15.7KGS
|
15.7KGS
|
16.0KGS
|
|
Interface
|
|||
|
Communication Port
|
RS23/WIFI/Remove LCD /GPRS
|
||
|
Enviroment
|
|||
|
Operating Temperature
|
-10~50°C
|
||
* One click to restore factory settings.
* Built-in 160A MPPT solar charger.
* Built-in lithium battery automatic activation.
* Built-in anti-dusk kit for harsh environment(optional).
* High PV input voltage range(360~500VDC)
* Smart battery charge design to optimize battery life.

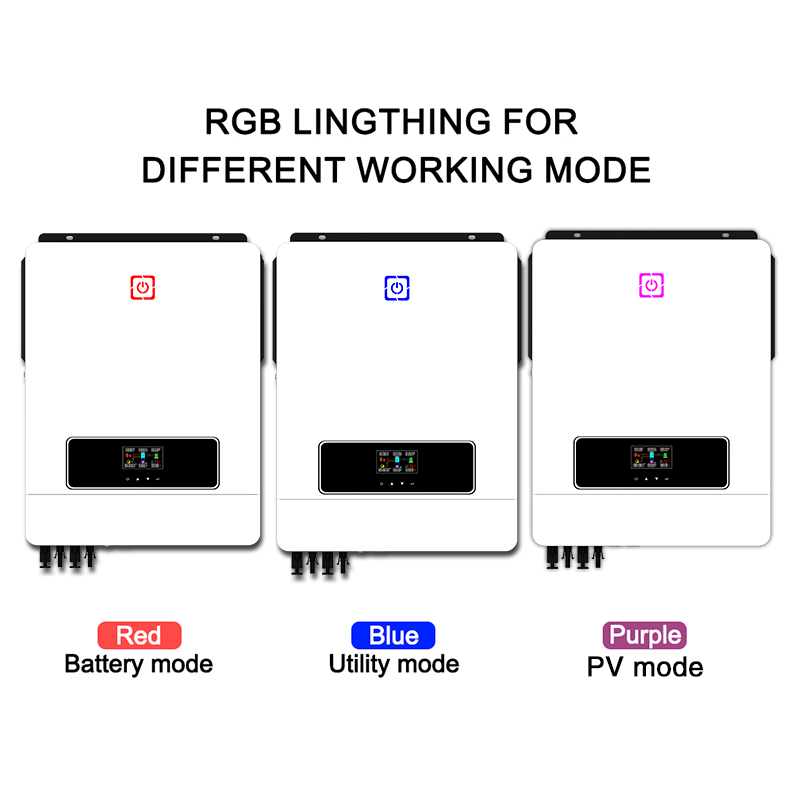

* Touch button, RGB light. * Dual output.
