Main Application
This V shape mixer machine is mainly used for mixing powder or granular materials in food, chemical, pharmaceutical and other industries. Unique v shape geometric structure, can achieve efficient uniform mixing. There is no dead corner and no residual material in the mixing process. This mixing machine is equipped with a unique stirring paddle, which can mix the raw materials which are caked or contain certain moisture. This blending machine is especially suitable for the raw materials which need to add a small amount of additives, but also can achieve uniform effect.
TECHNICAL DATA
|
MODEL
|
MODEL180
|
MODEL300
|
MODEL500
|
MODEL1000
|
|
Capacity(kg/h)
|
60
|
80
|
130
|
240
|
|
Total volume(m3)
|
0.18
|
0.3
|
0.5
|
1
|
|
Blending time(min)
|
4-8
|
6-10
|
6-10
|
6-10
|
|
Motor power(kw)
|
1.1× 1.1
|
1.1× 1.5
|
2.2× 2.2
|
3× 4
|
|
Cylinder speed(r/min)
|
15
|
15
|
12
|
12
|
|
Agitating speed(r/min)
|
500
|
500
|
500
|
500
|
|
Overall size(L×W×H)(mm)
|
1730×650×1700
|
1845×960×1850
|
2500×1350×2450
|
2800×1350×2700
|
|
Weight(kg)
|
320
|
480
|
620
|
1100
|

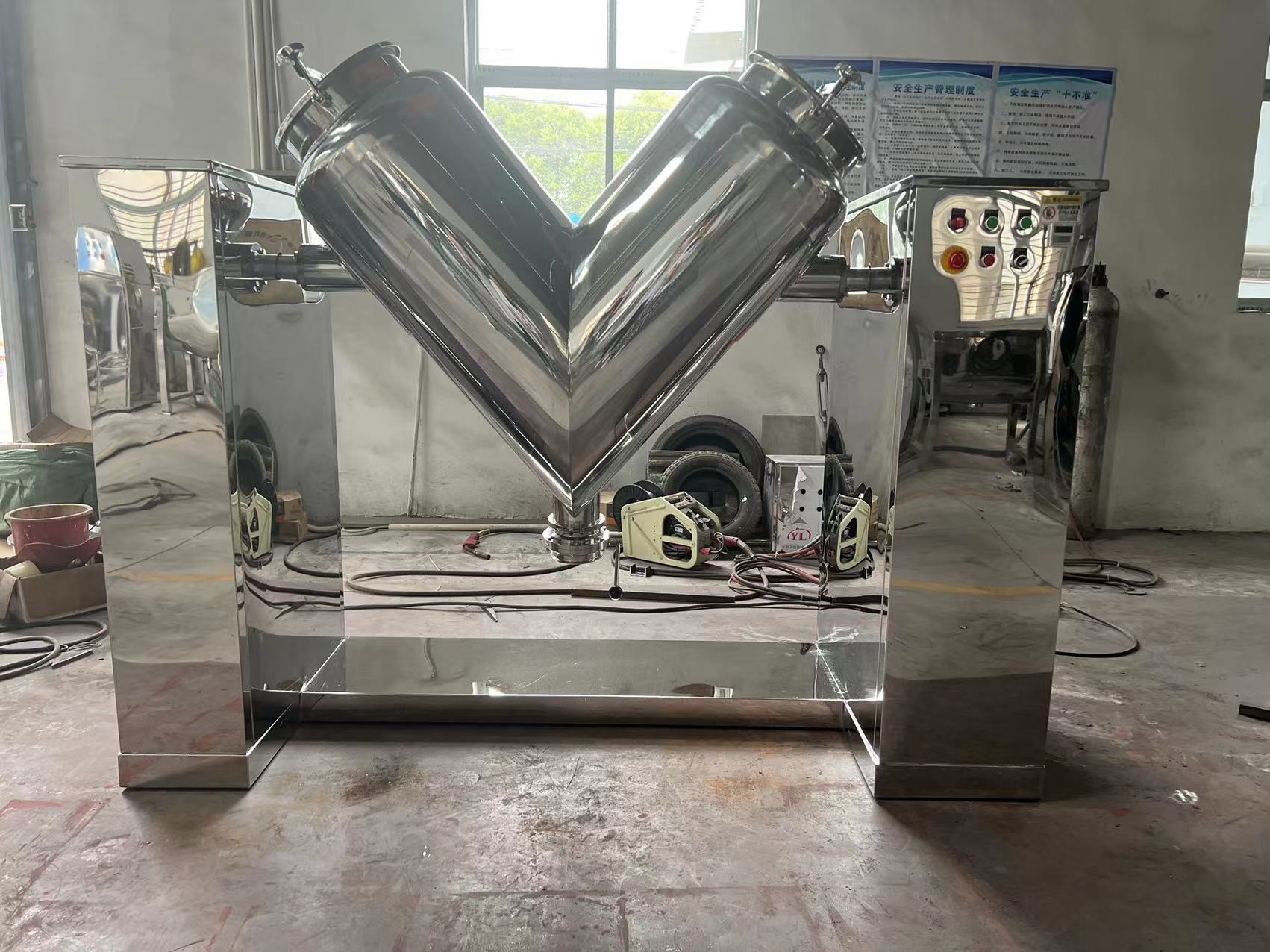

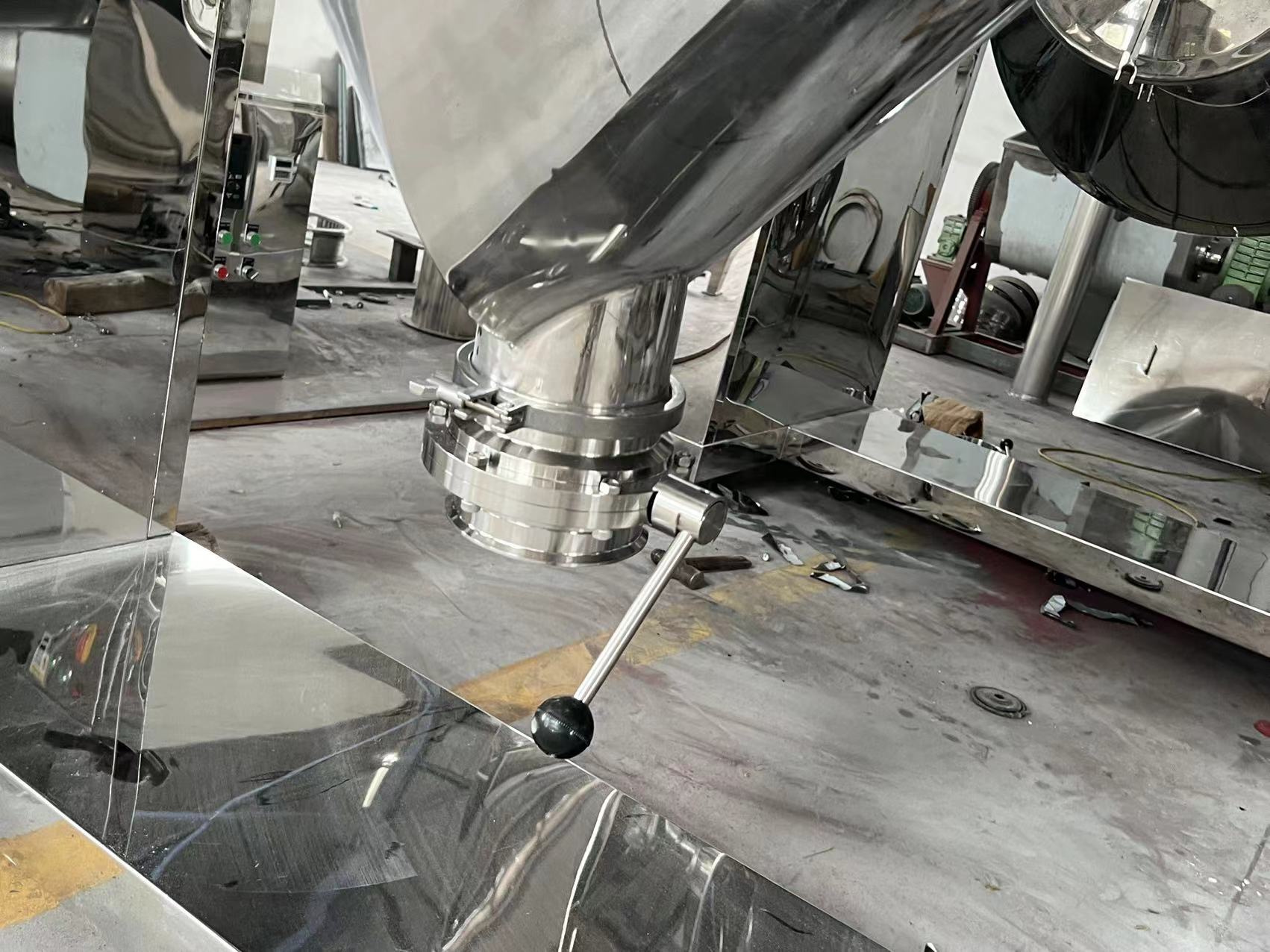

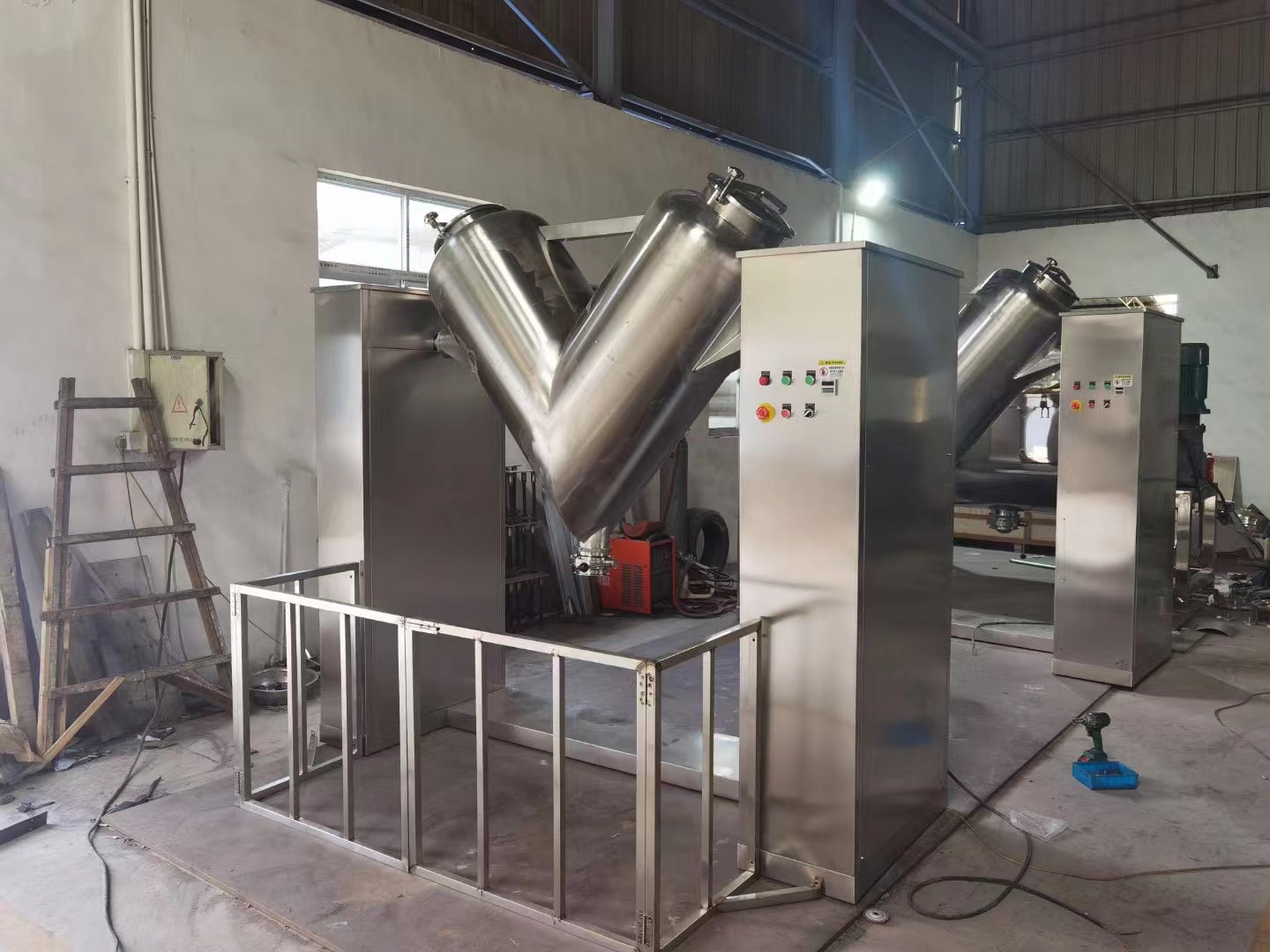

PRODUCT DISPLAY
If you are interested in the product, contact 2bvideo.com for more information for more information
