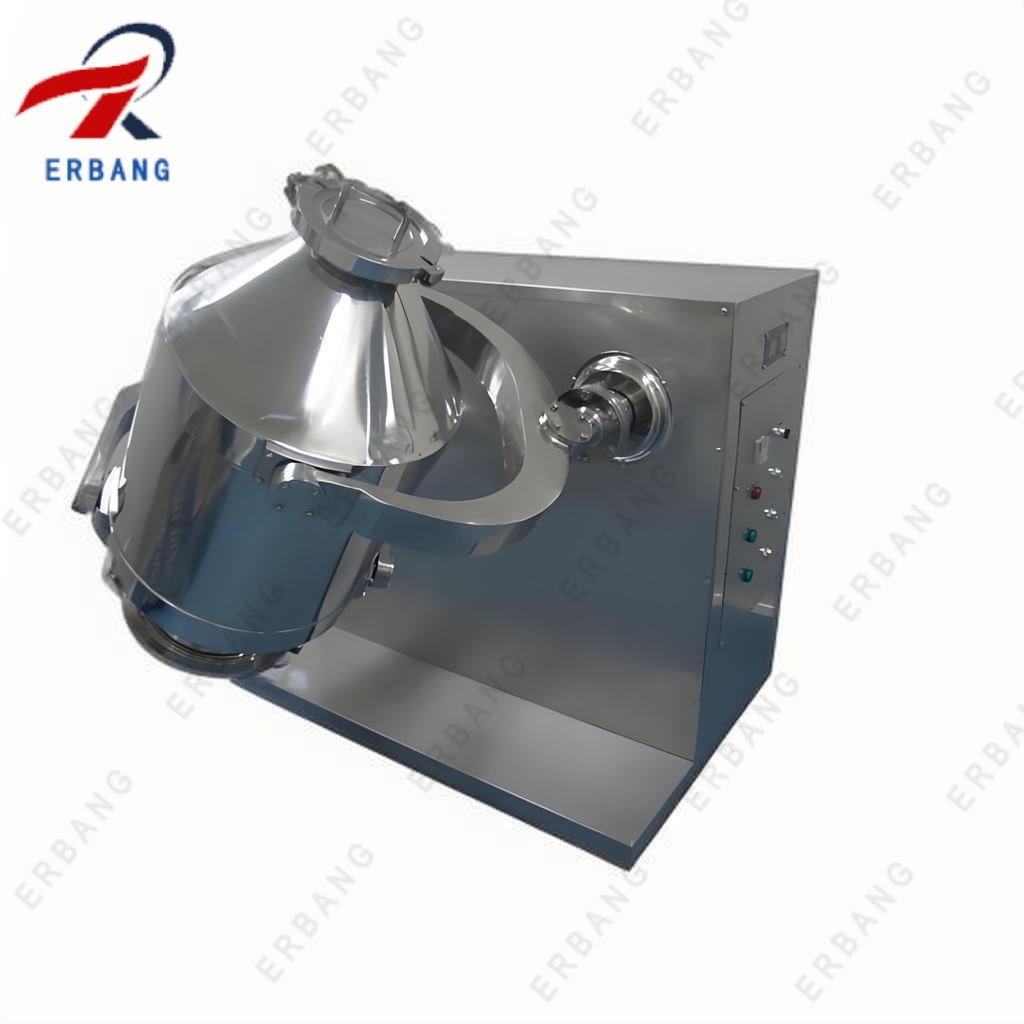

Traditional Chinese Medicine Mixing Machine
Product Introduce:
Erbang is professional manufacturer for drying machine, mixing machine (Traditional Chinese Medicine Mixer,Chinese Medicine Mixing Machine, Traditional Chinese Medicine Powder Mixer), granulating machine and grinding machine.From dryer, mixer to granulator, from unit machine to production line, we have them all. Erbang is a Chinese supplier of industrial dryer, mixer, granulator. our flagship products include the hot air dryer, microwave dryer, vacuum dryer, one dimensional mixer, two dimensional mixer, three dimensional mixer, and granulator and so on.......
Application and Features:
1. Mixing barrel moves in multiple directions, there is no centrifugal force on the material, as well as no phenomena of gravity segregation, delaminating and accumulation of materials so that the mixing rate can be up to 99.9 percent for the materials with big difference in terms of specific gravity. Therefore, this salt mixing machine is an ideal product current compare with other various mixers.
2. High loading rare (max. loading 80 percent)
3.The Traditional Chinese Medicine Mixer are suitable for mixing powder and granulate materials in pharmaceutical, chemical, food stuff, light industry, electronic, machinery, mining, metallurgical and national defense industrial, featuring high evenness mixing.
Product Application
The SYH Three Dimensional Mixer is used for mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes
Attention to order
1. When inquiry the SYH Series Three Dimensional Mixer, Client need to supply the materials state: powder or granules.
2. When inquiry the SYH Series Three Dimensional Mixer, Client need to supply the density of materials.
3. When inquiry the SYH Series Three Dimensional Mixer, Client need to supply the capacity per batch or capacity per hour.
5. When inquiry the SYH Series Three Dimensional Mixer, Client need to decide which kinds feeder that needed to load materials into mixer.
6. When inquiry the SYH Series Three Dimensional Mixer, Client need to decide which kinds steel for machine-304 stainless steel or 316L stainless steel.
7. Other special requirements.
| Model | barrel capacity(L) | max loading capacity(L) | max loading weight(Kg) | speed of driving shaft(r/min) | motor power(kw) | overall dimensions(mm) | total weight |
| SYH-1 | 1 | 0.8 | 0.4 | 15-30 | 0.12 | 500x600x600 | 50 |
| SYH-5 | 5 | 4 | 2 | 15-30 | 0.25 | 600x1000x1000 | 150 |
| SYH-15 | 15 | 12 | 6 | 8-15 | 0.37 | 700x1000x700 | 200 |
| SYH-50 | 50 | 40 | 20 | 8-15 | 1.1 | 1000x1400x1200 | 300 |
| SYH-100 | 100 | 80 | 40 | 8-15 | 1.5 | 1200x1700x1500 | 500 |
| SYH-200 | 200 | 160 | 80 | 8-15 | 2.2 | 1400x1800x1600 | 800 |
| SYH-400 | 400 | 320 | 160 | 8-15 | 4 | 1800x2100x1950 | 1200 |
| SYH-600 | 600 | 480 | 240 | 8-15 | 5.5 | 1900x2100x2250 | 1500 |
| SYH-800 | 800 | 640 | 320 | 8-15 | 7.5 | 2600X2380X2500 | 2000 |
If you are interested in the product, contact 2bvideo.com for more information for more information
