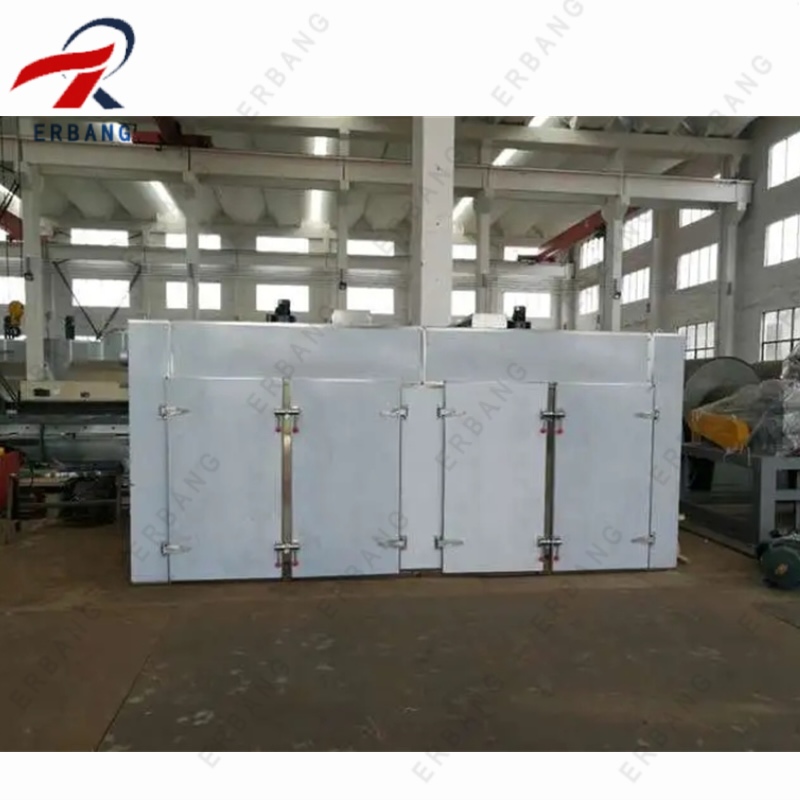

Pepper Slices Dryer Machine Description

Pepper Slices Dryer Machine adopts the forced circulation of hot air inside the chamber of the oven. In the drying chamber, hot air rises above and the hot air reaches the top of the chamber. Then, hot air is circulated back to the bottom by a fan installed inside the chamber and hence the optimum amount of heat is achieved gradually inside the oven. The drying is the process that the materials heated in the trays with hot air circle, the wet moisture takes out from material will be exhausted outside at the same time.

CT-C series Pepper Chips Drying Machinery adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%.

Feature

1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2. Drying temperature of High Efficiency Pepper Oven: steam heating 50-130˚C, Max.140˚C.

3. Machine use the automatic control system and computer control system

4. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)

5. For CT-C-O, electric heated, rated power consumption:9kW, real consumption : 3-5kW/h.

6. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.

7. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and can be exchanged each other.

8. Baking tray also drill hole if client have detail requirement.

9. Erbang Drying can design and manufacture the explosion proof hot air oven to dry the Flammable and explosive materials.

10.Erbang can design the hot air oven that set working time and delaying turn off fan so that reduce the heater hot energy gather inside the hot air chest.

11. Machine materials : AISISUS304 , AISISUS316L, and other material .

12. For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.

13. Smooth running, reliable performance, easy operation.

14. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.

15. Control system has more choices, such as push button , HMI+PLC and so on.

High Efficiency Pepper Oven Advantage
1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.

2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.

3. The whole machine is low in the noise. The operation is in balance.

4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.

5. The machine can be used for drying various materials.

High Efficiency Pepper Oven Application
This High Efficiency Pepper Oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Industry standard	Specification standard	Drying weight per batch (Kg)	Power (Kw)	Steam consumption (Kg/h)	Evaporation area (m2)	Air capacity (m3 /h)	Temperature error	Baking plate	Overall dimension (LxWxH) mm	Baking cart (set)
RXH-7-D	CT-C-O	60	0.75	12	7.1	3450	±2	24	1400×1200×2000	1
RXH-14-D	CT-C-I	120	0.75	18	14.1	3450	±2	48	2300×1200×2000	2
RXH-27-D	CT-C-II	240	0.75x2	36	28.3	6900	±2	96	3300×2200×2000	4
RXH-41-D	CT-C-III	360	0.75x3	60	42.4	10350	±2	144	3550×2200×2000	6
RXH-54-D	CT-C-IV	480	0.75x4	80	56.5	13800	±2	192	4460×1000×2290	8
Mark	It also design and manufacture base customer require. Welcome to contact us!
