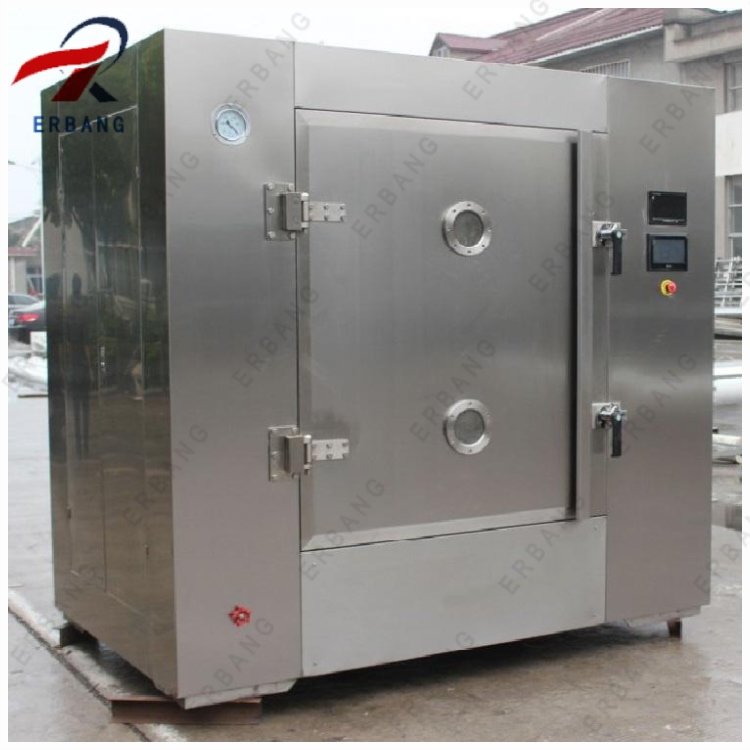

Hot Air Tray Dryer Discription
CT-C series Hot Air Tray Dryer adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit.
Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And Konjak Chip Drier can use dried raw material and heat source, involving steam, hot water, electricity or far infrared.
The circle system is fully sealed, making the hot efficiency increased from 3-7% of traditional oven to 35-45%, even up to the maximum hot efficiency of 70%. The successful design of Konjak Chip Tray Dryer makes the Konjak Chip Drying Machine catch up the advanced level both at home and abroad.
the Hot Air Tray Dryer can use to dry the Konjak Chip , so it also named Konjak Chip Hot Air Tray Dryer, Konjak Hot Air Tray Dryer, Konjak Chip Dryer , and the features is low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.
Feature
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130˚C, Max.140˚C.
3. Machine use the automatic control system and computer control system
4. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)
5. For CT-C-O, electric heated, rated power consumption:9kW, real consumption : 3-5kW/h.
6. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.
7. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and can be exchanged each other.
8. Baking tray also drill hole if client have detail requirement.
9. Erbang Drying can design and manufacture the explosion proof hot air oven to dry the Flammable and explosive materials.
10.Erbang can design the hot air oven that set working time and delaying turn off fan so that reduce the heater hot energy gather inside the hot air chest.
11. Machine materials : AISISUS304 , AISISUS316L, and other material .
Parameter:
| Industry standard | Specification standard | Drying weight per batch (Kg) | Power (Kw) | Steam consumption (Kg/h) | Evaporation area (m2) | Air capacity (m3 /h) | Temperature error | Baking plate | Overall dimension (LxWxH) mm | Baking cart (set) |
| RXH-7-D | CT-C-O | 60 | 0.75 | 12 | 7.1 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 |
| RXH-14-D | CT-C-I | 120 | 0.75 | 18 | 14.1 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 |
| RXH-27-D | CT-C-II | 240 | 0.75x2 | 36 | 28.3 | 6900 | ±2 | 96 | 3300×2200×2000 | 4 |
| RXH-41-D | CT-C-III | 360 | 0.75x3 | 60 | 42.4 | 10350 | ±2 | 144 | 3550×2200×2000 | 6 |
| RXH-54-D | CT-C-IV | 480 | 0.75x4 | 80 | 56.5 | 13800 | ±2 | 192 | 4460×1000×2290 | 8 |
|
Mark |
It also design and manufacture base customer require. Welcome to contact us! | |||||||||
