Hot Air Tray Type Oven

1. Steel Tray Drying Oven ,Erbang can design the hot air oven that set working time and delaying turn off fan so that reduce the heater hot energy gather inside the hot air chest.

2. Tray Model Drying Oven approved CE certificate

3. Tray Kinds Drying Oven made by all stainless steel

CT-C series Tray Kinds Drying Oven is equipped with low noise axial flow fan and automatic temperature control system.

The circle system is fully sealed, making the hot efficiency increased from 3-7% of traditional oven to 35-45%, even up to the maximum hot efficiency of 70%. The successful design of CT-C series Pharmaceutical Tray Dryers makes the Pharmaceutical Tray Drier catch up the advanced level both at home and abroad.

Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And Pharmaceutical Tray Drying Equipment can use dried raw material and heat source, involving steam, hot water, electricity or far infrared. This machine features low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.

Feature

1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2. Drying temperature: steam heating 50-130˚C, Max.140˚C.

3. Machine use the automatic control system and computer control system

4. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)

5. For CT-C-O, electric heated, rated power consumption:9kW, real consumption : 3-5kW/h.

6. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.

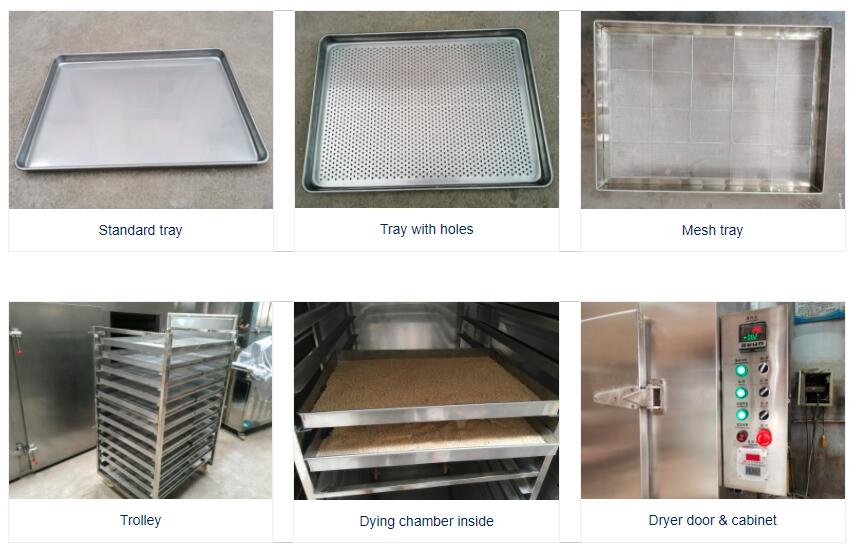

7. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and can be exchanged each other.

8. Baking tray also drill hole if client have detail requirement.

9. Erbang Drying can design and manufacture the explosion proof hot air oven to dry the Flammable and explosive materials.

10. Erbang Drying can design the hot air oven that set working time and delaying turn off fan so that reduce the heater hot energy gather inside the hot air chest.

11. Machine materials : AISISUS304 , AISISUS316L, and other material .

12. For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.

13. Smooth running, reliable performance, easy operation.

14. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.

15. Control system has more choices, such as push button , HMI+PLC and so on.

Advantage
1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.

2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.

3. The whole machine is low in the noise. The operation is in balance.

4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.

5. The machine can be used for drying various materials.

Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Optional Choices
1. For the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or others.
2. For the material for the machine , we have choices on AISISUS304 , AISISUS316L,carbon steel and so on .
3. For the control system , we have choices on push button, PLC+HMI and so on .
4. For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions ,such as steam ,electricity.

5. If without heating system , it can as a cooler to make particle with cooling air.

Main Parameter:

Industry standard	Specification standard	Drying weight per batch (Kg)	Power (Kw)	Steam consumption (Kg/h)	Evaporation area (m2)	Air capacity (m3 /h)	Temperature error	Baking plate	Overall dimension (LxWxH) mm	Baking cart (set)
RXH-7-D	CT-C-O	60	0.75	12	7.1	3450	±2	24	1400×1200×2000	1
RXH-14-D	CT-C-I	120	0.75	18	14.1	3450	±2	48	2300×1200×2000	2
RXH-27-D	CT-C-II	240	0.75x2	36	28.3	6900	±2	96	3300×2200×2000	4
RXH-41-D	CT-C-III	360	0.75x3	60	42.4	10350	±2	144	3550×2200×2000	6
RXH-54-D	CT-C-IV	480	0.75x4	80	56.5	13800	±2	192	4460×1000×2290	8
Mark	It also design and manufacture base customer require. Welcome to contact us!
