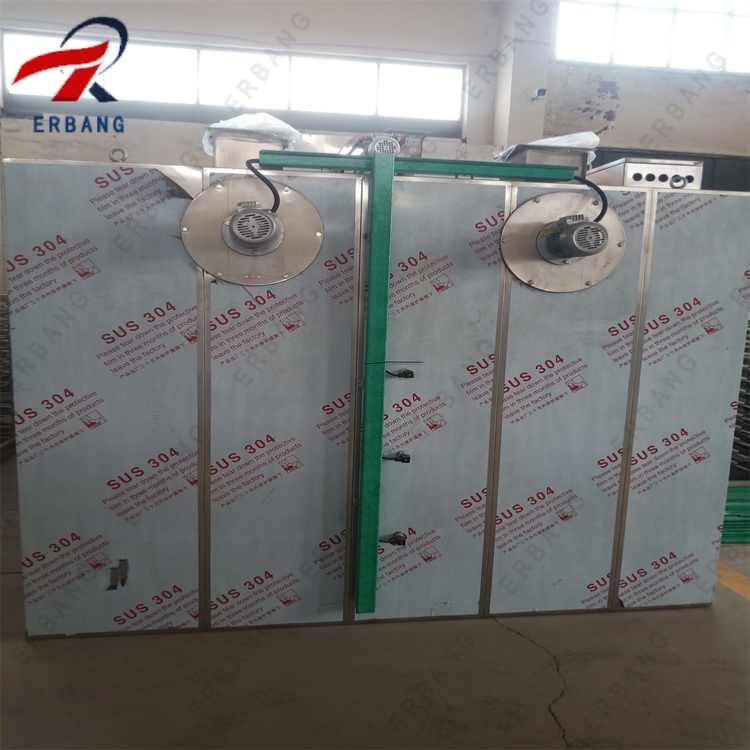

Vegetable Hot Air Circulating Oven

Product Features:

1. Vegetable Hot Air Oven have highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.

2. Carrot Slice Drying Oven have control system has more choices, such as push button , HMI+PLC and so on.

Advantage
1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.

2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.

The circle system is fully sealed, making the hot efficiency increased from 3-7% of traditional oven to 35-45%, even up to the maximum hot efficiency of 70%. The successful design of Hot Air Circulation Oven makes the Carrot Slice Drying Oven catch up the advanced level both at home and abroad.

Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And Pumpkin Slice Drying Oven can use dried raw material and heat source, involving steam, hot water, electricity or far infrared.

Vegetable Hot Air Circulating Oven features is low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.

Industry standard	Specification standard	Drying weight per batch (Kg)	Power (Kw)	Steam consumption (Kg/h)	Evaporation area (m2)	Air capacity (m3 /h)	Temperature error	Baking plate	Overall dimension (LxWxH) mm	Baking cart (set)
RXH-7-D	CT-C-O	60	0.75	12	7.1	3450	±2	24	1400×1200×2000	1
RXH-14-D	CT-C-I	120	0.75	18	14.1	3450	±2	48	2300×1200×2000	2
RXH-27-D	CT-C-II	240	0.75x2	36	28.3	6900	±2	96	3300×2200×2000	4
RXH-41-D	CT-C-III	360	0.75x3	60	42.4	10350	±2	144	3550×2200×2000	6
RXH-54-D	CT-C-IV	480	0.75x4	80	56.5	13800	±2	192	4460×1000×2290	8
Mark	It also design and manufacture base customer require. Welcome to contact us!

Quality control

In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.

In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.

OUR SERVICES
Pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
Sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
After-sale service
We provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
Quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.

Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
