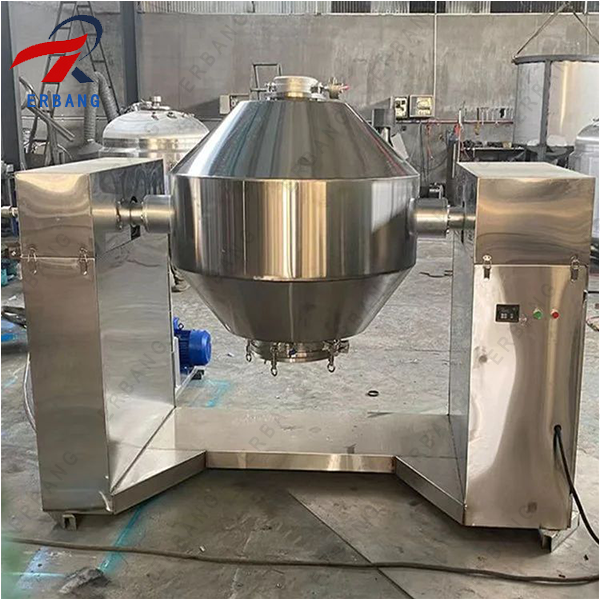

New Condition Rotating Vacuum Drier
Product Principle
As for working medium, Rotating Vacuum Drier may be thermal oil or steam or hot water. For drying the adhesive raw material by the Rotation Vacuum Dryer Machine, we have designed specially a stirring plate buffer for you. The biggest of Rotating Vacuum Drying Machine may be 8000L. Let heat source (for example, low pressure steam or thermal oil or hot water) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell; Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
Main Features
1.When oil is used to heat, use automatic constant temperature control. Its temperature of operation can be adjusted form 20-160℃ .
2. Compared to other dryer, its heat efficiency will be 2 times higher.The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
3.New Condition Rotating Vacuum Drier made by all stainless steel.
4. The feeding system for this machine can be by manual or screw feeder .
5. For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.
6. Smooth running, reliable performance, easy operation.
7. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.
8. Control system has more choices, such as push button , HMI+PLC.
Rotating Vacuum Drier Application
This Vacuum Dryer can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc.
Main technical parameter:
The main technical datum of the vacuum drying equipment is for reference. We also produce and design product according to customers' requirement.
| Type of the vacuum dryer | SZG-0.1 | SZG-0.3 | SZG-0.5 | SZG-1 | SZG-2 | SZG-3 | SZG-4 | SZG-5 |
| Volume(L) | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Material feed factor | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Max material feed weight(kg) | 50 | 120 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
| Vacuum of the drying machine | Dg50 | Dg50 | Dg50 | Dg50 | Dg70 | Dg100 | Dg100 | Dg100 |
| Condensed water in the machine | G3/4" | G3/4" | G3/4 | G1" | G1" | G1" | G1 1/2" | G1 1/2" |
| Motor power(kw) for drying | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Total weight(kg) | 650 | 1200 | 1450 | 2800 | 3580 | 5950 | 6450 | 7300 |
