Changzhou ErBang Drying Equipment Co., Ltd.

 10 year year

Product details

Pesticide Intermediate Vacuum Drying Machine

Pesticide Intermediate Vacuum Drying Machine Features:

1. Pesticide Intermediate Vacuum Drying Machine is mainly suitable for the following materials to be dried in pharmaceutical, foodstuff and others industries.

Pesticide Intermediate Dryer:Let heat source (for example, low pressure steam or thermal oil or hot water) pass through the sealed jacket. The heat of Pesticide Intermediate Vacuum Dryer will be transmitted to raw material to be dried through inner shell; Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.the vacuum dryers can use vacuum pressure to suck the materials into drying tank.

Pesticide Intermediate Vacuum Dryer Application
This Vacuum Dryer can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc.

Main Parameter:
The main technical datum of the vacuum drying equipment is for reference. We also produce and design product as per customers' requirement.

Type of the vacuum dryer	SZG-0.1	SZG-0.3	SZG-0.5	SZG-1	SZG-2	SZG-3	SZG-4	SZG-5
Volume(L)	100	300	500	1000	2000	3000	4000	5000
Material feed factor	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Max material feed weight(kg)	50	120	200	400	800	1200	1600	2000
Vacuum of the drying machine	Dg50	Dg50	Dg50	Dg50	Dg70	Dg100	Dg100	Dg100
Condensed water in the machine	G3/4"	G3/4"	G3/4	G1"	G1"	G1"	G1 1/2"	G1 1/2"
Motor power(kw) for drying	1.1	1.5	2.2	3	5.5	7.5	11	15
Total weight(kg)	650	1200	1450	2800	3580	5950	6450	7300

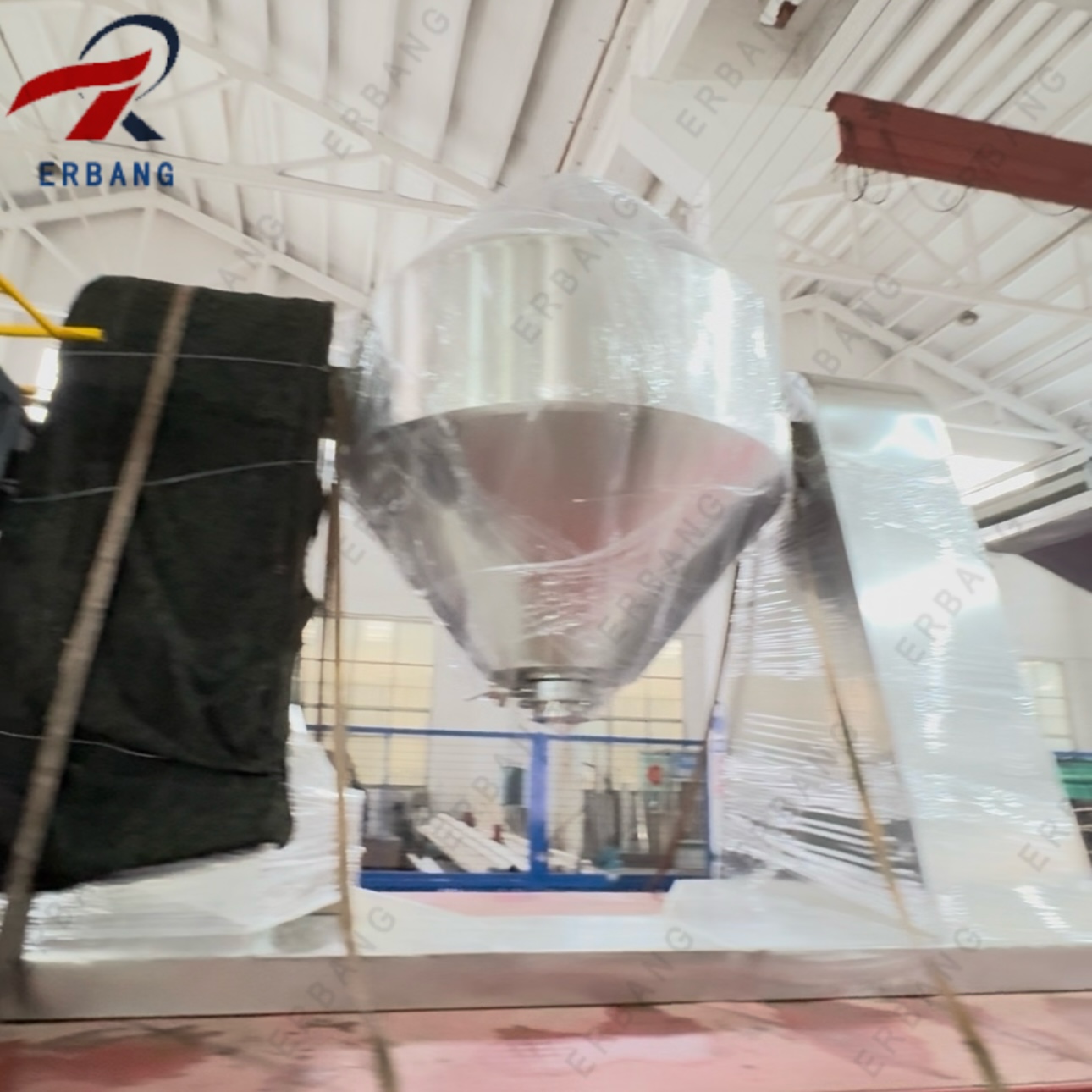

SZG Series Double TaperedVacuum Drier (1)

Quality control

In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.

In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.

OUR SERVICES
Pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
Sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
After-sale service
We provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline.

Quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality. Equipment operation safe reliable, affordable, easy to maintain.

Equipment warranty period is one year, all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
