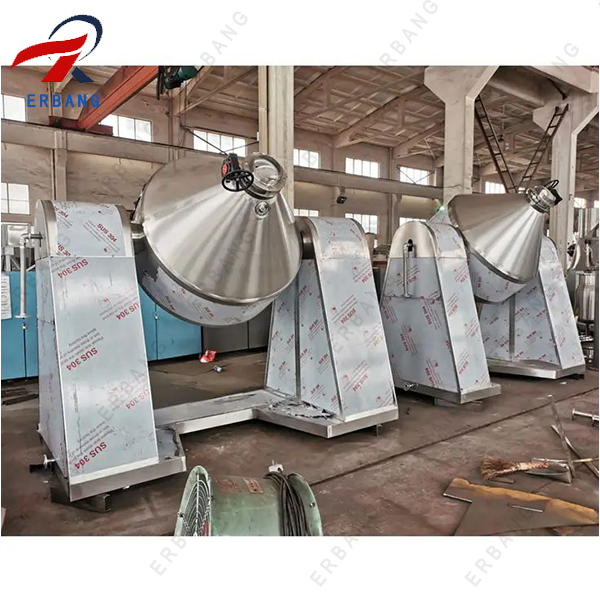

Enamel Vacuum Double Cone Dryer
Enamel Vacuum Double Cone Dryer Application
The machine (Enamel Vacuum Dryer,Enamel Vacuum Drying Machine,Enamel Vacuum Double Cone Dryer) is suitable for vacuum mixing and drying of power and granule raw materials of pharmaceutical industry, chemical industry, foodstuff industry etc. Particularly it is suitable for row materials that have the follow requirements:
1.Themal sensitive raw materials that cannot be dried at high temperature.
2.Raw materials that is easy to oxidize and dangerous.
Main Features
1. Enamel Vacuum Double Cone Dryer is mainly suitable for the following materials to be dried in pharmaceutical, foodstuff and others industries.
2. The container of the Enamel Vacuum Dryer rotates continuously so as to renew surfaces of heating materials.
3. Enamel Vacuum Drier adopts Indirect heating approach and unpolluted material.
4. Rotary Vacuum Dryer will be increased by over two times in heat efficiency compared with the general one.
5. Low temperature, Rapid drying and Mixed powder.
6. The material in the Vacuum Dryer is heated by steam or hot water.
The main technical datum of the vacuum drying equipment is for reference. We also produce and design product as per customers' requirement.
| Type of the vacuum dryer | SZG-0.1 | SZG-0.3 | SZG-0.5 | SZG-1 | SZG-2 | SZG-3 | SZG-4 | SZG-5 |
| Volume(L) | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Material feed factor | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Max material feed weight(kg) | 50 | 120 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
| Vacuum of the drying machine | Dg50 | Dg50 | Dg50 | Dg50 | Dg70 | Dg100 | Dg100 | Dg100 |
| Condensed water in the machine | G3/4" | G3/4" | G3/4 | G1" | G1" | G1" | G1 1/2" | G1 1/2" |
| Motor power(kw) for drying | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Total weight(kg) | 650 | 1200 | 1450 | 2800 | 3580 | 5950 | 6450 | 7300 |
If you are interested in the product, contact 2bvideo.com for more information for more information
