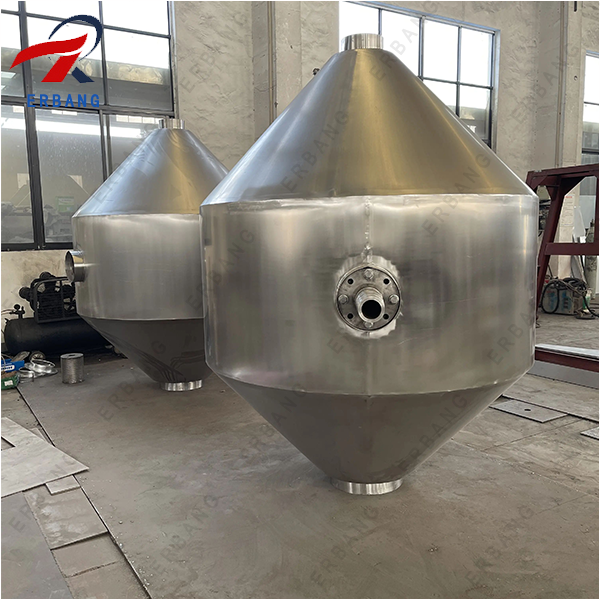

Organic Solvent Drug Vacuum Dryer
Product Application
This Organic Solvent Drug Dryer can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc.
1.Organic Solvent Drug Vacuum Dryer,Themal sensitive raw materials that cannot be dried at high temperature.
2.Organic Solvent Drug Vacuum Drier,Raw materials that is easy to oxidize and dangerous.
3.Organic Solvent Drug Vacuum Drier,Raw materials that solvent and toxic gases are needed to recover.
4.Raw materials that have special requirement for crystal shape.
5. Raw materials that have special requirement for the content of residual colatile.
Product Description
Erbang professional design and manufacture the Organic Solvent Drug Vacuum Dryer .Hot medium is inlet jacket for drying, Heat exchange id done by the inner wall contacts with damp material. After the material absorbs heat, water is evaporated. The evaporated moisture and other gas is exhausted from vacuum exhaust pipe by vacuum pump. In the tank it is vacuum state and the rotary of tank makes the material overturn continuously, so the drying speed is fast and drying intensity is increased, and can achieve the purpose of uniform drying. It is a new style dryer that combines mixing and drying together. It can be used together with condenser and vacuum pump(If don`t need recover solvent, condenser is not needed).
The design is advanced, inner structure is simple and easy to clean. Material can be discharged completely and operation is simple. It can reduce the labor intensity, and improve working environment. Material will rotate with the rotary of tank, but there is no material stick on the inner wall, so coefficient of heat transfer is high, drying efficiency is high. It can not only save energy but also can dry material uniformly. It is widely used for drying in pharmaceutical, chemical, foodstuff, dyestuff industry and so on.
Parameter:
The main technical datum of the vacuum drying equipment is for reference. We also produce and design product as per customers' requirement.
| Type of the vacuum dryer | SZG-0.1 | SZG-0.3 | SZG-0.5 | SZG-1 | SZG-2 | SZG-3 | SZG-4 | SZG-5 |
| Volume(L) | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Material feed factor | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Max material feed weight(kg) | 50 | 120 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
| Vacuum of the drying machine | Dg50 | Dg50 | Dg50 | Dg50 | Dg70 | Dg100 | Dg100 | Dg100 |
| Condensed water in the machine | G3/4" | G3/4" | G3/4 | G1" | G1" | G1" | G1 1/2" | G1 1/2" |
| Motor power(kw) for drying | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Total weight(kg) | 650 | 1200 | 1450 | 2800 | 3580 | 5950 | 6450 | 7300 |
