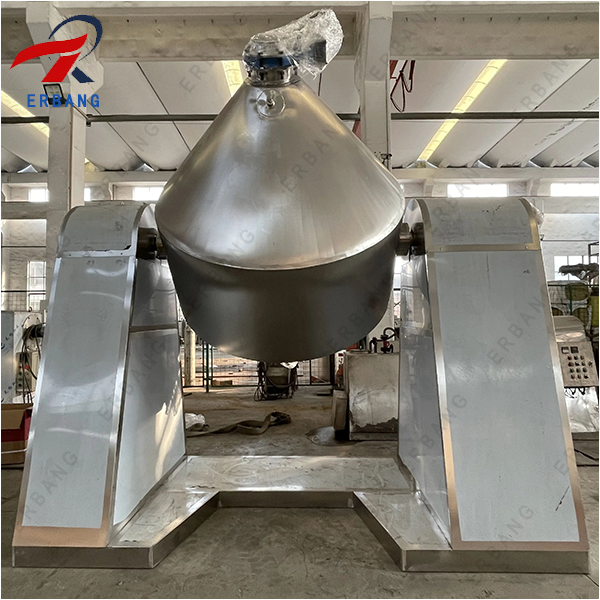

Vacuum Rotary Dryer
Vacuum Rotary Dryer Features
1. Arginine Vacuum Dryer is diaphragm type vacuum meter to show the vacuum degree in the tank, it can avoid the phenomenon of false vacuum.
2. The container of the Arginine Powder Dryer rotates continuously so as to renew surfaces of heating materials.
3. Arginine Vacuum Dryer adopts Indirect heating approach and unpolluted material.
4. High Efficiency Rotary Dryer will be increased by over two times in heat efficiency compared with the general one.
The design is advanced, inner structure is simple and easy to clean. Material can be discharged completely and operation is simple. It can reduce the labor intensity, and improve working environment. Material will rotate with the rotary of tank, but there is no material stick on the inner wall, so coefficient of heat transfer is high, drying efficiency is high. It can not only save energy but also can dry material uniformly. It is widely used for drying in pharmaceutical, chemical, foodstuff, dyestuff industry and so on.
Vacuum Rotary Dryer Application
This High Efficiency Rotary Dryer can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc.
The main technical datum of the vacuum drying equipment is for reference. We also produce and design product as per customers' requirement.
| Type of the vacuum dryer | SZG-0.1 | SZG-0.3 | SZG-0.5 | SZG-1 | SZG-2 | SZG-3 | SZG-4 | SZG-5 |
| Volume(L) | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Material feed factor | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Max material feed weight(kg) | 50 | 120 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
| Vacuum of the drying machine | Dg50 | Dg50 | Dg50 | Dg50 | Dg70 | Dg100 | Dg100 | Dg100 |
| Condensed water in the machine | G3/4" | G3/4" | G3/4 | G1" | G1" | G1" | G1 1/2" | G1 1/2" |
| Motor power(kw) for drying | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Total weight(kg) | 650 | 1200 | 1450 | 2800 | 3580 | 5950 | 6450 | 7300 |
