XF系列箱式流化床干燥机

简介：

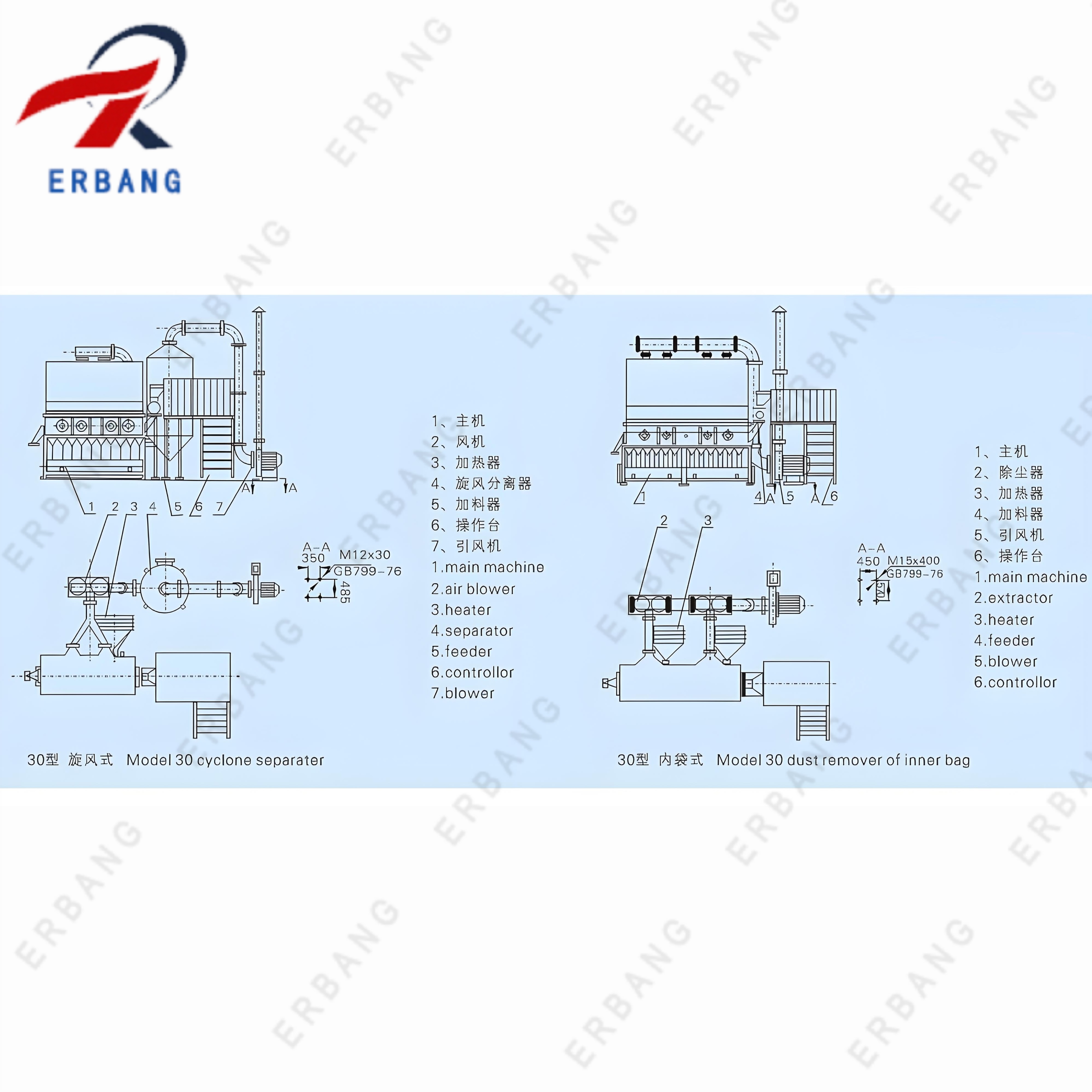

XF系列箱式流化床干燥机又称箱式流化床干燥机由空气过滤器、加热器、流化床主机、加料器、旋风分离器、布袋除尘器（选配）、高压离心风机及风管、控制箱等组成。由于原料的性质存在差异，在配备除尘设备时应考虑实际需要。可同时选用旋风分离器和布袋除尘器或其中之一。一般情况下，仅对比重较大的原料选用旋风分离器，对比重轻的粉状、小颗粒原料选用布袋除尘器。同时配有送风装置（送风机）和皮带。输送机供选择。原料通过加料器进入流化床干燥机。经过滤和加热的新鲜空气由风机送至流化床底部，与分布板上的固体原料接触。这样就形成流化状态，进行空气与固体的热交换。干燥后的原料由出口排出，废气由流化床顶部排出，经旋风分离器、布袋除尘器捕集固体粉末。加热方式有多种选择，可采用蒸汽、电或热风炉（可根据客户要求提供）。干燥后的原料由出口排出，废气由流化床顶部排出，经旋风分离器、布袋除尘器捕集固体粉末。加热方式有多种选择，可采用蒸汽、电或热风炉（可根据客户要求提供）。干燥后的原料由出口排出，废气由流化床顶部排出，经旋风分离器、布袋除尘器捕集固体粉末。加热方式有多种选择，可采用蒸汽、电或热风炉（可根据客户要求提供）。

柠檬酸流化床干燥机 应用：

流化床干燥机 也称流化床。经过30多年的不断改进，流态化干燥机已广泛应用于制药、化工、食品、粮食加工等领域。如原料药、颗粒成药、制剂、饲料等粉状、颗粒状物料的除湿、干燥。、塑料树脂等。颗粒直径应在0.1～6mm范围内，最好在0.5～3mm范围内。

原则：

洁净的热空气通过阀板分配器进入流化床。来自加料器的湿物料通过热空气形成流体状态。由于热风与物料广泛接触，强化了传热过程，因此能在很短的时间内干燥产品。

若采用连续式，物料从床层前部进入，在床层内流化几分钟，从床层后部排出。该机在负压状态下工作。

卧式流化床干燥机 特点：

1. 全不锈钢卧式流化床干燥机

2、卧式流化床干燥机 为柠檬酸卧式流化床干燥机

3、卧式流化床干燥机 是 柠檬酸干燥机械

流态化干燥机主要技术参数资料仅供参考。我们还根据客户的要求生产和设计产品。

类型	处理能力(水kg/h)	尺寸（毫米）	风机功率(kw)	入口温度 (°C)	物料温度（℃）	蒸汽(公斤/小时)	电（千瓦）
XF-20	20-25日	2600X800X2800	7.5	60-140	40-80	100	60
XF-30	30-45	2600X1000X2800	15	60-140	40-80	200	120
XF-50	50-80	5000X1200X3300	22	60-140	40-80	400	240
XF-80	120-150	6000X1200X3600	45	60-140	40-80	600	360
XF-150	160-200	6000X1200X4200	55	60-140	40-80	800	第480章

质量控制

In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.

In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.

OUR SERVICES
Pre-sale service
We invite customers to visit our company and communicate on technical requirements face to face. we also can do test in our lab for free. and then we will use the testing parameter to design final machine to reach client requirement.
Sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.

After-sale service
We provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials.

Quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality. Equipment operation safe reliable, affordable, easy to maintain.

Equipment warranty period is one year, all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
