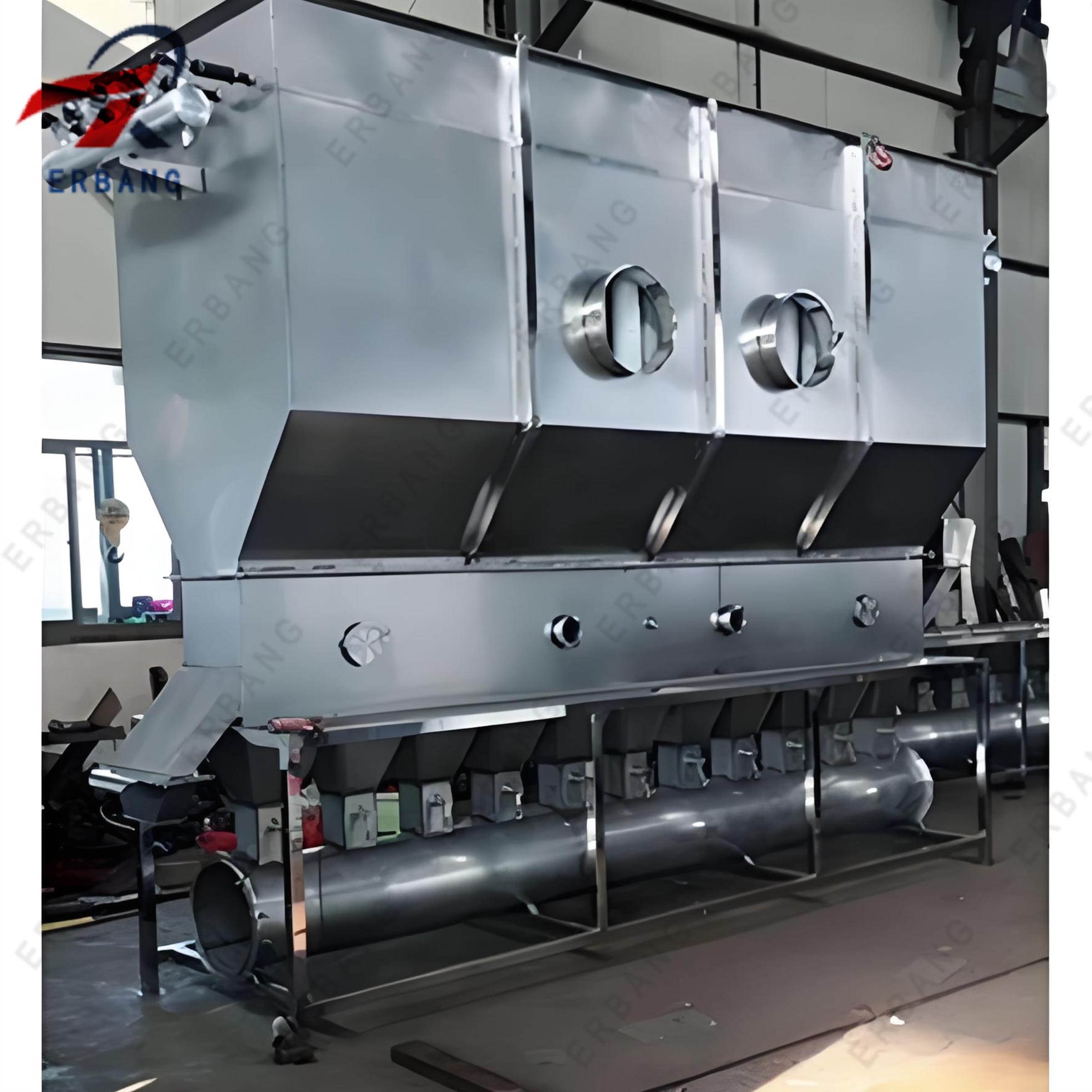

Fluid Bed Dryer for Feed
Features:
1.Feed Drier Machine have highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination.
2.Feed Drier Equipment have high collecting rate, high efficiency, fast drying, energy saving.
3.Fluid Bed Drier Equipment have not stick onto the wall.
4.Smooth running, reliable performance, easy operation.
5.When oil is used to heat, use automatic constant temperature control. Its temperature of operation can be adjusted form 50-160℃.
6.Fluid Bed Dryer for Feed made by all stainless steel.
Feed Fluid Bed Dryer Principle
The clean and hot air enters into fluid bed through distributor of valve plate. The wet material from the feeder is formed in the fluid state by hot air. Because the hot air contact with the material widely and strengthen the process of heat transferring , it can dry the product within a very short time .
If using continuous type, the material enters from the front of bed, fluidized in bed for several minutes, and discharged from the back of the bed . The machine works under the state of the negative pressure.
Feed Drying Machine Application
Feed Drying Equipment is also called fluidization bed. Through continuously improvement over 30 years, fluidizing dryer has widely applied in the fields of pharmaceutics, chemicals, foodstuff, processing grain etc. For example, the dehumidification and drying of powder and granular materials such as bulk pharmaceuticals, granular patent medicines, preparations, feed, plastic resin etc. The granular diameter shall be within the range from 0.1 to 6mm and the best from 0.5 to 3mm.
Main Technical Parameter:
The main technical parameter datum of fluidizing dryer is for reference. We also produce and design product as per customers' requirement.
| Type | Capacity(water kg/h) | Dimensions(mm) | fan power(kw) | Inlet temp (ºC) | material temp (ºC) | steam(kg/h) | electrical(kw) |
| XF-20 | 20-25 | 2600X800X2800 | 7.5 | 60-140 | 40-80 | 100 | 60 |
| XF-30 | 30-45 | 2600X1000X2800 | 15 | 60-140 | 40-80 | 200 | 120 |
| XF-50 | 50-80 | 5000X1200X3300 | 22 | 60-140 | 40-80 | 400 | 240 |
| XF-80 | 120-150 | 6000X1200X3600 | 45 | 60-140 | 40-80 | 600 | 360 |
| XF-150 | 160-200 | 6000X1200X4200 | 55 | 60-140 | 40-80 | 800 | 480 |
About Us:
From dryer machine, mixing machine to granulation machine, from unit machine to production line, we have them all. Erbang Drying is a professional manufacturer of industrial dryer, powder mixer and granulation machine. Our flagship products include the drying oven, fluid bed dryer, belt dryer, vacuum dryer machine, rotary flash dryer, chamber drying machine, single dimensional powder blender, three dimensional mixer, two dimensional mixer and high shear granulation machine, continuous granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying, mixing and granulation solutions. Erbang Drying constant faith is providing perfect products to customer, excellenting service to client !
Quality control
In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.
In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.
OUR SERVICES
Pre-sale service
We invite customers to visit our company and communicate on technical requirements face to face. we also can do test in our lab for free. and then we will use the testing parameter to design final machine to reach client requirement.
Sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
After-sale service
We provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials.
Quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality. Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year, all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
