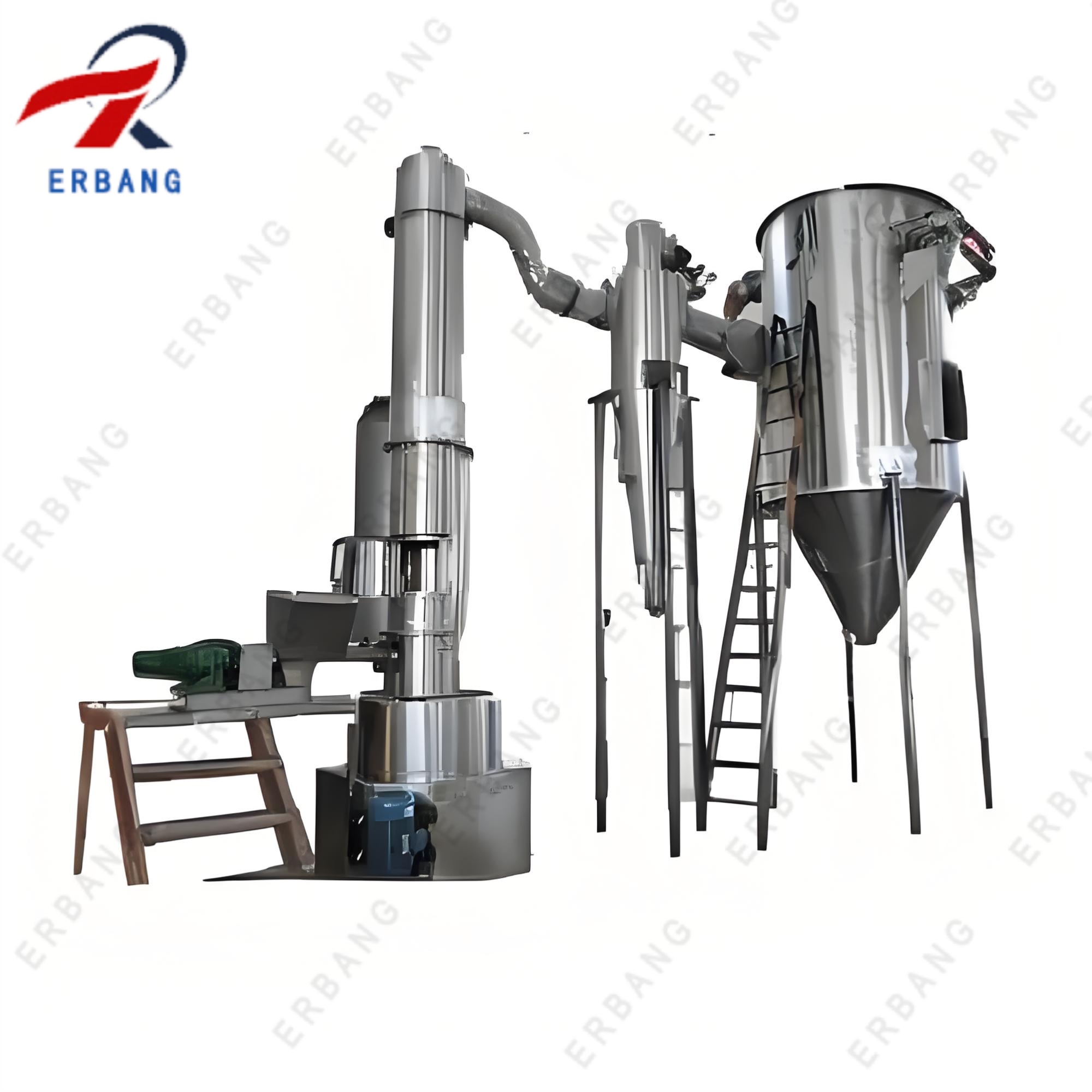

Borax Continuous Flash Drying Machine
Borax Drying Machine Features:
☆ Borax Drying Machine is special chemical dryer equipment
☆ Borax Dryer Machine is big capacity drying machine
☆ Borax Drying Machinery is making up pasty filter cake directly into dry powder
Borax Drying Line Principle
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed. The paste state materials enter into the drier through the screw charger. The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the de-watering will go up with the heat-air flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.
Borax Flash Drying Machine Description
This machine combines the whirl technology with the fluidity. Ejection and smashing step technologies. The equipment is compact and small in size, high in production efficiency and continuous in the production. It has realized that a small equipment can perform the large production. The drying capacity for this machine is big but its energy consumption is low. Its hear efficiency can go up to more than 70%. The material star time is very short. The quality of the final products is very good, The machine can be used for drying the heat sensitive materials. For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental Pollution.
Erbang Drying constant faith is providing perfect products to customer , excellenting service to customer ! Please do not hesitate to contact underigned.
Feeding system
For the feeding system , normally , Erbang choose double screw feeder .Double Shaft with Specially Designed Blades for lumps break as to ensure the raw material into the drying chamber smoothly . And drive Through motor & Gear Box.
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporation quantity(kg/h) | space area(m2) |
| SXG-2 | 200 | 300*2800 | 0.75-2.2 | 350-560 | 10-20 | 12 |
| SXG-4 | 400 | 500*3000 | 4-5.5 | 1350-2500 | 30-70 | 20 |
| SXG-6 | 600 | 700*3500 | 11-15 | 3050-5000 | 70-150 | 28 |
| SXG-8 | 800 | 900*4000 | 18.5-22 | 5400-9000 | 100-200 | 32 |
| SXG-10 | 1000 | 1100*4500 | 30-45 | 8500-14100 | 150-300 | 35 |
| SXG-12 | 1200 | 1300*5000 | 45-55 | 12200-2000 | 200-500 | 40 |
| SXG-14 | 1400 | 1500*5500 | 55-75 | 17000-27000 | 250-700 | 45 |
| SXG-16 | 1600 | 1700*6000 | 75-115 | 21700-36000 | 300-900 | 52 |
