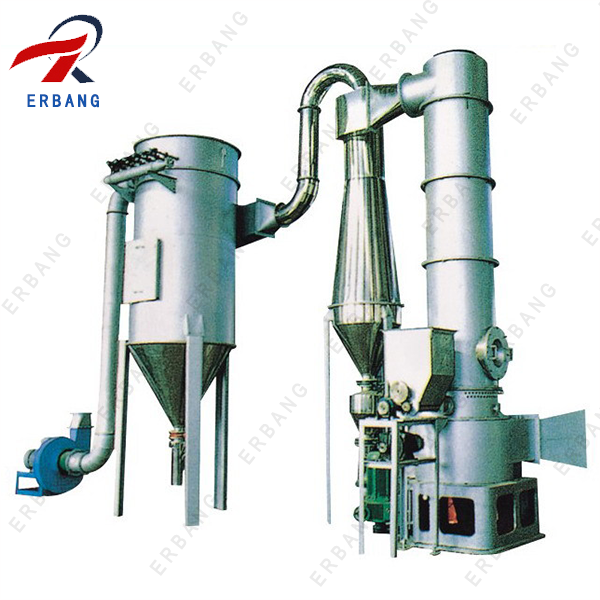

Stainless Steel Paste Drying Machine
Stainless Steel Paste Drying Machine Features:
1.Paste Drying Machine: The collection rate of finished product is very high.
To adopt cyclone separator with high efficiency and low resistance (the collection rate can be above 98%), together with air chamber type of pulse cloth bag duster(the collection rate can be above 99.9%)
2.Slurry Drying Machine: To control final water content and fine of finished product efficiently
To control final water content and fine of finished product through adjusting screener and inlet air speed.
2. Paste Dryer Machine Working Principle:
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed. The paste state materials enter into the drier through the screw charger. The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the de-watering will go up with the heat-air flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.
3. Paste Drying Machine Description:
This machine combines the whirl technology with the fluidity. Ejection and smashing step technologies. The equipment is compact and small in size, high in production efficiency and continuous in the production. It has realized that a small equipment can perform the large production. The drying capacity for this machine is big but its energy consumption is low. Its hear efficiency can go up to more than 70%. The material star time is very short. The quality of the final products is very good, The machine can be used for drying the heat sensitive materials. For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental Pollution.
Erbang Drying
Erbang are medicine, food and chemical machinery manufacturer that from china, we are professional design and manufacture the drying machine, mixing machine, and granulator machine, grinding machine and so on that start from 2009. We approved the CE, ISO, GMP.
Erbang ensures you to the best quality services at all times. Shall you need any further information, please do not hesitate to contact undersigned.
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporation quantity(kg/h) | space area(m2) |
| SXG-2 | 200 | 300*2800 | 0.75-2.2 | 350-560 | 10-20 | 12 |
| SXG-4 | 400 | 500*3000 | 4-5.5 | 1350-2500 | 30-70 | 20 |
| SXG-6 | 600 | 700*3500 | 11-15 | 3050-5000 | 70-150 | 28 |
| SXG-8 | 800 | 900*4000 | 18.5-22 | 5400-9000 | 100-200 | 32 |
| SXG-10 | 1000 | 1100*4500 | 30-45 | 8500-14100 | 150-300 | 35 |
| SXG-12 | 1200 | 1300*5000 | 45-55 | 12200-2000 | 200-500 | 40 |
| SXG-14 | 1400 | 1500*5500 | 55-75 | 17000-27000 | 250-700 | 45 |
| SXG-16 | 1600 | 1700*6000 | 75-115 | 21700-36000 | 300-900 | 52 |
