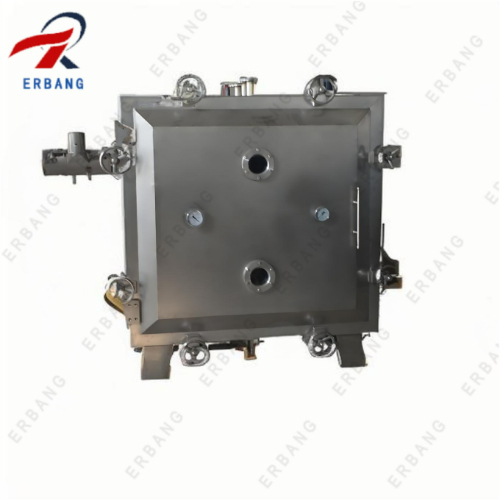

Vacuum Shelf Dryer Principle

Vacuum Shelf Dryer Machine is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. The Vacuum Shelf Drying Machine is a kind of tray model vacuum dryer worked by batch .the Vacuum Shelf Drier mainly consists of the chest , heating pipe ,tray and vacuum system(if the solvent needs recovery , it should equip with the condenser device ). The wet material will load on the tray and put inside tray chest . The heat transferring happened between the material and make the moisture from the material is evaporated , and wet air is pumped outside by the vacuum system.

Main Features
1.Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
2.The heat source for evaporation may be steam or hot water
3.Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
4.It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.

5. Lower energy consumption

6.Be clean for drying under the sealed condition.
7.The vaporization speed of liquid will be increased with declination of atmospheric pressure.

8.Madine materials AISSUS304 AISLSUS316L and other material.

Application
Vacuum Shelf Drier is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries．

Product Parameter:

Model	YZG-600	YZG-1000	YZG-1400	FZG-15
Weight of drying chamer(kg)	350	800	1400	2100
Layers of baking shelf	4	6	8	8
Dimensions of baking tray(mm)	310x600x45	460x640x45	460x640x45	460x640x45
Number of baking tray	4	12	32	32
Temp inside chamber(ºC)	≤ 150	≤ 150	≤ 150	≤ 150
Vacuum at idle inside chamber(Mpa)	≥0.092	≥0.092	≥0.092	≥0.092
Type and power of vacuum pump if condersateor used	2X-15A 2KW	W3 5.5KW	W3 5.5KW	2X-70A 5.5KW
Tyoe and power of vacuum pump if no condersator used	SK-0.8 2.2KW	SK-3 7.5KW	SK-3 7.5KW	SK-3 7.5KW

About Us:
From drying machine, mixing machine to granulation machine, from unit machine to production line, we have them all. Erbang Drying is a professional manufacturer of industrial dryer, powder mixing machine and granulator. Our flagship products include the drying oven, fluid bed dryer, belt dryer, vacuum dryer, rotary flash dryer, chamber drying machine, single dimensional mixer, three dimensional mixer, two dimensional mixer and high shear granulator, continuous granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying, mixing and granulation solutions. Erbang Drying constant faith is providing perfect products to customer, excellenting service to customer !

Quality control

In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.

In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.

OUR SERVICES
Pre-sale service
We invite customers to visit our company and communicate on technical requirements face to face. we also can do test in our lab for free. and then we will use the testing parameter to design final machine to reach client requirement.
Sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.

After-sale service
We provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials.

Quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality. Equipment operation safe reliable, affordable, easy to maintain.

Equipment warranty period is one year, all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
