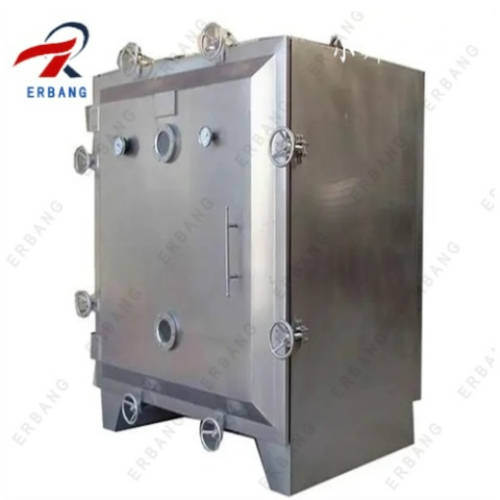

Plant Extracts Low Temperature Drying Machine
About Erbang Drying:
From drying machine, mixing machine to granulation machine, from unit machine to production line, we have them all. Erbang Drying is a professional manufacturer of industrial dryer, powder mixer and granulation machine. Our flagship products include the drying oven, fluid bed dryer, belt dryer, vacuum dryer machine, rotary flash dryer, chamber drying machine, single dimensional powder mixer, three dimensional mixer, two dimensional mixer and high shear granulation machine, continuous granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying, mixing and granulation solutions. Erbang Drying constant faith is providing perfect products to customer, excellenting service to customer !
Plant Extracts Low Temperature Drying Machine Features
1. Plant Extracts Drier is Low-temperature,
2. Plant Extracts Drying Machine is under the condition of vacuum to dry the original material,
3. Plant Extracts Dryers heating method is steam or hot water,
4. Plant Extracts Dryer Machine is lower energy consumption,
5. Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
6.The heat source for evaporation may be low pressure steam or surplus heat steam. but the tray model vacuum dryer also can use hot water or thermal oil to as heat source. If client have not heat source. we can design and supply the electrical heating thermal oil or hot water to supply heat source for the Fzg Vacuum Drying Machine.
7. Under vacuum, boiling point of solvent will be reduced, making the evaporator heat transfer driving force increase. Thus for certain amount of heat transfer, it can help to achiever low heat transfer area consumption.
Plant Extracts Drying Machinery Advantages
* Be clean for drying under the sealed condition.
* The vaporization speed of liquid will be increased with declination of atmospheric pressure.
* Vacuum drying machine equipped with is able to recover solvent of condensation and receiver equipped.
* Be suitable to dry heat- sensitive materials at low temperature.
| Model | YZG-600 | YZG-1000 | YZG-1400 | FZG-15 |
| Weight of drying chamber (kg) | 350 | 800 | 1400 | 2100 |
| Layers of baking shelf | 4 | 6 | 8 | 8 |
| Dimensions of baking tray(mm) | 310x600x45 | 460x640x45 | 460x640x45 | 460x640x45 |
| Number of baking tray | 4 | 12 | 32 | 32 |
| Temp inside chamber(ºC) | ≤ 150 | ≤ 150 | ≤ 150 | ≤ 150 |
| Vacuum at idle inside chamber(Mpa) | ≥0.092 | ≥0.092 | ≥0.092 | ≥0.092 |
| Type and power of vacuum pump if condersateor used | 2X-15A 2KW | W3 5.5KW | W3 5.5KW | 2X-70A 5.5KW |
| Type and power of vacuum pump if no condersator used | SK-0.8 2.2KW | SK-3 7.5KW | SK-3 7.5KW | SK-3 7.5KW |
