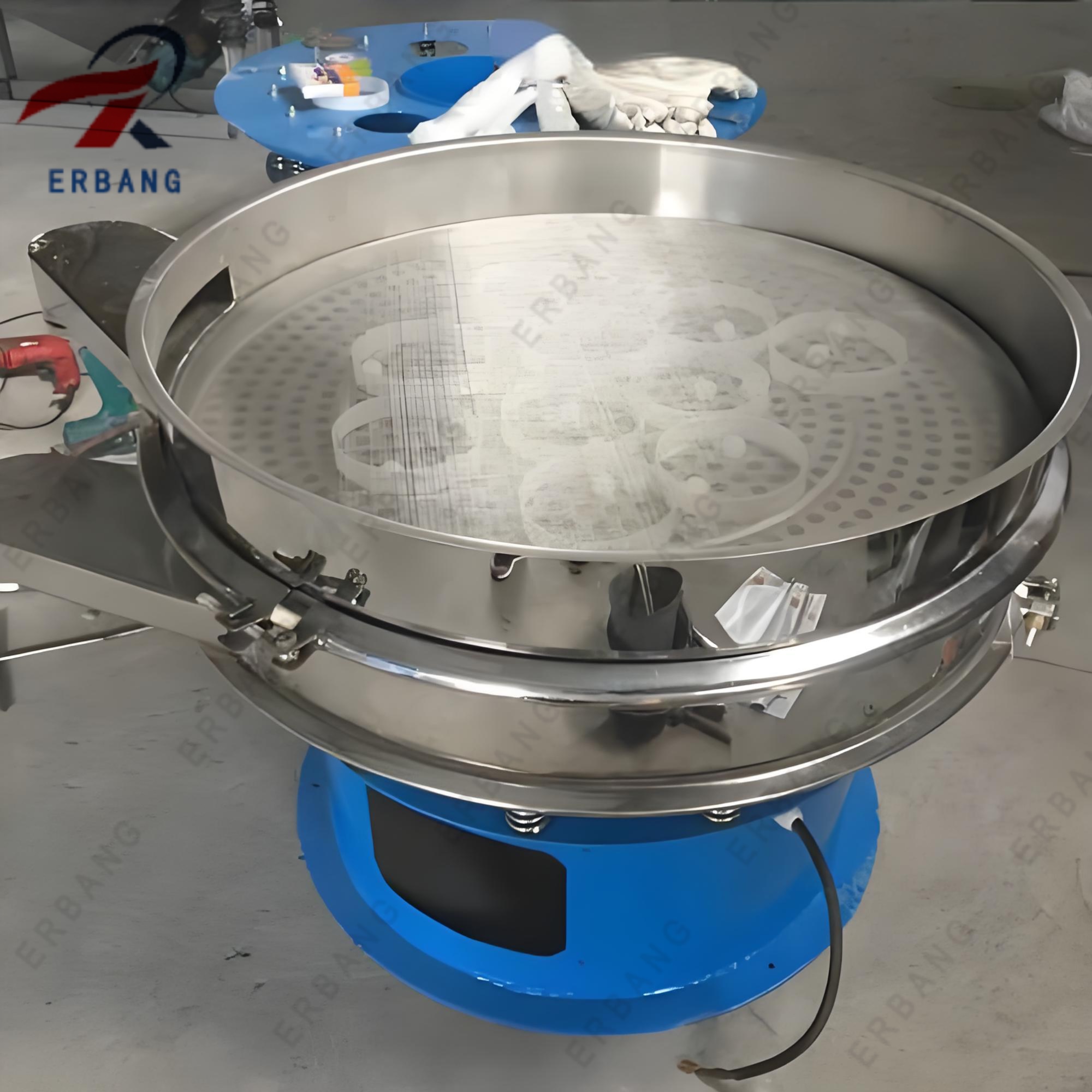

Round Stainless Steel Vibrating Screen for Egg Powder:

Product Features:

1.Greater accuracy of Egg Powder Vibrating Sieve-Full material flow on all mesh screens providing accurate grading and separation.
2.Lower noise-The quality springs between machine base andvibrating body slow down the noise to less than 60 decibels
3.Egg Powder Vibrating Separator have easy of operation and lower maintenance-The design of the vibrator housing on these separators allow for standard motors to be used rather than vibratory type, keeping less maintenance costs.
4. Reduces cleaning downtime of Egg White Powder Sieve – The unit disassembles quickly and easily without the need for tools.All contact parts are fully washable

Vibrating Screen for Egg Powder Principle of the structure:

ZS series Egg Powder Vibrating Sieve use upright motor as the source of vibration equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

Vibrating Screen for Egg Powder Features:

1. High efficiency, refined design, duration, any powders and mucilage are suitable for using.
2. Easily to replace the screen, simple operation and convenience washing.
3. Never jam the hole meshwork, no powder flying, filter size of the powder between 500 mesh and 0.028 mm.
4. Discharge the impurity and coarse materials automobile and operates continuously.
5. Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
6. Small volume, move easily.
7. The highest layers of the screen are about 5 layers. But 3 lagers are suggested.

Model	capacity	Sieve hole	Power (vibration motor)	Power (common motor)	Vibration frequency	Weight
ZS-400	50-300kg/h	3-200mesh	0.18kw	0.55kw	1400r/min	150kg
ZS-600	100-450kg/h	3-200mesh	0.25kw	0.75kw	1400r/min	250kg
ZS-800	300-750kg/h	3-200mesh	0.55kw	1.1kw	1400r/min	320kg
ZS-1000	400-1100kg/h	3-200mesh	1.1kw	1.5kw	1400r/min	400kg
ZS-1200	600-1600kg/h	3-200mesh	1.1kw	1.5kw	1400r/min	500kg
ZS-1500	800-1800kg/h	3-200mesh	1.5kw	2.2kw	1400r/min	600kg
ZS-1800	1000-2000kg/h	3-200mesh	3.0kw	3.0kw	1400r/min	800kg
ZS-2000	1300-2500kg/h	3-200mesh	3.0kw	3.0kw	1400r/min	1000kg

About Us:
From dryer machine, mixing machine to granulation machine, from unit machine to production line, we have them all. Erbang Drying is a professional manufacturer of industrial dryer, powder mixer and granulation machine. Our flagship products include the drying oven, fluid bed dryer, belt dryer, vacuum dryer machine, rotary flash dryer, chamber drying machine, single dimensional powder blender, three dimensional mixer, two dimensional mixer and high shear granulation machine, continuous granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying, mixing and granulation solutions. Erbang Drying constant faith is providing perfect products to customer, excellenting service to client !

Quality control

In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.

In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.
