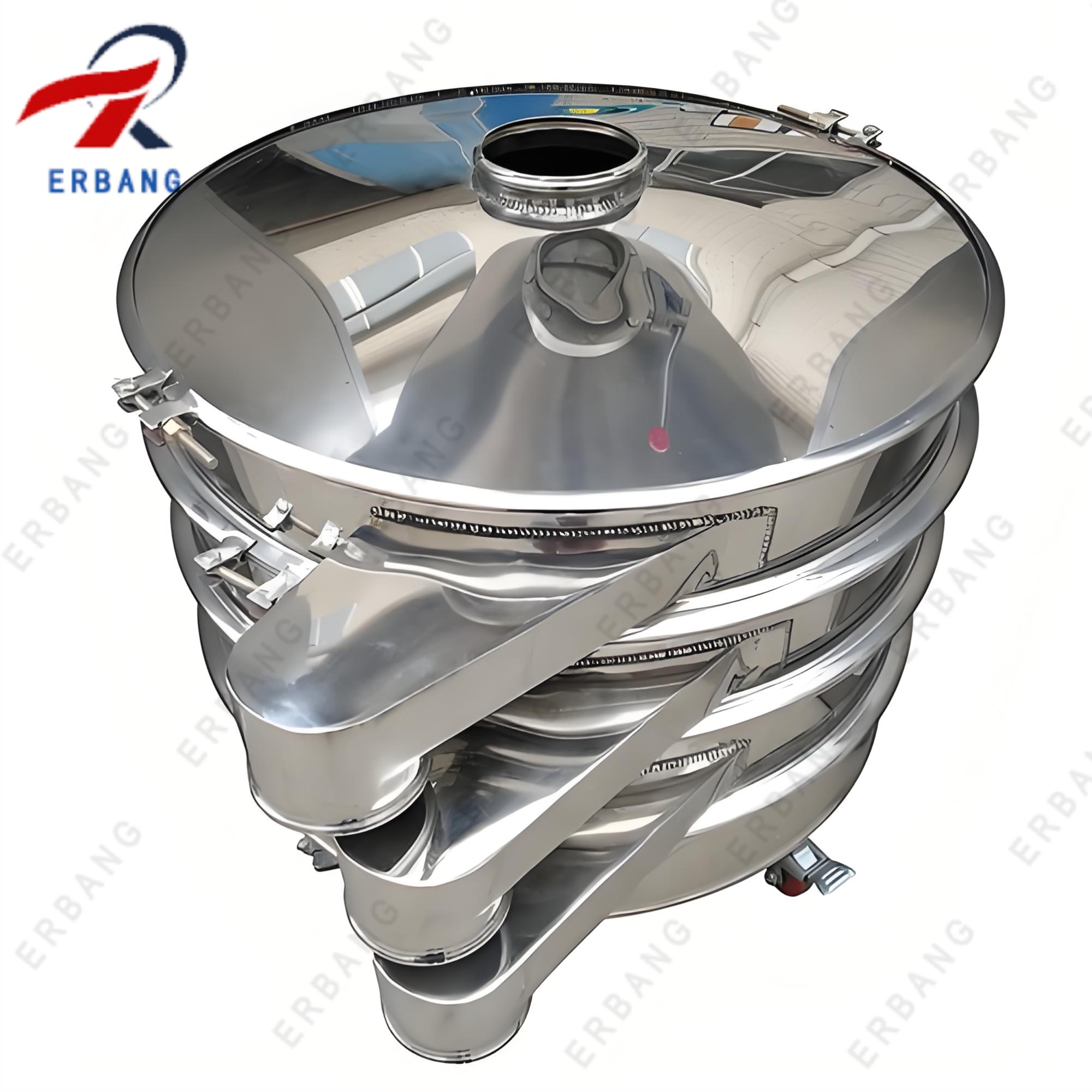

Vibration Sieve for Powder or Granules
Vibration Sieve Equipment Features
1.Greater accuracy-Full material flow on all mesh screens providing accurate grading and separation.
2.Lower noise-The quality springs between machine base andvibrating body slow down the noise to less than 60 decibels
3.Easy of operation and lower maintenance-The design of the vibrator housing on these separators allow for standard motors to be used rather than vibratory type, keeping less maintenance costs.
4. Reduces cleaning downtime – The unit disassembles quickly and easily without the need for tools.All contact parts are fully washable
5. Vibration Sieve have highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
6. Control system of Vibration Screen Machine has more choices, such as push button , HMI+PLC and so on.
7. Machine materials of Vibration Separator Machine: AISISUS304 , AISISUS316L, and other material .
8. For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.
9. The vibration sieve often connect with drying machine, such as vibration fluid bed dryer, fluid bed dryer and so on.
10. The vibration sieve also connect with grinding machine such 30B grinding machine to make the big size materials into small pieces.
Vibration Sieve Principle of the structure
ZS series Vibration Screen Machine use upright motor as the source of vibration equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Main Technical Parameter:
Model | capacity | Sieve hole | Power (vibration motor) | Power (common motor) | Vibration frequency | Weight |
ZS-400 | 50-300kg/h | 3-200mesh | 0.18kw | 0.55kw | 1400r/min | 150kg |
ZS-600 | 100-450kg/h | 3-200mesh | 0.25kw | 0.75kw | 1400r/min | 250kg |
ZS-800 | 300-750kg/h | 3-200mesh | 0.55kw | 1.1kw | 1400r/min | 320kg |
ZS-1000 | 400-1100kg/h | 3-200mesh | 1.1kw | 1.5kw | 1400r/min | 400kg |
ZS-1200 | 600-1600kg/h | 3-200mesh | 1.1kw | 1.5kw | 1400r/min | 500kg |
ZS-1500 | 800-1800kg/h | 3-200mesh | 1.5kw | 2.2kw | 1400r/min | 600kg |
ZS-1800 | 1000-2000kg/h | 3-200mesh | 3.0kw | 3.0kw | 1400r/min | 800kg |
ZS-2000 | 1300-2500kg/h | 3-200mesh | 3.0kw | 3.0kw | 1400r/min | 1000kg |
